China peek stick，Peek screw，Sealing ring

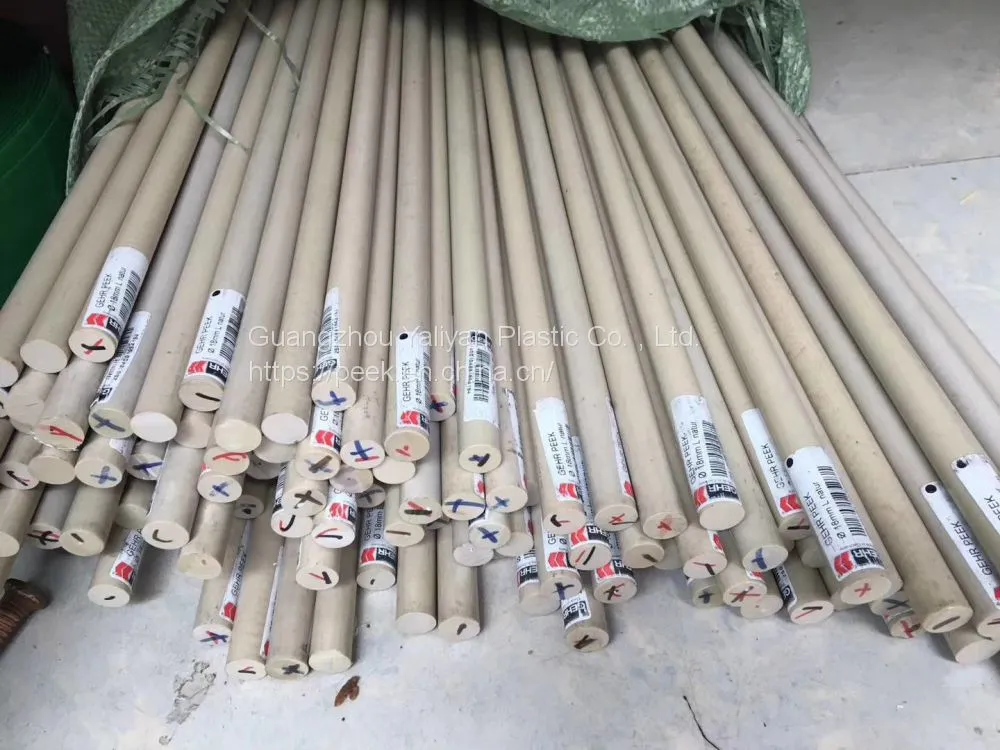

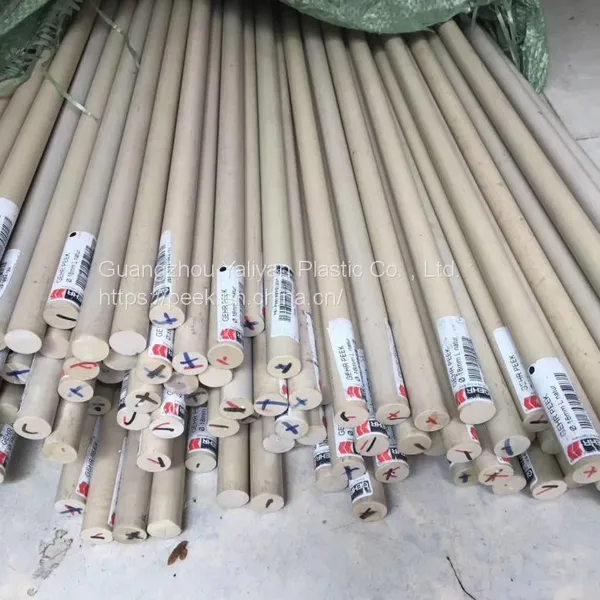

Description of imported peek rod:

Peek is a high temperature resistant and high performance thermoplastic special engineering plastic. It has good mechanical properties, chemical resistance, wear resistance and hydrolysis resistance; It has light specific gravity and good self-lubricating performance. Due to its very good processing performance, it can be filled with carbon fiber and molybdenum disulfide to further improve the lubricating performance and mechanical strength. Peek engineering plastics has broad application space, involving aviation, machinery, electronics, chemical industry, automobile and other high-tech industrial fields. It can manufacture high-demand mechanical parts, such as gear, bearing, piston ring, support ring, sealing ring (letter), valve plate, wear ring, etc. The excellent performance of PEEK materials is mainly reflected in the following aspects:

High temperature resistance

Peek has a high glass transition temperature and melting point (334 ℃), which is one of the reasons why it can be reliably used in applications with heat resistance requirements. The load thermal deformation temperature is up to 316 ℃, and the continuous service temperature is 260 ℃.

mechanical properties

Peek is a plastic with both toughness and rigidity. In particular, its excellent fatigue resistance to alternating stress is outstanding among all plastics and comparable to alloy materials.

Self lubricity

Peek has outstanding sliding characteristics in all plastics and is suitable for applications with strict requirements for low coefficient of friction and friction resistance. In particular, the self-lubricating performance of PEEK modified by carbon fiber and graphite is better.

Chemical resistance (corrosion resistance)

Peek has excellent chemical resistance. In common chemicals, only concentrated sulfuric acid can dissolve or destroy it, and its corrosion resistance is similar to that of nickel steel.

Flame retardancy

Peek is a very stable polymer. A 1.45MM thick sample can reach a high flame retardant standard without any flame retardant.

Peel resistance

Peek has good peel resistance, so it can be made into thin coated wires or electromagnetic wires, and can be used under harsh conditions.

Fatigue resistance

Peek has good fatigue resistance in all resins.

Radiation resistance

Endure γ The irradiation ability is very strong, which exceeds that of polystyrene with good irradiation resistance in general resin. Can be made γ It is a high-performance wire that can maintain good insulation when the irradiation dose reaches 1100mrad.

Hydrolysis resistance

Peek and its composites are not affected by the chemical effects of water and high-pressure water vapor. The products made of this material can still maintain excellent properties when used continuously in high-temperature and high-pressure water.

Application:

Application of mechanical industry

Because peek has the characteristics of high temperature resistance, corrosion resistance, fatigue resistance and friction resistance, peek is widely used in many equipment parts at home and abroad, such as bearings, piston rings and valve plates of reciprocating gas compressors.

Energy and chemical applications

It has excellent properties such as high temperature resistance, high humidity resistance and radiation resistance. It has been widely used in energy industry and chemical industry such as nuclear power plant.

3. The application of electronic information industry in the world is the second largest application field of PEEK, with a consumption of about 25%, especially in the transportation of ultrapure water. Only by using the pipes, valves and pumps made by peek can the ultrapure water not be polluted, which has been widely used abroad.

Aerospace Industrial Applications

Due to the superior comprehensive performance of PEEK, it has been widely used in aerospace products abroad since the 1990s, and has been successfully tried on the products of j-8-ii aircraft and Shenzhou spacecraft at home.

Automotive industry applications

Energy saving, weight reduction and low noise have always been important indicators required by automobile development. Peek's characteristics such as light weight, high mechanical strength, heat resistance and self lubrication just meet the needs of the automobile industry.

Application in medical and health field

In addition to making some precision medical instruments, peek's most important application is that it can replace metal producers to make bone. It has the advantages of light weight, non-toxic and strong corrosion resistance. In addition, peek can also be organically combined with the body. It is a material close to human bone.

Peek is widely used in aerospace, medical, semiconductor, pharmaceutical and food processing industries, such as gas plate splitter components and heat exchanger blades on satellites; Because of its superior friction performance, it has become an ideal material in the field of friction applications, such as sleeve bearing, sliding bearing, valve seat, sealing ring, pump wear ring and so on. Various production line parts, semiconductor liquid crystal manufacturing device parts, inspection device parts, manufacturing fixtures, atomic energy related parts, electronic components, various precision machine parts, food processing line related parts, chemical mechanical equipment related parts, welding machine related parts, gold-plated processing machine related parts, metal surface treatment

Related parts, thermal insulation parts, etc.

application:

Peek general machinery, peek electronic semiconductors, peek petroleum machinery, peek automotive industry, peek instrumentation, peek chemical industry, peek packaging machinery, peek medical devices, peek nuclear industry, peek welding and cutting, peek textile printing and dyeing, peek paper machinery, peek screws, peek ball valve seat, peek bar, peek plate, peek particles, peek gears

Peek high temperature wear-resistant roller thickness gauge peek roller compressor peek sealing valve plate compressor peek sealing valve plate embedded on copper strip peek sliding plate peek bushing peek embedded injection molding wear-resistant disc peek wear-resistant shaft sleeve peek rotary shuttle belt adjusting pulley peek precision parts four piece set peek belt cover fixed shaft pulley gfm-060814-12peek flange shaft sleeve peek heat insulation pad M8 × 15 outer hexagon peek bolt peek-hp V (450fc30) plate peek-450ca30 plate diameter 55mm peek-450ca30 rod diameter 10mm peekgl30 rod peek fine powder toned red peek particles peek450fc30 (including 10% of graphite, PTFE and carbon fiber)

Peek450ca30 (30% carbon fiber reinforced) particle peek450gl30 (30% glass fiber reinforced) particle peek450g (pure PEEK) Particle peek high temperature wear resistant inclined roller peek high temperature wear resistant straight roller peek NC machining parts peek high temperature wear resistant roller peek thin wall conical sleeve peek thin wall conical sleeve peek hand nut peek blade peek wear resistant track strip peek cover peek with knurled shaft rod peek vacuum suction cup peek roller peek wear resistant scraper 6 inch peek ball valve pad peek wear resistant long sleeve peek micropump cover Natural gas ball valve peek valve seat large plate peek seal wear-resistant parts large ball valve high temperature peek seal ring

Peek wear-resistant shaft sleeve peek ball valve sealing ring peek wear-resistant shaft sleeve peek wear-resistant blade automotive peek high temperature wear-resistant shaft sleeve vacuum pump peek sliding plate and joint peek solenoid valve spool peek end face sliding bearing peek wear-resistant sealing ring analytical instrument peek sealing gasket peek heat insulation gasket peek belt flanging shaft sleeve peek sealing ring peek synchronous belt pulley
