Ytx BMS16s 50A 100A 150A 200A Smart Lithium Battery Protection Board With Can RS485 Bluetooh

Overview

Quick Details
Model Number:     16S 50A common port with balance                                   Place of Origin:    Guangdong, China

Brand Name:   YTX                                                                                                       Base Material:      FR4 /aluminum

Surface Finishing:    oxidation                                                                                       same port:         yes
with balance function:         yes                                                                                     short-circuit protection:     yes

Over discharge protection:        yes                                                                               Usage:     Electric vehicle

Application:       electroc scooter                                                                                    Over current protection:        yes

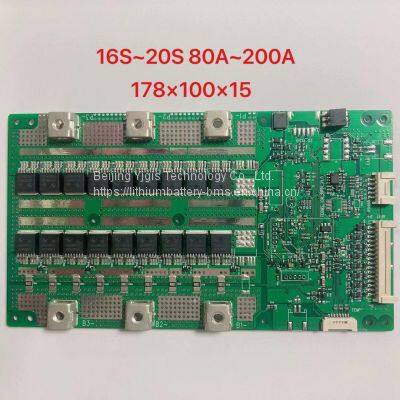

Sample/oem/odm....:Acceptable                                                                                    Size:      178*100*15mm

Product Description
1.YTX  16S 50A/60A/80A/100A/120A/150A/200A bms is used for 16series  battery pack

2.We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.
   We BMS have 3-20s,35A-200A.

3.BMS manufactured by  high quality Mos and IC imported

4.Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.

5.Extreme low power consumption. The consumption of the whole device is less than 50uA.

6.PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.

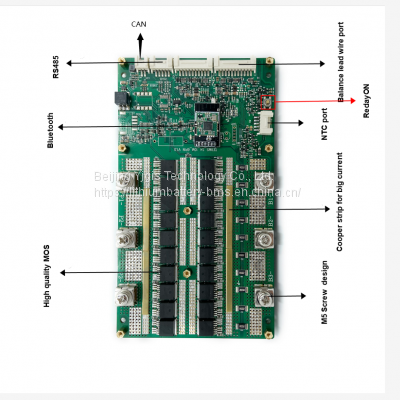

The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection With Bluetooth etc.


Extended function
Pre release function/Isolated communication/Battery heating function etc.
