Armorcast Structural Material 4560 Sheath Repair Armor bandage for Cable Protect

Armorcast Structural Material 4560 Sheath Repair Armor bandage for Cable Protect

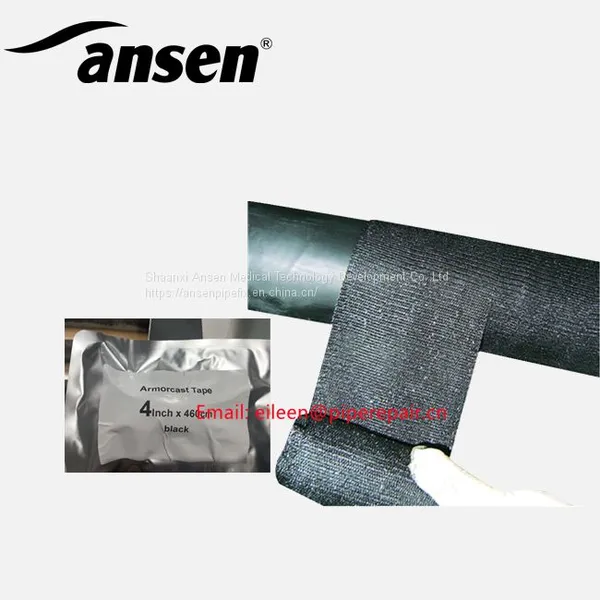

ANSEN Armorcast Structural Material is packed (rolls) dry in a sealed foil envelope and is a flexible fiberglass knit fabric strip that has been saturated with a curable black urethane resin syrup that starts to cure when water is added.

Once wet, the fiber strip becomes tacky and sticks to itself, so it wraps easily around almost any shape or size.

Armorcast Structural Material is resistant to moisture, fungus, alkali, ozone, sunlight, gasoline and high temperatures. It combines long life and very little maintenance.

Features & Benefits

* No tools or power source needed;

* Can be used for sheath repair or to strengthen existing old cables or splices;

* Armorcast is resistant to moisture, fungus, alkali, ozone,sunlight, gasoline and high temperatures;

* Eliminates cost of tools and searching for electricity; just add water;

* Less expensive option than replacing an entire closure and less time needed in the field to install product;

* Long life and very little maintenance; low cost of ownership.

Armorcast Structural Material 4560 Sheath Repair Armor bandage for Cable Protect

Specification

Armorcast Structural Material 4560 Sheath Repair Armor bandage for Cable Protect

Armorcast Structural Material package

ANSEN Armorcast Structural Material is packed (rolls) dry in a sealed foil envelope

1. Print your brand on the package

2. Make your brand on the label and stick to the package.

10 bags packed in an Inner Box,and 10 boxes packed in a carton 10bags/box, 10boxes/ctn.

Armorcast Structural Material 4560 Sheath Repair Armor bandage for Cable Protect

Size

Armorcast Structural Material 4560 Sheath Repair Armor bandage for Cable Protect

Application

1. Prepare the surface by cleaning and roughening the cable.

2. Put on enclosed latex gloves.

3. Open foil pouch and immerse bandage in temperate fresh water for 10 seconds.

   The entire contents must be used once the package is opened.

4. Apply around the cable extending up to 50mm either side of the cable to ensure complete coverage.    It is important that the bandage is applied.

5. quickly as curing begins once it is taken out of the water.

6. Whilst wrapping, pull each layer tightly by using your hand to mould and squeeze the layers together.

  Continue this action during and upon completion.

Armorcast Structural Material 4560 Sheath Repair Armor bandage for Cable Protect
