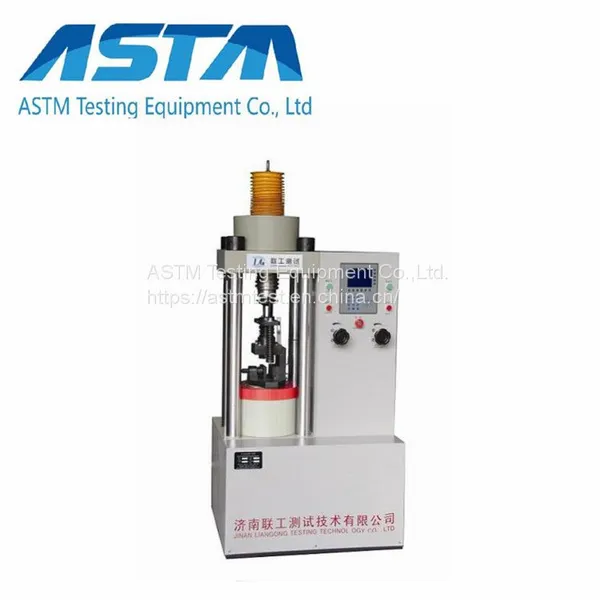

China Factory Supply DWTT Usage DWTT Specimen Gap Sampling Machine TLC-200T

Usage and Characteristics

1.This machine is a kind of specialized equipment with the advanced domestic technology level,which was based on the actual needs of customers in accordance with the GB8363-87 of the gap.

2.With the hydraulic loading, this machine can form a gap once and also can run steadily when making the specimen gap. It uses single-chip controlled technology, the operation is simple and can control accurately. The press sword has a long service life, every knife can make thousands of samples.

Main technical parameters

Max. pressure load: 2000KN

Height of compressive space: 360mm

Angle of opening: 45°±2°

Depth of opening: 5±0.5mm

Bottom of opening R: 0.025-0.023+0.013mm

Load mode: hydraulic pressure to load

Power: three-phase line five 380V 50Hz 3KW
