All Hydraulic Pipeline Welding Support Equipment Pipeline Crawler Paywelder Welding Tractor for Gas Pipeline Construction Use

Luoyang Deping Technology Co., Ltd Business license
All Hydraulic Pipeline Welding Support Equipment Pipeline Crawler Paywelder Welding Tractor for Gas Pipeline Construction Use thumbnail-1
All Hydraulic Pipeline Welding Support Equipment Pipeline Crawler Paywelder Welding Tractor for Gas Pipeline Construction Use thumbnail-2
All Hydraulic Pipeline Welding Support Equipment Pipeline Crawler Paywelder Welding Tractor for Gas Pipeline Construction Use thumbnail-3
All Hydraulic Pipeline Welding Support Equipment Pipeline Crawler Paywelder Welding Tractor for Gas Pipeline Construction Use thumbnail-4
All Hydraulic Pipeline Welding Support Equipment Pipeline Crawler Paywelder Welding Tractor for Gas Pipeline Construction Use thumbnail-5
All Hydraulic Pipeline Welding Support Equipment Pipeline Crawler Paywelder Welding Tractor for Gas Pipeline Construction Use photo-1
All Hydraulic Pipeline Welding Support Equipment Pipeline Crawler Paywelder Welding Tractor for Gas Pipeline Construction Use photo-2
All Hydraulic Pipeline Welding Support Equipment Pipeline Crawler Paywelder Welding Tractor for Gas Pipeline Construction Use photo-3
All Hydraulic Pipeline Welding Support Equipment Pipeline Crawler Paywelder Welding Tractor for Gas Pipeline Construction Use photo-4
All Hydraulic Pipeline Welding Support Equipment Pipeline Crawler Paywelder Welding Tractor for Gas Pipeline Construction Use photo-5
US$ 5000 - 180000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DEPING
Place of Origin:
China
Model Number:
DPHP-Z100
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao/shanghai/shenzhen/tianjin
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DEPING
Place of Origin China
Model Number DPHP-Z100
Certification CE/ISO
Type Pipe Welding Machine
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 11200kg
Dimension(L*W*H) 6190x3000x3222mm
Production Capacity 125KVA
Condition New
Voltage 380v
Application Energy Supply Pipe
Power(W) 158kw
Pipe Material Carbon Steel

WHO WE ARE:

Established in Year 2005, as an ISO9001/IS014000/OHSAS18001 accredited company and high-tech enterprise, Luoyang Deping Technology Co., Ltd (DP pipe machine) is specialized in manufacturing pipeline construction equipment and providing automatic welding solution onshore & offshore.
Our products comply with European Union safety regulations (CE) and have been supplied to more than 40 countries around the world
Customized machine services are available as per client’s specific requirement

Membership:
IPLOCA member (International Pipe Line & Offshore Contractors Association)

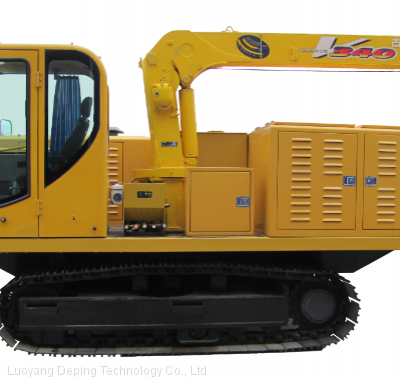

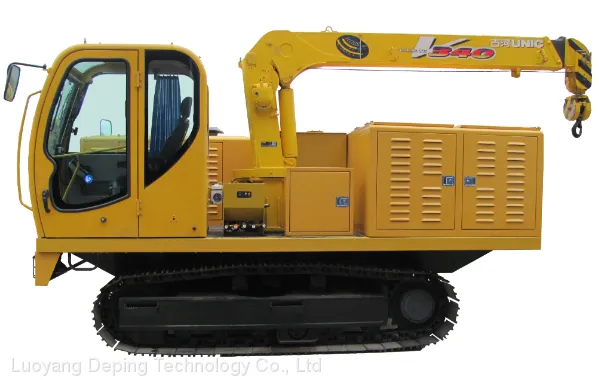

DPHP-100Z PAYWELDER

Our pay welder and other products have obtained CE certificates, which are issued by SGS, an internationally recognized certification company. The products meet the EU's technical safety standards, and are allowed to sale in the European Union market.

Direct connection mechanism of engine, generator and hydraulic pump, Patent design of DEPING ltd. (pn:ZL201020151740.2), which maximizes the power of the engine and reduces the failure in the same time.ngine Cummins Engine; Generator: Faraday, Hydraulic pump: Oil Research

MAIN FEATURES OF PAYWELDER

Chassis:

We adopts the standard chassis of the 10T excavator. The supplier also provide chassis to Zoomlion and Sany Heavy, the first-class brand in China

Hydraulic system

All the hydraulic parts are purchased from international first class company, for example pump from YUKEN(Japan); motor from
NABTESTCO(Japan), hydraulic hose and fittings from GATES(USA), hydraulic multichannel conversion valve from PARKER(USA). All these
first-class parts can ensure no leakage for the whole machine and smoothly operation.
Electric circuit and electric control cabinet
All electrical components are selected by SIEMENS (Germany), ABB (USA) or Schneider (Germany). The design and installation of the
line is based on military standard, and the whole machine failure is almost zero.
Covering parts
Stamp molding of 2.5 mm cold rolled steel plate, which can improve strong rigidity and corrosion resistance of the whole machine.
We adopt special paint for the covering part.
Easy to transport
Our unique embedded hook design makes it easier to load. Any crane with 10 tons capacity can load our pay-welder easily.
The outer width of the track is 2300mm, which is suitable for the transportation of various types of vehicles.
Flexible driving
Referring to the hydraulic drive design of Komatsu KOMATSU excavator, our paywelder can make minor move, which ensures safety during loading and operating in narrow space.

Product certification（CE, EAC for Russia）


PRODUCT SPECIFICATIONS
TYPE
DPHP-80
DPHP-100
DPHP-Z100
WEIGHT
10300KG
10300KG
11200KG
SIZE
5405X2470X3005mm
5405X2470X3005mm
6190X3000X3222mm
ENGINE
TYPE
QSB5.9-C170
QSB5.9-C180
QSB6.7-C215(QSC8.3-C215)
POWER
125KW
133KW
158KW
ROTATION
1500/2000RPM
1500/2000RPM
1500/2000RPM(2200RPM)
GENERATOR
TYPE
FD3A-4
FD3C-4
FD3C-4
RATES POWER
80KW
100KW
100KW
RATED CAPACITY
100KVA
125KVA
125KVA
OUTPUT POWER
3 PHASE/380V
3 PHASE/380V
3 PHASE/380V
OPERATING SYSTEM
TRAVELING
INDOOR HAND AND FOOT SYNCHRONOUS OPERATION LEVER
INDOOR HAND AND FOOT SYNCHRONOUS OPERATION LEVER
INDOOR HAND AND FOOT SYNCHRONOUS OPERATION LEVER
GENERATING
INDOOR POSITIONING CONTROL
INDOOR POSITIONING CONTROL
INDOOR POSITIONING CONTROL
LIFTING
OUTSIDE OPERATING LEVER
OUTSIDE OPERATING LEVER
OUTSIDE OPERATING LEVER
WALKING SYSTEM
TRAVEL SPEED(FORWARD/REVERSE)
2.8/4.6KM/H, DOUBLE SPEED, INFINITELY VARIABLE SPEED 2.8-4.6/H
2.8/4.6KM/H, DOUBLE SPEED, INFINITELY VARIABLE SPEED 2.8-4.6/H
2.8/4.6KM/H, DOUBLE SPEED, INFINITELY VARIABLE SPEED 2.8-4.6/H
GRADE CAPACITY
30°
30°
30°
GROUND PRESSURE
45KPA
45KPA
39KPA
PRESSURE FL UX
28MPA/180L/MIN
28MPA/180L/MIN
28MPA/180L/MIN
CHASSIS
MIN GROUND CLEARANCE
439MM
439MM
439MM
TRACK SHOE WIDTH
600MM
600MM
600MM
LIFTING EQUIPMENT
MAX LIDTING WEIGHT
3200KG
3200KG
5580KG
LIFTING RADIUS
2000-5320MM
2000-5320MM
8000MM
PRESSURE FLUX
20.6MPA/25L/MIN
20.6MPA/25L/MIN
31.5MPA/30-45L/MIN
TYPE
360 ROTATION TELESCOPIC BOOM
360 ROTATION TELESCOPIC BOOM
400 KUNCKLE BOOM

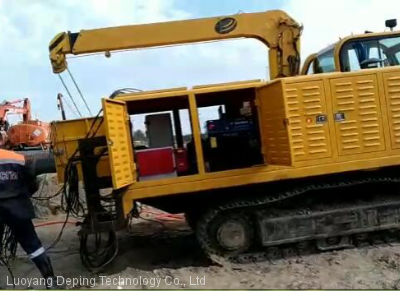

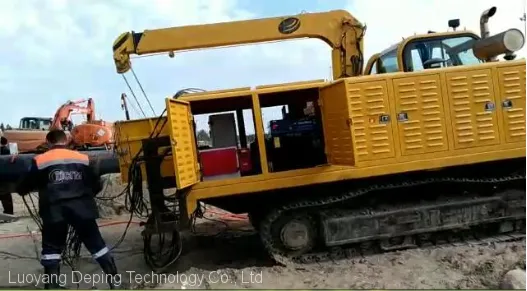

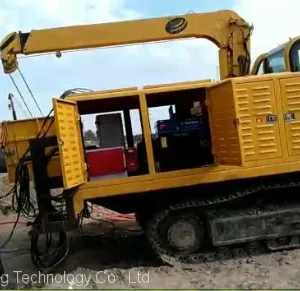

Successful Project
