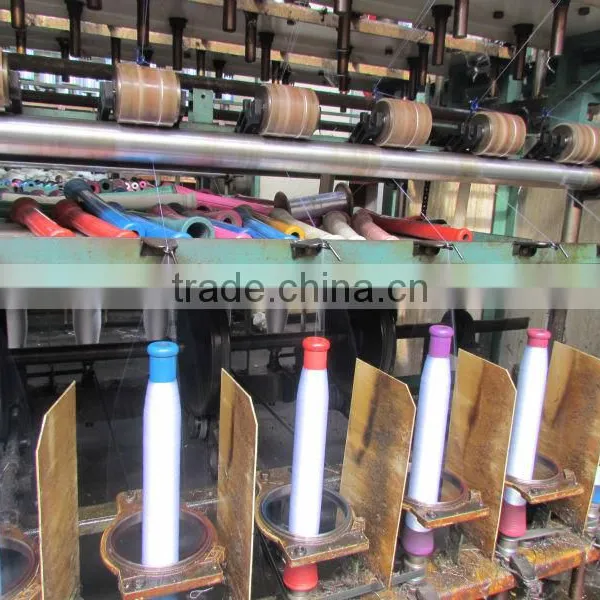

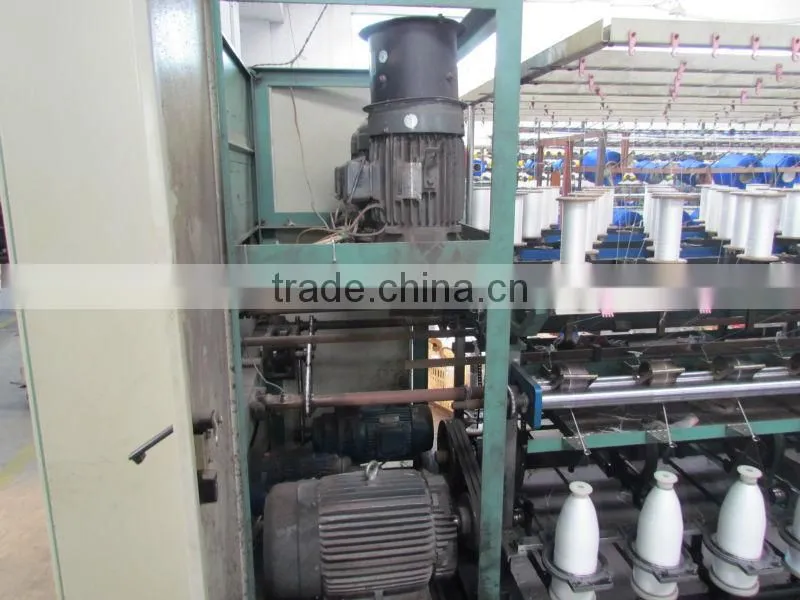

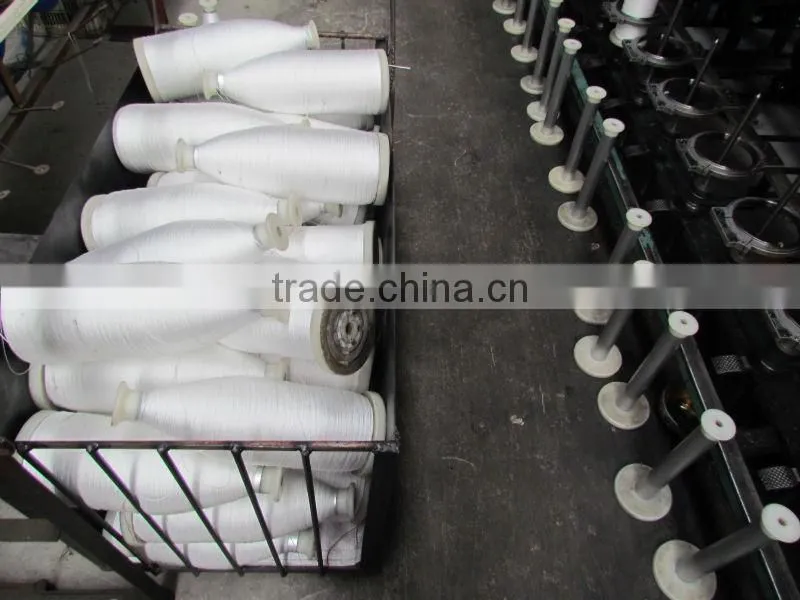

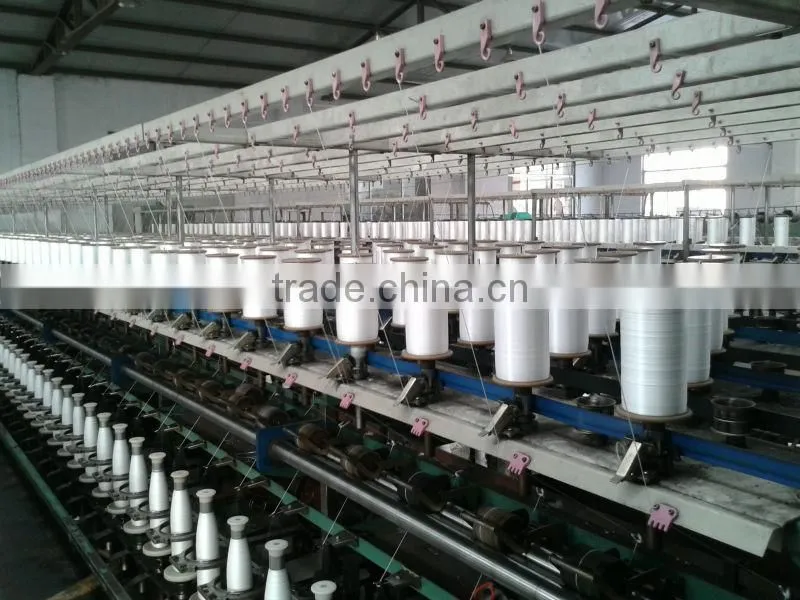

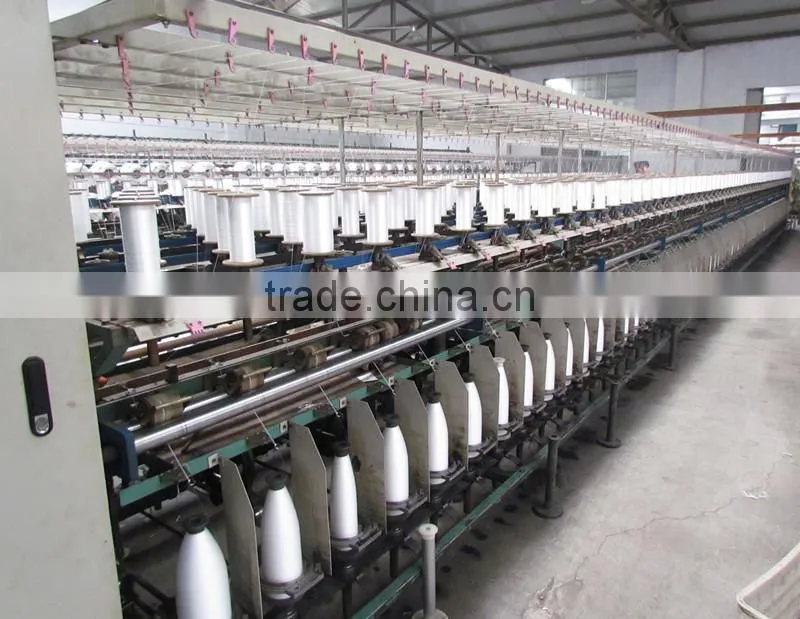

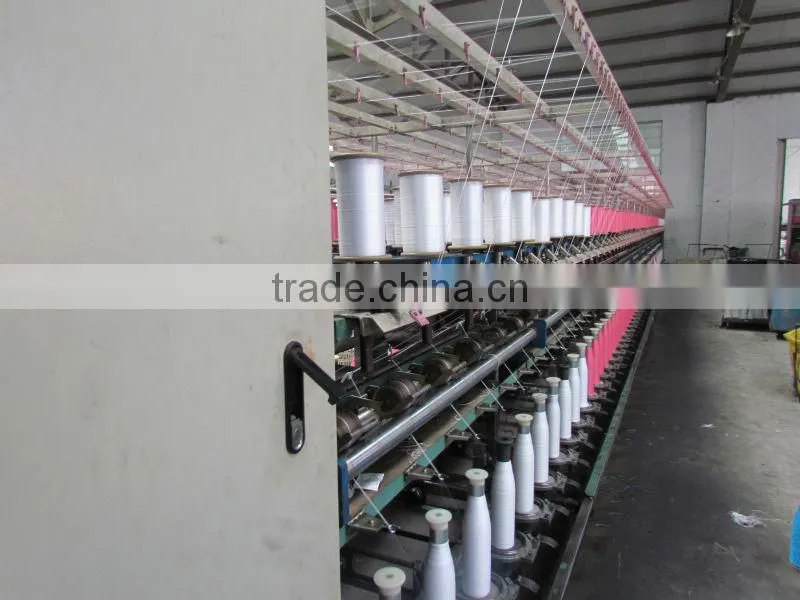

high quality high Speed Compound twine twisting machine
Specification:
Type |
Double-faced double-deck dragon |
Spindle speed |
3000-10000RPM(according to different yarn) |
|
Number of spindles |
420 pounds (upper) 140pounds(lower) |
Twist range |
60-1000 twist per meter |
|
360 pounds (upper) 180 pounds(lower) |
Twist |
Computer control filament twist is S to Z could be |
Spindles pitch |
162mm |
|
Computer control filament twist is Z to S could be |
The inner diameter of steel |
98mm/115mm/140mm |
Forming mode |
Computer control of molding |
Doublings |
2-3roots |
Motor power |
The main motor 12.6kw,guide roller motor 2.2kw |
Max roll weight |
1000-1200grams(according to different yarn) |
Machine size |
16800*1000*1900mm |
|
|
The whole machine weight |
5.5tons |
This machine is applicable to twist chemical fiber yarns, such as polyester, nylon,pp, and other blended chemical fiber yarns.
Welcome to Junchi ! Welcome to China!
