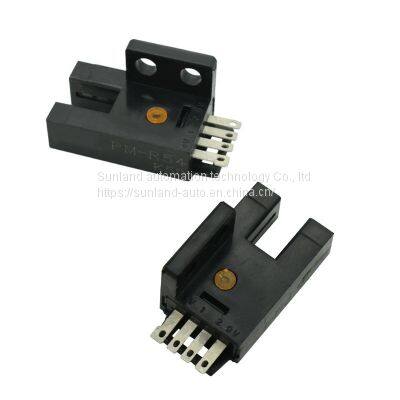

Micro Optic Sensor 5mm Slot Ee-sx670-wr1/2/3/567t Y44 Compatible Goods, Plug/PIN Models
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Sunland
Place of Origin:
China
Model Number:
U series
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1M/2M Cable Compact Size Micro U-shaped Sensor PM-T45 PM-Y45 K45 L45 L25 U25 R45 F45 F25 Compatible GoodsNegotiableMOQ: 1 Piece -
1M/2M Length Female Cabel EE-1001 U-shaped Sensor PIN CableNegotiableMOQ: 1 Piece
-
Full Series U-shaped Optic Sensor Offered, Photocell Compact Size, Fork SensorNegotiableMOQ: 1 Piece
-
EE-SX670 670P Compatible Model Fork Optic Sensor With Connector PINSNegotiableMOQ: 1 Piece
-
EE-SX671 671P Compatible Goods DC Motion Sensor Position Limited SensorNegotiableMOQ: 1 Piece
Brand Name
Sunland
Place of Origin
China
Model Number
U series
Usage
Position Sensor
Theory
Optical Sensor
Output
Switching Transducer
U shape sensors

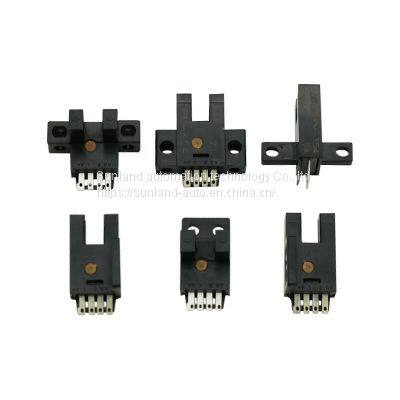

U300 series U shape sensors, 5mm or else slot width, it has different install way to choice, NC.NO together in one sensor, and we can do the connector type that with 150mm pre-cable, it's universal sensor for label, hole, line and so on for detection, we also can customize for customer.
| Emitting light | RedLED：630nm |
| Operating voltage | DC:10～30VDC±10%(Ripple P-P:10%Max) |
| Current consumption | 15mA Max |
| Load current | 100mA Max at DC 24V |
| Output type | N=NPN.NO P=PNP.NPN |
| Protection circuit | Reversed supply ciruit protection,short citcuit protection output |
| Response time | 0.3 ms Max |
| Insulation resistance | 20M Ωmin.(DC500V) |
| Voltage withstandatility | AC1000V 60Hz for 60 Sec |
| Operating temperature | -10°C～+45°C(No freezing allowed ) |
| Ambient hunidity | 35%~95%RH |
| Storage temperarure | -10°C～+55°C(No freezing allowed ) |
| Storage hunidity | 35%~95%RH |
| Material | ABS |
| Wiring method | φ2.6×2M/4-wires, φ4.2×2M/3-wires, φ4.2×2M/4-wires |
| Protection degree | IP64 |
| Weight | Approx.18.5g |
