Home > Electrical & Electronics > Transmitter > Pressure Transmitter > 3051Intelligent Differential Pressure Transmitter24VDC 4-20mA/HART 1/4NPT

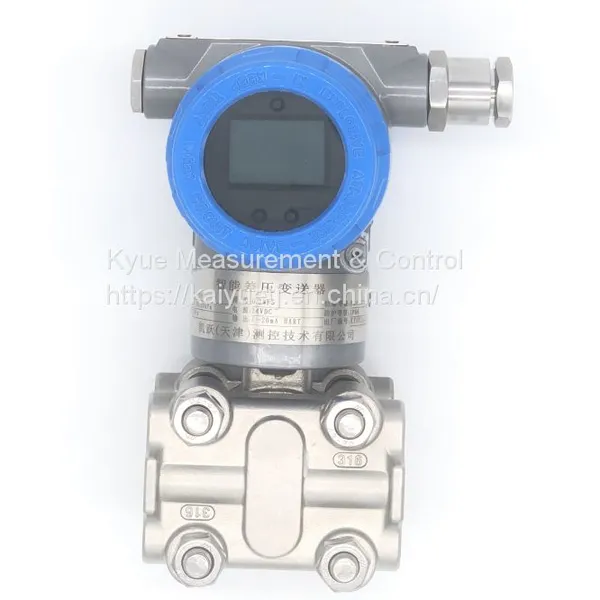

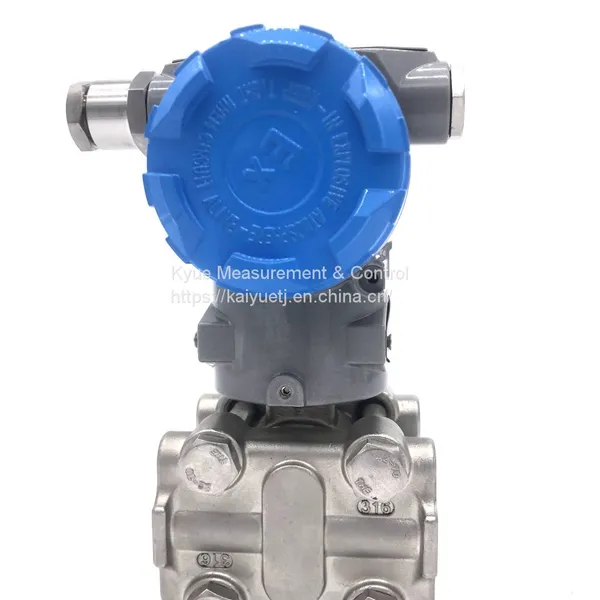

3051Intelligent Differential Pressure Transmitter24VDC 4-20mA/HART 1/4NPT
US$ 335 - 355
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
kyue
Place of Origin:
China
Model Number:
ky300DP
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
15 days
Related Products
-
Standard Economical Pressure Transmitter Hart/RS485 4-20mA 2/3/4wire B/R/S/N/K/J/E ThermocoupleUS$ 50 - 65MOQ: 10 Pieces -
Standard Economical Pressure Transmitter 12-36VDC 4-20mA M20*1.5US$ 85 - 105MOQ: 10 Pieces
-
Special Hydraulic Pressure Transmitter 12-36VDC 4-20mA G1/4US$ 80 - 100MOQ: 10 Pieces
-
Special Hydraulic Pressure Transmitter 12-36VDC 4-20mA G1/4US$ 75 - 95MOQ: 10 Pieces
-
Cable Type Pressure Transmitter 12-36VDC 1/2NPT 4-20mA&customizedUS$ 195 - 215MOQ: 10 Pieces
Brand Name
kyue
Place of Origin
China
Model Number
ky300DP
| 3051Intelligent differential pressure transmitter | ky300DP |
| Measuring medium | Liquid and gas are non corrosive |
| Range | ‘-0.01-0-70Mpa |
| Overload pressure | 150% |
| Accuracy | 0.1%FS，0.2%FS，0.075%FS |
| Failure pressure | 300% |
| Response time | ≤10ms |
| Service temperature | ‘-20～125℃ |
| Waterproof grade | IP66 |
| Power | 24VDC |
| Output | 4-20mA/HART |
| Process interface | 1/4NPT |
The KY300DP series differential pressure transmitter uses single crystal silicon resonant sensor technology for measuring the flow, level, density and pressure of liquid, gas or steam.The KY300 differential pressure transmitter is a transmitter that measures the pressure difference at both ends of the transmitter, with a product accuracy of 0.075%. The measured differential pressure can be converted into a 4~20mA DC current signal output, which can measure, display or remotely monitor the static pressure, with the functions of rapid response, remote setting, self-diagnosis, etc.
