Split-Core Current Transformer SCT036TS

Shaanxi Fullstar Electronics Co., Ltd.
Split-Core Current Transformer SCT036TS thumbnail-1
Split-Core Current Transformer SCT036TS thumbnail-2
Split-Core Current Transformer SCT036TS thumbnail-3
Split-Core Current Transformer SCT036TS thumbnail-4
Split-Core Current Transformer SCT036TS thumbnail-5
Split-Core Current Transformer SCT036TS photo-1
Split-Core Current Transformer SCT036TS photo-2

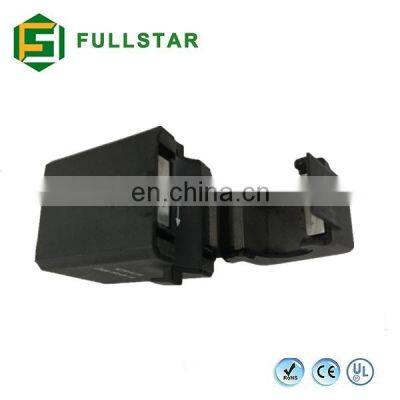

Split-Core Current Transformer SCT036TS photo-3

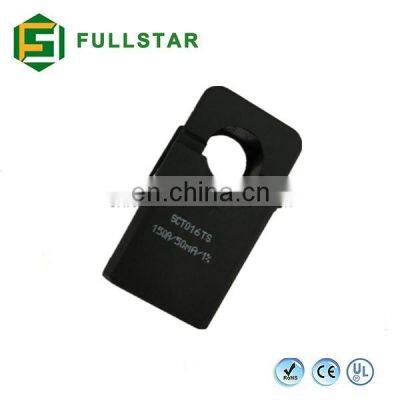

Split-Core Current Transformer SCT036TS photo-4
Split-Core Current Transformer SCT036TS photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Basic Info

·         Model NO.: SCT016

·         Type: Split Core Current Sensor

·         Operation Condition: Indoor

·         Winding Form: Multilayer Honeycomb Type

·         Installation: Active Type

·         Voltage Transformation Principle: Capacitive Type

·         Window Size: 16mm

·         Rated Output Current: 0.333VAC ,Mv or Ma

·         Package: Outer Carton with Smaller Inner Box

·         Origin: China

·         Application: Electronic, Instrument, Position Sensor, Audio, Lighting

·         Phase: Single

·         Usage: Measurement

·         Insulating Medium: Insulating Paper

·         Magnetic Circuit Structure: Single Stage Type

·         Model: Split Core Current Sensor SCT016

·         Rated Input Current: 0-100A

·         Trademark: SHAANXI FULLSTAR

·         Specification: CE, UL, ROHS, ISO9001: 2008

·         HS Code: 85045000



Product Description

Split Core AC Current Transformer SCT016

φ16mm Opening With 50 To 120 Amp Rating



Description:

SHAANXI FULLSTAR SCT016 Series split-core current transformer AC current from 50 to 120 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Features:
Maximum continuous primary current 120 A AC
Output: mA or 0.333 Volt at rated current
Current Ratio: 500:1,1000:1,2000:1,2500:1,3000: 1
Maximum Primary Voltage: 5000Vac(Insulated Conductor)
Phase angle: Less than 1.5 degrees at rated current
Frequency Range: 50 Hz to 400 Hz
Accuracy: ± 1% from 5% to 120% of rated current
Operating Temperature: -15 Cto 60 C.
Insulation Voltage: 600Vac
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
CE ,ETL recognized, and RoHS compliant
Output and leads can be customized


Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC



Model

Input(A)

Max currnet(A)

Output

SCT016

0.2-100A AC

120A AC

mA/0.333VAC
  /0-3 VAC



Our Services

 Split-Core Current Transformer SCT036TS

Company Information



SHAANXI FULLSTAR ELECTRONICS CO.,LTD is specialized in electronics and magnetic  components .


The main products are SMD power inductors, SMD common mode inductors, RF transformer, Planar transformer, LAN transformer, High-frequency transformer, Low-frequency encapsulated transformer, SMD transformers and current sensors. We also do ferrite cores, bobbins, iron power cores, amorphous cores , sendust cores, etc., accessories. The products are exported to more than 40 countries and regions.


Our factories have 20 years' experience in electronics field and the annual volume is above 200,000,000 pieces. We are ISO9001:2008 certified company.

Our operating policy is “Quality comes first, customer foremost”.




Engaging , learning and mastering advanced technology , Fullstar excellent team provides high quality products , quick delivery , strong technical support & best service and would help our customers achieve the maximum value .
