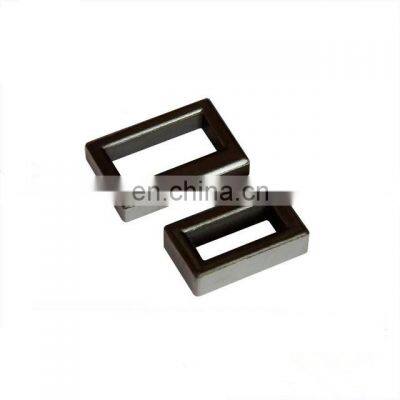

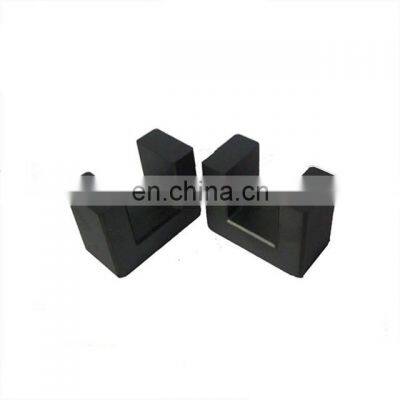

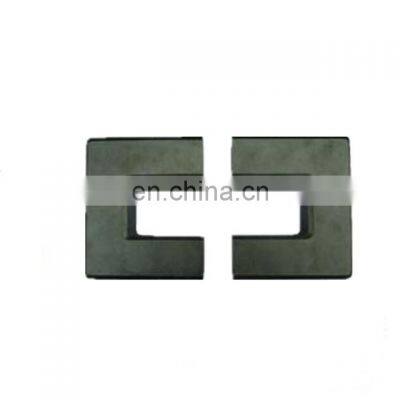

Help CenterU Shape UI Ferrite Core 2300ui
Related Products
-
Magnetic Large Size r Ferrite Core UI Core for TransformerNegotiableMOQ: 1 -
Customized Red Iron Powder Toroidal Core -52NegotiableMOQ: 1
-
High Current Soft Iron Core Rod Core For InductorNegotiableMOQ: 1
-
P36/22 Mn-Zn POT Ferrite Core Pot Transformer Core For POT Core InductorNegotiableMOQ: 1
-
Uu30 Core uf Ferrite MNZN CORENegotiableMOQ: 1
Material: Mn-Zn -- P40 / P20 / H5K / H7K / H10K / H12K / H15K
| TYPE | Dimension(m m ) | ||||||
| A | B m in | C | D | E | F | ||
| U F 9 .8 | 9 .8 ± 0 .3 | 4 .1 | 2 .8 ± 0 .2 | 2 .7 ± 0 .2 | 4 .2 ± 0 .2 | 7 .1 ± 0 .2 | |
| U F 1 0 .5 | 1 0 .5 ± 0 .3 | 5 .2 | 2 .5 ± 0 .2 | 5 .0 ± 0 .2 | 5 .3 5 ± 0 .2 | 7 .8 5 ± 0 .2 5 | |
| U F 1 5 | 1 5 .0 ± 0 .4 | 5 .4 | 4 .6 ± 0 .2 | 6 .4 ± 0 .2 | 6 .5 ± 0 .2 | 1 1 .4 ± 0 .3 | |
| U F 1 5 .2 | 1 5 .2 ± 0 .4 | 5 .0 | 5 .0 ± 0 .2 | 6 .5 ± 0 .2 5 | 6 .0 ± 0 .3 | 1 1 .2 ± 0 .4 | |
| U F 1 5 .7 | 1 5 .7 ± 0 .4 | 6 .7 | 4 .5 ± 0 .2 | 6 .0 ± 0 .2 | 6 .0 ± 0 .3 | 9 .7 ± 0 .2 5 | |
| U F 1 6 | 1 6 .0 ± 0 .4 | 6 .8 | 4 .5 ± 0 .2 | 5 .9 ± 0 .2 | 6 .0 ± 0 .2 | 1 0 .0 ± 0 .3 | |
| U F 1 7 | 1 7 .0 ± 0 .4 | 6 .1 | 4 .5 ± 0 .2 | 6 .0 ± 0 .2 | 1 1 .8 ± 0 .3 | 1 5 .5 ± 0 .3 | |
| U F 1 9 | 1 9 .7 ± 0 .4 | 7 .4 | 6 .0 ± 0 .2 | 6 .0 ± 0 .2 | 1 1 .7 ± 0 .3 | 1 7 .7 ± 0 .3 | |
| U F 2 5 | 2 5 .4 ± 0 .5 | 1 2 .4 | 6 .3 5 ± 0 .2 5 | 6 .3 5 ± 0 .2 5 | 9 .6 5 ± 0 .2 | 1 6 .0 ± 0 .3 | |
| U F 3 0 | 3 0 .0 ± 0 .5 | 1 7 .3 | 6 .1 ± 0 .2 | 6 .2 5 ± 0 .1 5 | 6 .2 ± 0 .2 5 | 1 2 .7 ± 0 .1 5 | |
| U F 3 3 | 3 3 .0 ± 0 .5 | 1 8 .0 | 7 .2 ± 0 .2 | 7 .2 ± 0 .2 | 6 .2 ± 0 .2 5 |
1 3 .8 ± 0 .1 5 |
|
HAANXI FULLSTAR ELECTRONICS CO.,LTD is specialized in electronics and magnetic components .
The main products are SMD power inductors, SMD common mode inductors, RF transformer, Planar transformer, LAN transformer, High-frequency transformer, Low-frequency encapsulated transformer, SMD transformers and current sensors. We also do ferrite cores, bobbins, iron power cores, amorphous cores , sendust cores, etc., accessories. The products are exported to more than 40 countries and regions.
FAQ:
Are you a factory or trading company?
Wa are factory.
How can I get some samples?
(1).We are pleased to offer you samples. New clients are expected to pay for the courier cost and samples free, this charge will be deducted form the payment for formal order.
(2).Regarding the courier cost:you can arrange a RPI(remote-up)service upon Fedex,UPS,DHL,TNT,etc.to havethe samples collected;or inform us your collection account. Then you can pay the freight direct to your local carrier company.
Can you accept OEM?
Yes, we can do OEM products as your requst.
Can I put my own logo on the paoducts?
Yes, it's ok.
What's the lead time for mass order?
In general, it is about 20 to 30 days according to your order qty.
