EI Core Soft Magnetic Mn-Zn Ferrite Core for Transformer

EI Core Soft Magnetic Mn-Zn Ferrite Core for Transformer thumbnail-1
EI Core Soft Magnetic Mn-Zn Ferrite Core for Transformer thumbnail-2
EI Core Soft Magnetic Mn-Zn Ferrite Core for Transformer thumbnail-3
EI Core Soft Magnetic Mn-Zn Ferrite Core for Transformer thumbnail-4
EI Core Soft Magnetic Mn-Zn Ferrite Core for Transformer thumbnail-5
EI Core Soft Magnetic Mn-Zn Ferrite Core for Transformer photo-1

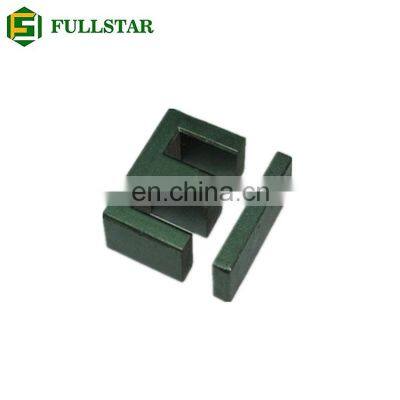

EI Core Soft Magnetic Mn-Zn Ferrite Core for Transformer photo-2

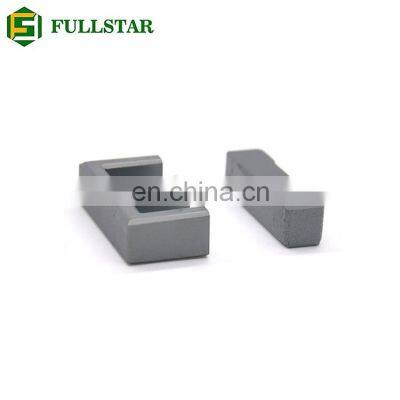

EI Core Soft Magnetic Mn-Zn Ferrite Core for Transformer photo-3

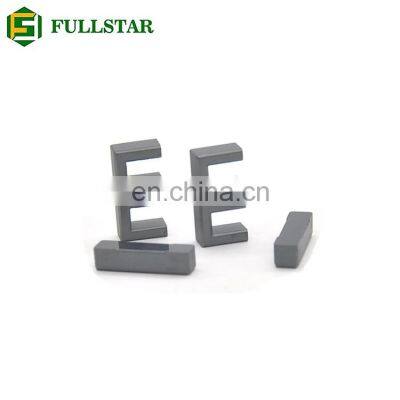

EI Core Soft Magnetic Mn-Zn Ferrite Core for Transformer photo-4
EI Core Soft Magnetic Mn-Zn Ferrite Core for Transformer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Shaanxi Fullstar Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

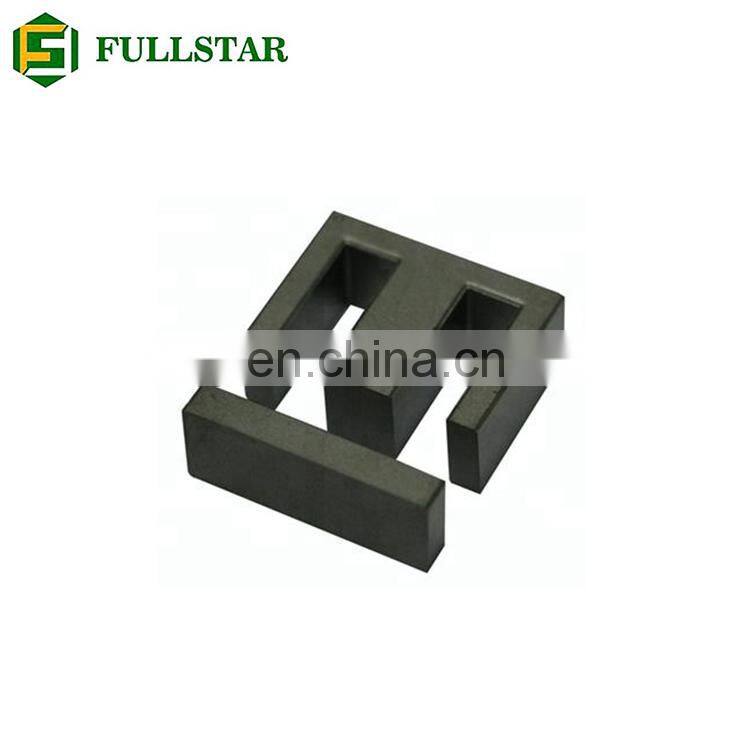

 EI core soft magnetic Mn-Zn ferrite core for transformer

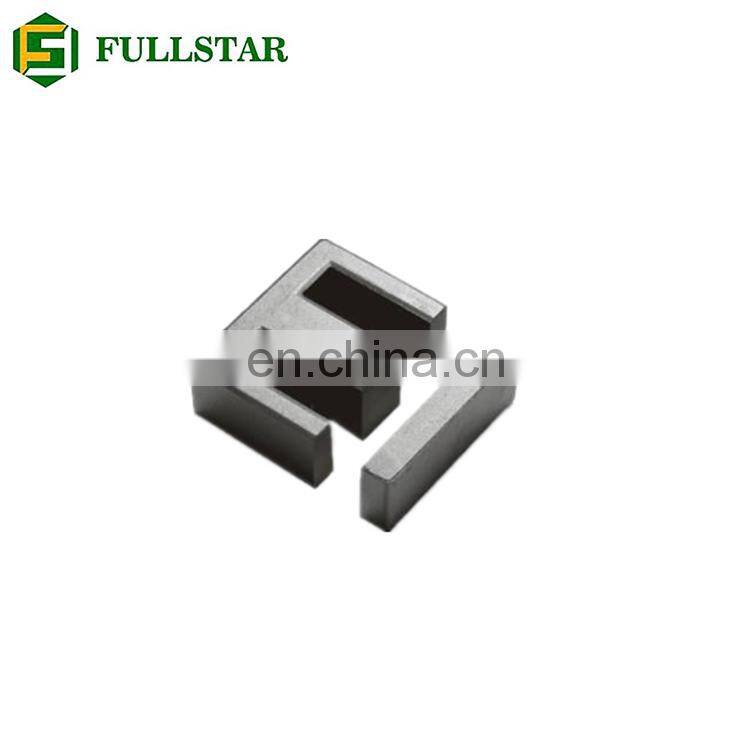

EI core soft magnetic Mn-Zn ferrite core for transformer

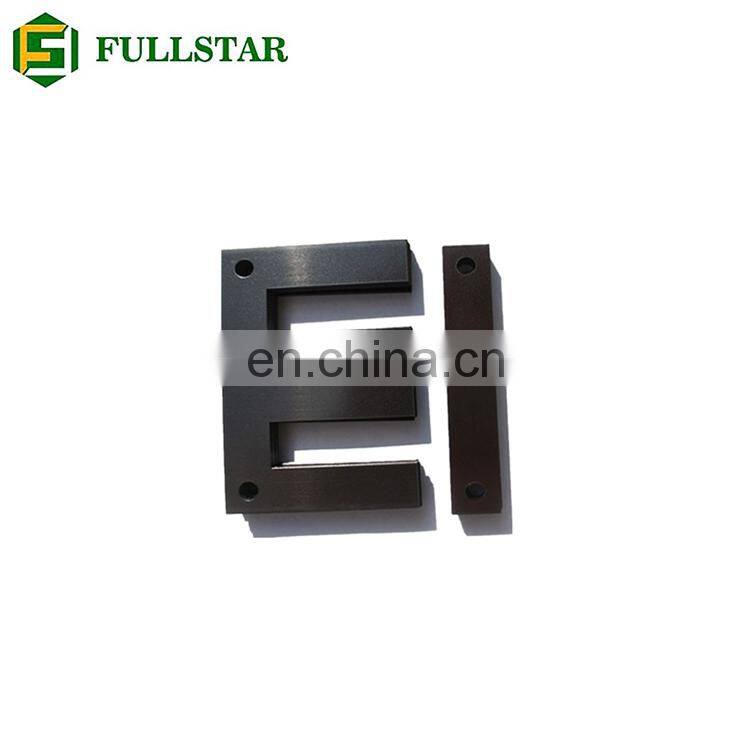

EI core soft magnetic Mn-Zn ferrite core for transformer

EI core soft magnetic Mn-Zn ferrite core for transformer

EI core soft magnetic Mn-Zn ferrite core for transformer

                                         Dimension(mm)

TYPE       A            Bmin        C           D            E           F           I

EI16    16.1±0.3     12.5          3.0±0.2   9.0±0.2    5.0±0.2   6.5±0.2   1.5±0.1

EI19    19.2±0.4     14.0          4.8±0.3   4.6±0.3   11.3±0.3  13.6±0.3   2.4±0.3

EI22B   19.2±0.4     15.6         5.7±0.3   5.7±0.3   11.0±0.3  15.0±0.3   4.0±0.3

EI22A   22.0±0.6     15.6        5.7±0.3   5.7±0.3   10.5±0.3  14.5±0.3   4.0±0.3

EI25    25.4±0.5     18.6          6.3±0.3   6.3±0.3   12.8±0.3  15.8±0.3   3.0±0.3

EI25A   25.4±0.5     18.6         6.6±0.3   6.6±0.3   13.2±0.3  16.5±0.3   3.5±0.3

EI28A   28.0±0.6     18.6         7.2±0.3  10.7±0.3   12.8±0.3  17.5±0.3   3.5±0.3

EI28B   28.0±0.6     18.6         7.2±0.3  10.7±0.3   12.8±0.3  16.6±0.3   4.0±0.3

EI33    33.0±0.6     23.5         9.7±0.3  12.7±0.3   19.3±0.3  23.8±0.3   5.0±0.3

EI40    40.0±0.7     26.8          11.8±0.3  11.8±0.3   20.9±0.3  27.8±0.3   7.0±0.3

EI40B   40.0±0.7     26.8         11.7±0.3  11.7±0.3   21.3±0.3  27.3±0.3   6.5±0.3

EI50    50.0±1.0     34.0          14.6±0.4  14.6±0.4   24.7±0.3  33.3±0.3   9.0±0.3

EI50    50.0±1.0     34.0          14.6±0.4  14.6±0.4   24.7±0.3  33.3±0.3   9.0±0.3

EI70    70.0±1.5     53.8          19.5±0.5  19.5±0.5   35.5±0.5  45.5±0.5  10.5±0.5




Providing with quality and standard customer-made electronic and passive components ferrite core and solution products, Fullstar Electronics is a leading ferrite core manufacturer and supplier in China. welcome to wholesale electronics magnetic ferrite cores, ee ferrite cores, ei type ferite cores, etd type ferite cores, ed type ferite cores, er type ferite cores, planar transformer cores from our factory.



Soft magnetic ferrite core are widely used in computers, tele-communication equipment, consumer's electronics such as TV, VTR and audio sets, industrial automation equipment and various kinds of electronic instruments, etc.



Features:

High Saturation material, low cost &high efficiency
wide inductance range,high current capability low magnetic leakage
low DC resistance,good control on noise due to the toriodal constructure
Characteristics:Small volume, Big current output, Excellent current choking performance.
Various material availiable to meet different frequency requirements



Various designs of bobbins for option
Vertical or horizontal, straight needle or bending needle, all the type of the bobbin can be designed at your request
Gap between the pins also can be designed for your information
Can be supplied all kinds of bobbin with their match cores
OEM also can be provided
Favorable price, durable in use
Specialized in producing transformer and transformer bobbin
Bobbin usefulness: be used for transformer, inductor and other electronic products
We can assure you we can try our best to up to your standard
EE core: applied in the switching power supply, main power transformer
EF core: applied in the switching power supply, main power transformer
EFD core: auxiliary power transformer, main power transformer, choke coil
EPC core: auxiliary power transformer, main power transformer
PQ core: applied in the linear filter, choke, pulse transformer, drive transformer
UU core: varieties of switching power supply transformer, coke coil and more
EC/EER core: applied in the linear filter, current transformer, smoothing choke coil, drive transformer
RM core core: filters, inductors and transformers for telecommunication other electronic equipment




In order to quote you correctly, please provide the following information:

1.Product size

2, characteristics, like Electric resistance and inductance

3.Order quantity;

4. It would be best attached the drawings

5.Any special packing or other requirements





Workshop

EI core soft magnetic Mn-Zn ferrite core for transformer

Related Products



EI core soft magnetic Mn-Zn ferrite core for transformer EI core soft magnetic Mn-Zn ferrite core for transformer EI core soft magnetic Mn-Zn ferrite core for transformer





EI core soft magnetic Mn-Zn ferrite core for transformer EI core soft magnetic Mn-Zn ferrite core for transformer EI core soft magnetic Mn-Zn ferrite core for transformer



EI core soft magnetic Mn-Zn ferrite core for transformer EI core soft magnetic Mn-Zn ferrite core for transformer EI core soft magnetic Mn-Zn ferrite core for transformer



FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What's your quality guarantee?

A: We repair or replace parts within 18months if necessary.
