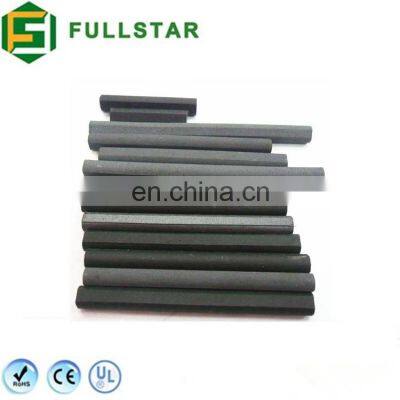

Ni-Zn Ferrite Impeder Rod Core 6*20 photo-2

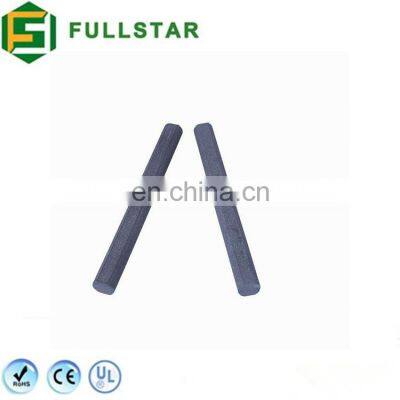

Ni-Zn Ferrite Impeder Rod Core 6*20 photo-3

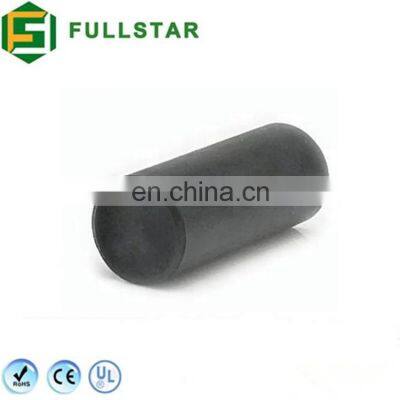

Ni-Zn Ferrite Impeder Rod Core 6*20 photo-4

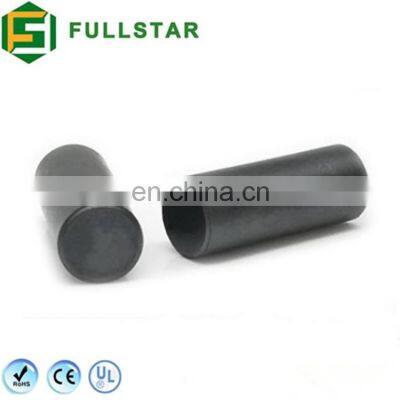

Ni-Zn Ferrite Impeder Rod Core 6*20 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Shaanxi Fullstar Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Ni-Zn Ferrite Impeder Rod Core 6*20

Ni-Zn Ferrite Impeder Rod Core 6*20

Product Description
Ni-Zn SOFT FERRITE ROD CORE MATERIAL CHARACTERISTICS

FULLSTAR

Material

 Initial Permeability Practiacl
Frequency

Residual
Flux
Density

(Br)

 Saturation
Flux
Density

(Bs)

 Magnetizing
Force 		Curie
Temp 		Material
Density

ρ

(Ω-CM)
UNIT  μi±25% MHz Gauss Gauss Oested ℃ g/cm3
D50 50 0.5-30.0 1900 3400 5.50  300 4.8 107
D60 60 0.1-15.0 1800 3200 2.50  300 4.7 107
D70 70 0.5-15 1950 2850 4.60  250 5.0  107
D1 100 0.5-20 1800 3000 0.20  330 5.0  107
D25 250 0.1-2.0 1500 2650 0.60  170 5.0  107
D3 300 0.1-2.0 1600 2700 0.50  150 4.9 107
D30 300 0.4-2.0 600 2600 0.14  150 10.0  107
D35 350 0.1-1.5 1650 4050 0.50  170 5.0  107
D38 380 0.7-0.1 2007 3375 0.39 186  5.11 107
F5B 700 0.1-1.5 1000 2600 0.48  130 5.0  107
D8 800 0.01-0.6 1500 2900 0.24  150 5.0  107
D85 850 0.1-2.0 1000 2800 0.30  130 4.8 107
D9 900 0.01-0.7 1000 2700 0.30  110 4.7 107
R1K 1000 0.01-0.5 1000 2700 0.20  100 4.7 107
D11 1100 0.01-0.6 600 2800 0.24  150 5.0  107
D13 1300 0.1-0.7 700 2650 0.15  140 4.8 107
D18 1800 0.01-0.6 600 2800 0.15  100 5.0  107
D20 2000 0.001-0.4 1000 4000 0.20  100 4.7 107
Dimensions:
Ni-Zn Ferrite Impeder Rod Core 6*20
Material Diameter Length
Ni-Zn Ferrite 6mm 20mm
