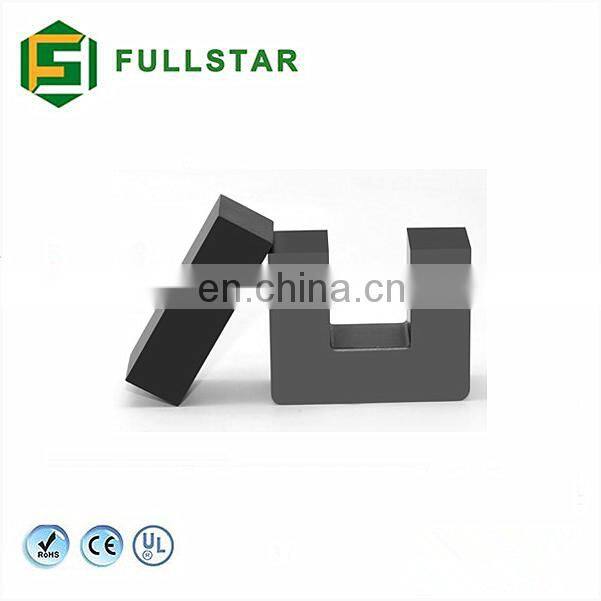

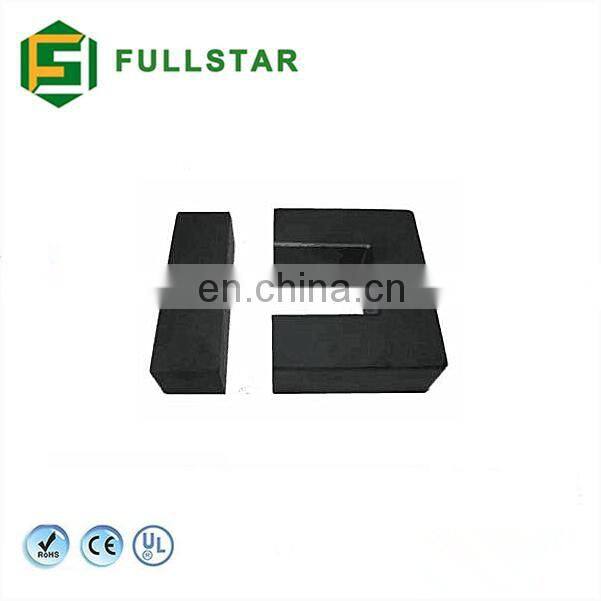

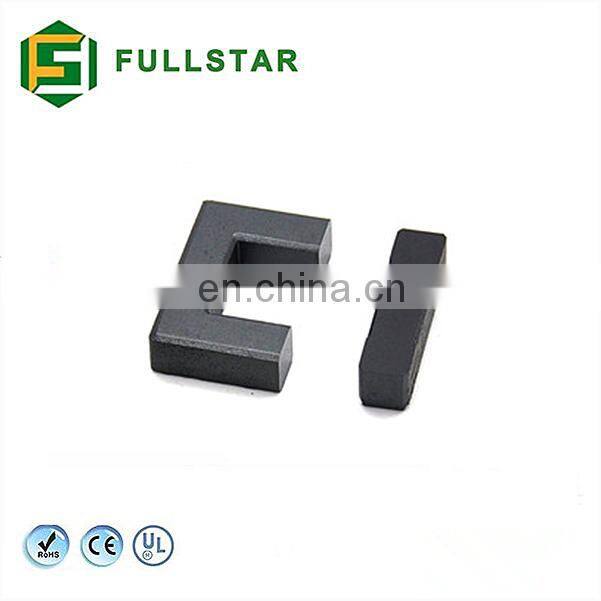

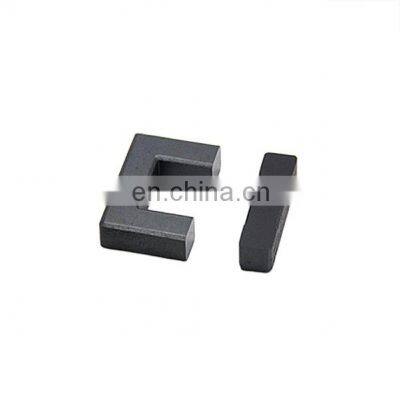

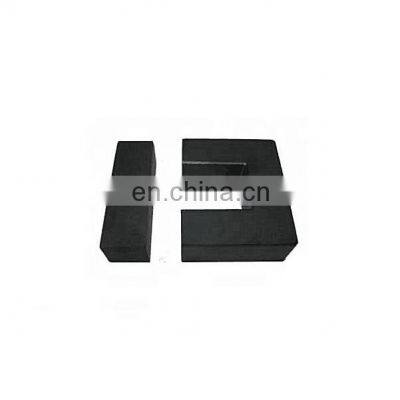

Large Size Transformer Ferrite Core UI Core

Product Description
Ferrite Magnet Composite and Soft Type Ferrite Core UI Shape

Features:
Material: Mn-Zn
Available materials: Mn-Zn power ferrite and P40/P20//H5K/H7K/H10K/H12K/H15K
Compliant with the RoHS Directive
Customized designs are welcome
High-frequency and low-loss ferrite core
Operating in high frequency
Low loss and high saturation flux density
Good anti-corrosion performance, no need to surface treatment.
Good temperature stability
Good choice for industrial application
All shapes can be customized
Compact crystal
Provide isotropic and anisotropic
OEM service
Short lead time
Compatibility cross series brands ferrite cores
RoHS Directive-compliant

Large Size Transformer Ferrite Core UI CoreLarge Size Transformer Ferrite Core UI Core
Various types:
EE TYPE CORE -- EE5, EE8.3, EE10, EE12, EE13, EE16, EE16A, EF16, EF16A, EE19, EF20, EE20, EE22, EE25, EF25, EE28, EE28A, EE28B, EE30, EE33, EE35, EE35A, EE40, EE42, EE55, EE65, EE70, EE85, EE120, EE130, EE160, EE220, EE180
EI TYPE CORES EI28, EI33, EI40, EI40B
EP TYPE CORE --EP7, EP10, EP13, EP17, EP20, EP30
EED TYPE CORE -- EED28/20
EER ETD TYPE CORE -- ETD24, ETD29, ETD34, ETD44, ETD49
EFD TYPE CORE -- EFD10, EFD12.5, EFD15, EFD20, EFD25, EFD30
EC TYPE CORE -- EC28, EC35, EC43, EC39, EC54, EC59
EPC TYPE CORE -- EPC13, EPC15, EPC17, EPC19, EPC20, EPC25, EPC27, EPC30, EPC19
PEE PEI TYPE PLANAR CORE --PEE1407, PEE1808, PEE2211, PEE3213, PEE3817, PEE4319, PEE5821, PEE1405, PEI1806, PEI3812, PEI4314, PEI5815
POT TYPE CORE -- P7/4, P9/5, P11/7, P14/8, P18/11, P22/13, P26/16, P30/19, P36/22, P48/30
PQ TYPE CORE -- PQ20/16, PQ20/20, PQ26/20, PQ26/25, PQ32/20, PQ32/30, PQ35/35, PQ40/40 and PQ50/50
RM TYPE CORE -- RM4, RM5, RM6, RM8, RM10, RM12, RM14
UR TYPE CORE -- UR15, UR18.5
UF TYPE CORE -- UF9.8, UF10.5, UF15, UF15.2, UF15.7, UF16, UF17, UF19, UF25, UF30, UF33, UF64, UF65, UF80A, UF80B, UF93, UF96, UF100, UF105A, UF120A, UF120B
UU TYPE CORE -- UU44, UU47, UU64, UU66, UU80, UU93, UU101, UU120, UU126, UU160, UU240 and UU300 series
SNAP-ON FERRITE CORES
Welding rod cores YC/YO Type

Applications:
Consume electronic
Inverter
PFC and UPS
Switch mode power supply
Ammeter, audio, phone, TV, dynamo, Motors, Meters, Speakers, Sensors, Medical Machine products, Magnetic Sport products, etc

Packaging & Shipping

Packing

In Cartons

Delivery

Samples -- in 5 working days
Mass production -- in 4~6 weeks



Our Services

 Large Size Transformer Ferrite Core UI Core

Company Information

Providing with quality and standard customer-made electronic and passive components UI ferrite core and solution products, Fullstar Electronics is a leading UI ferrite core manufacturer and supplier in China. welcome to wholesale electronics UI ferrite core and customized soft magnetic Mn-Zn ferrite cores from our factory.

Large Size Transformer Ferrite Core UI Core

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How do you control the quality?

A:We control product quality by IQC, and 100% quality testing before packing and delivery. We had passed ISO9001 certificate repot.
