EI48 Audio Amplifier Output Transformer 30W 60W Transformer for Audio Line

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Linear power adapter	Audio Output Transformers
Rated Power:	2W-300W
Input:	220-240 VAC or 100-120VAC 50Hz/60Hz
Output Voltage:	5V 6A 9A 12V 15A 19V 24V 36V
No Load Power Consumption :	< 1.5W
Protections:	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity:	5%-90% RH non-condensing

Audio Output Transformer Series

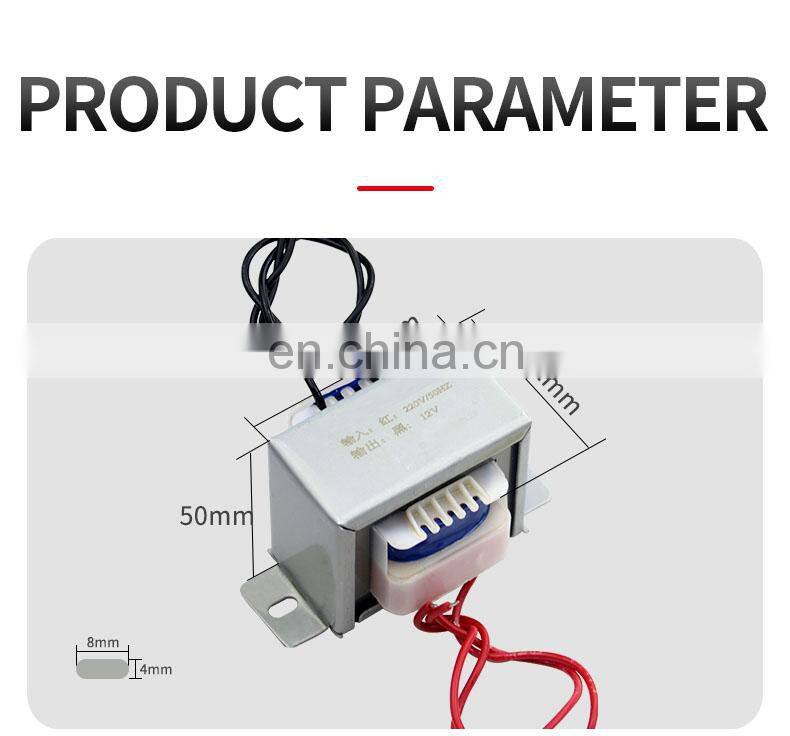

Power	Core model	Long	Width	High	After range	Hole spacing	Overall length	Weight
Power	Core model			A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Kg
1W	EI 28*13	30	25	27	13	0.6-2.5	EI76	70-97
2W	EI 35*15	37	33	32	17	2.3-7.7	EI83	86-123
3W	EI 41*17	43	36	36	18	7-10	EI120	84-120
5W	EI 41*20	50	41	36	22	17-34	EI176	130-200
8W	EI 48*18	50	40	44	21	14-21	EI185.8	110-160
10W	EI 48*24	50	45	44	26	61	74	0.36
12W	EI 48*26	50	50	44	26	61	74	0.4
15W	EI 57*25	60	51	51	27	72	85	0.52
20W	EI 57*30	60	56	51	32	72	88	0.62
25W	EI 57*35	60	61	51	37	72	90	0.82
30W	EI 66*32	59	58	58	35	82	96	0.96
40W	EI 66*32	69	58	58	35	82	96	0.96
50W	EI 66*36	69	61	58	40	82	100	1.05
80W	EI 76*42	79	69	68	45	96*18.5	109	1.56
100W	EI 86*43	89	74	75	47	102*18.5	118	2.08
200W	EI 96*45	96	86	81	45	76*69	96	2.66
300W	EI 96*60	96	100	81	60	79*84	96	3.41

Audio Output Transformer Production Process

Packaging And Shipping

1. Neutral Packing
2.As customer requirement

We also do high frequency transformer, encapsulated transformer, Lan transformer, Planar transformer, Blaun transformer, HV transformer etc.,accessories.The products are exported to more than 40 countries and regions.

Company Information

SHAANXI FULLSTAR ELECTRONICS CO.,LTD is specialized in electronics and magnetic components .
The main products are: High-frequency transformer, Low-frequency encapsulated transformer, RF transformer, Planar transformer,High-voltage ignition transformer, SMD transformer, common mode choke etc.,

Our factory has 30 years' experience in electronics field and the annual volume is above 200,000,000 pieces. We are ISO9001:2015 certified company.

Our operating policy is "Quality comes first, customer foremost". We have excellent team engaging learning and mastering advanced technology . We provide high quality products , quick delivery , strong technical support & best service and would help our customers achieve the maximum value .Customer's satisfication is the only benchmark to verify our works.

Certifications

Customer Reviews

Customer Photos

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How do you control the quality?
A:We control product quality by IQC, and 100% quality testing before packing and delivery. We had passed ISO9001 certificate
repot.
