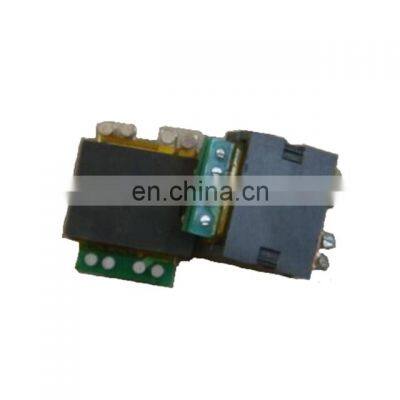

Ferrite Core Transformer TP18 Series Planar Transformer photo-2

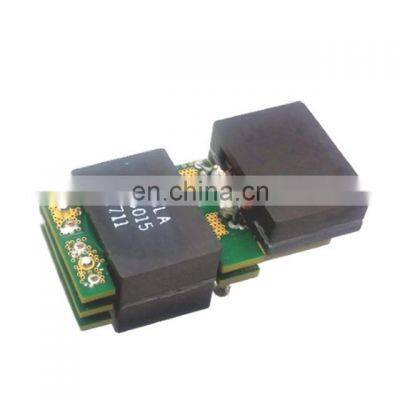

Ferrite Core Transformer TP18 Series Planar Transformer photo-3
Ferrite Core Transformer TP18 Series Planar Transformer photo-4
Ferrite Core Transformer TP18 Series Planar Transformer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

DESCRIPTION:

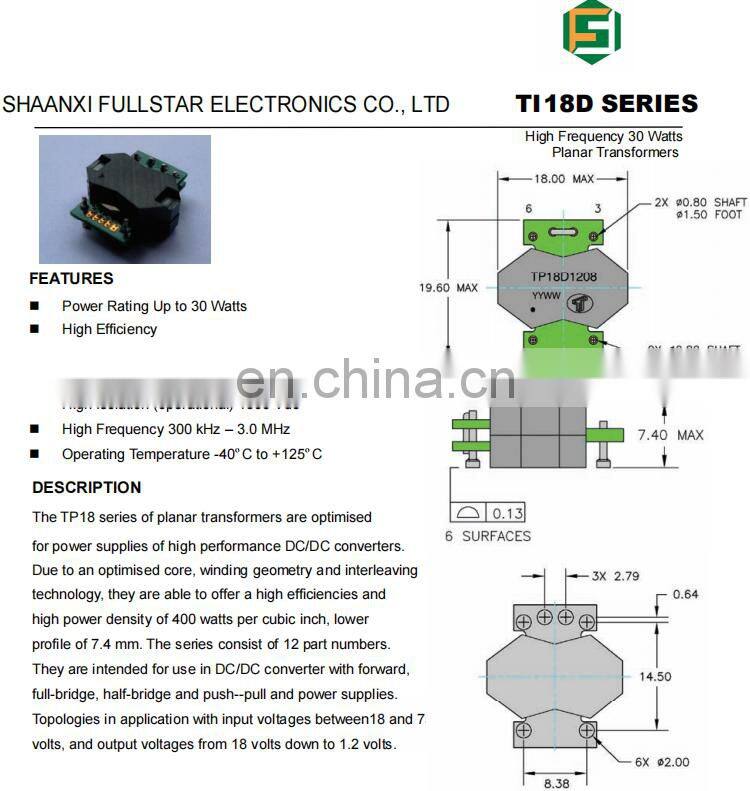

The TP18 series of planar transformers are optimised for power supplies of high performance DC/DC converters.
Due to an optimised core, winding geometry and interleaving technology, they are able to offer a high efficiencies and high power
density of 400 watts per cubic inch, lower profile of 7.4 mm. The series consist of 12 part numbers.
They are intended for use in DC/DC converter with forward, full-bridge, half-bridge and push--pull and power supplies.
Topologies in application with input voltages between18 and 75 volts, and output voltages from 18 volts down to 1.2 volts
Features:
Power Rating Up to 30 Watts
High Efficiency
Footprint 19.6 mm X 18.0 mm
Lower Profile of 7.4 mm
High Isolation (operational) 1500 Vdc
High Frequency 300 kHz – 3.0 MHz
Operating Temperature -40ºC to +125ºC
