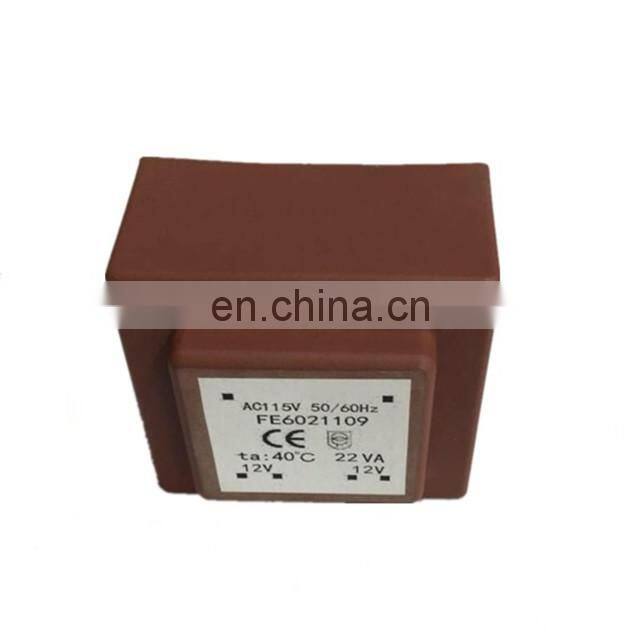

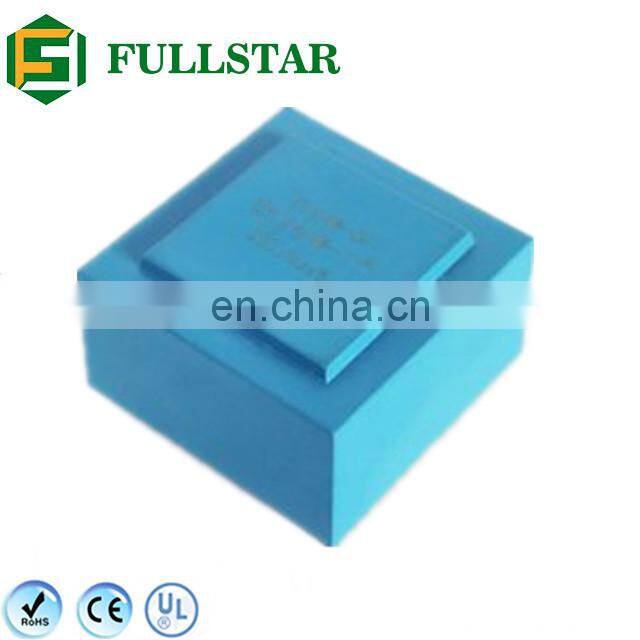

Epoxy Resin Encapsulated Transformer PCB Mount Encapsulated Power Transformer
FEATURES :
.CE/VDE approved
.Potted under vacuum
.Dielectric strength- 4000Vrms
.Meet with UL94V-0 flammability requirements
.Insulation class- class B (130℃)
| Primary (230V) |
Primary (115V) |
Secondary (V/mA) |
No-load voltage(V) |

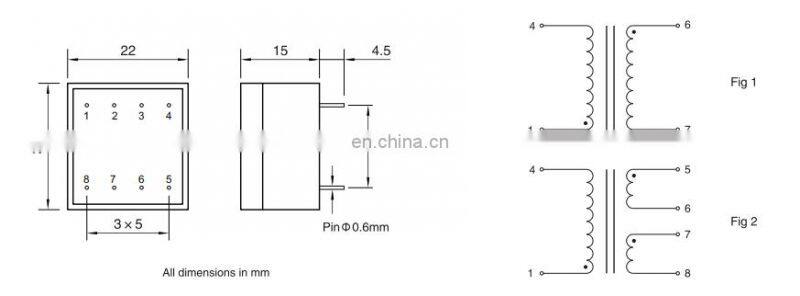

Fig. |
| FE2006001 | FE2006101 | 6/58 | 0.35 | 1 |
| FE2006002 | FE2006102 | 6/75 | 0.45 | 1 |
| FE2006003 | FE2006103 | 9/39 | 0.35 | 1 |
| FE2006004 | FE2006104 | 9/50 | 0.45 | 1 |
| FE2006005 | FE2006105 | 12/29 | 0.35 | 1 |
| FE2006006 | FE2006106 | 12/38 | 0.45 | 1 |
| FE2006007 | FE2006107 | 15/23 | 0.35 | 1 |
| FE2006008 | FE2006108 | 15/30 | 0.45 | 1 |
| FE2006009 | FE2006109 | 18/19 | 0.35 | 1 |
| FE2006010 | FE2006110 | 18/25 | 0.45 | 1 |
| FE2006011 | FE2006111 | 24/15 | 0.35 | 1 |
| FE2006012 | FE2006112 | 24/19 | 0.45 | 1 |
| Primary (230V) |
Primary (115V) |
Secondary (V/mA) |
No-load voltage(V) |
Fig. |
| FE2006013 | FE2006113 | 2X6/29 | 0.35 | 2 |
| FE2006014 | FE2006114 | 2X6/38 | 0.45 | 2 |
| FE2006015 | FE2006115 | 2X9/19 | 0.35 | 2 |
| FE2006016 | FE2006116 | 2X9/25 | 0.45 | 2 |
| FE2006017 | FE2006117 | 2X12/15 | 0.35 | 2 |
| FE2006018 | FE2006118 | 2X12/19 | 0.45 | 2 |
| FE2006019 | FE2006119 | 2X15/12 | 0.35 | 2 |
| FE2006020 | FE2006120 | 2X15/15 | 0.45 | 2 |
| FE2006021 | FE2006121 | 2X18/10 | 0.35 | 2 |
| FE2006022 | FE2006122 | 2X18/13 | 0.45 | 2 |
| FE2006023 | FE2006123 | 2X24/7 | 0.35 | 2 |
| FE2006024 | FE2006124 | 2X24/9 | 0.45 | 2 |
SHAANXI FULLSTAR ELECTRONICS CO,LTD is specialized in electronics and magnetic components .
The main products are SMD power inductors, SMD common mode inductors, RF transformer, Planar transformer, LAN transformer, High-frequency transformer, Low-frequency encapsulated transformer, SMD transformers and current sensors. We also do ferrite cores, bobbins, iron power cores, amorphous cores , sendust cores, etc., accessories. The products are exported to more than 40 countries and regions.
Our factories have 20 years' experience in electronics field and the annual volume is above 200,000,000 pieces. We are ISO9001:2008 certified company.
Our operating policy is “Quality comes first, customer foremost”.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How do you control the quality?
A:We control product quality by IQC, and 100% quality testing before packing and delivery. We had passed ISO9001 certificate repot.
