SCT006 SCT013 Split Core Current Transformer Clamp On Current Sensor

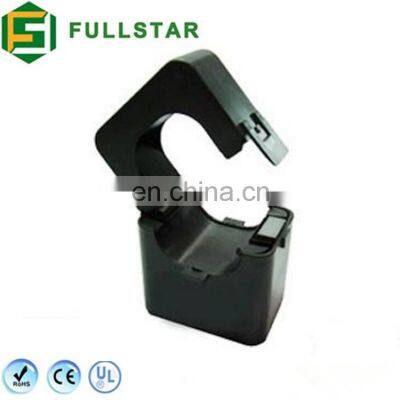

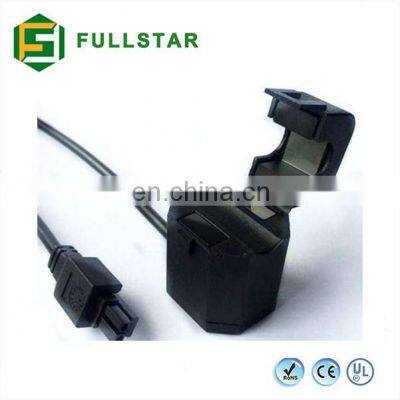

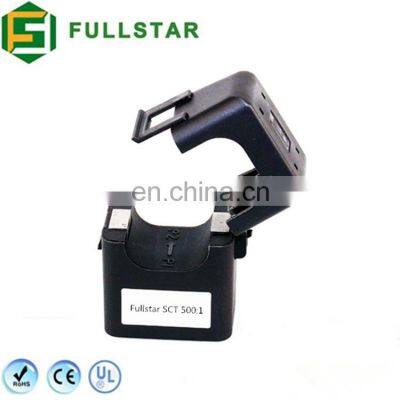

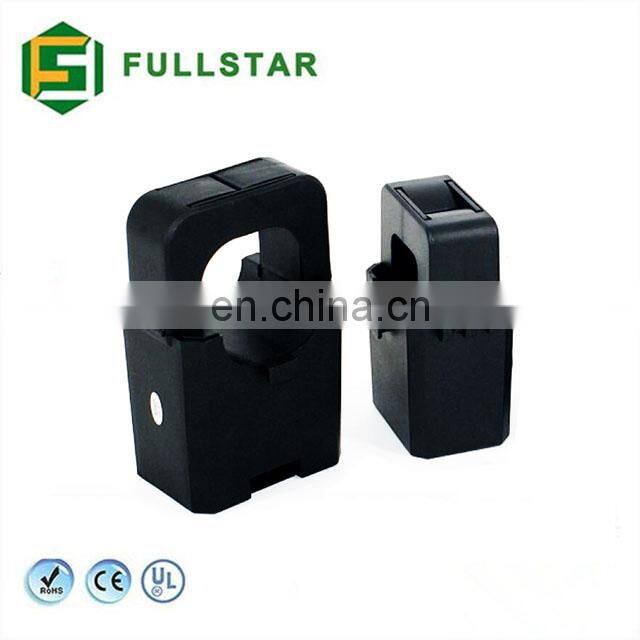

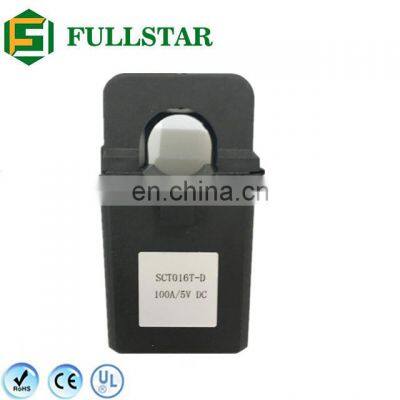

SHAANXI FULLSTAR SCT036 Series split-core current transformer AC current from 5 to 600 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Features:
Maximum continuous primary current 600A AC
Output: 33.3-100 mA Volt at rated current
Current Ratio: 500:1,1000:1,2000:1,2500:1,3000: 1
Maximum Primary Voltage: 3500-5000Vac(Insulated Conductor)
Phase angle: Less than 0.5 degrees at rated current
Frequency Range: 50 Hz to 1K Hz
Accuracy: ± 0.5/1% from 5% to 120% of rated current
Operating Temperature: -25 Cto 60 C.
Insulation Voltage: 720 Vac
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
CE ,ETL recognized, and RoHS compliant
Output and leads can be customized

HAANXI FULLSTAR ELECTRONICS CO.,LTD is specialized in electronics and magnetic  components .

The main products are SMD power inductors, SMD common mode inductors, RF transformer, Planar transformer, LAN transformer, High-frequency transformer, Low-frequency encapsulated transformer, SMD transformers and current sensors. We also do ferrite cores, bobbins, iron power cores, amorphous cores , sendust cores, etc., accessories. The products are exported to more than 40 countries and regions.

FAQ:

Are you a factory or trading company?

Wa are factory.

How can I get some samples?

(1).We are pleased to offer you samples. New clients are expected to pay for the courier cost and samples free, this charge will be deducted form the payment for formal order.

(2).Regarding the courier cost:you can arrange a RPI(remote-up)service upon Fedex,UPS,DHL,TNT,etc.to havethe samples collected;or inform us your collection account. Then you can pay the freight direct to your local carrier company.

Can you accept OEM?

Yes, we can do OEM products as your requst.

Can I put my own logo on the paoducts?

Yes, it's ok.

What's the lead time for mass order?

In general, it is about 20 to 30 days according to your order qty.
