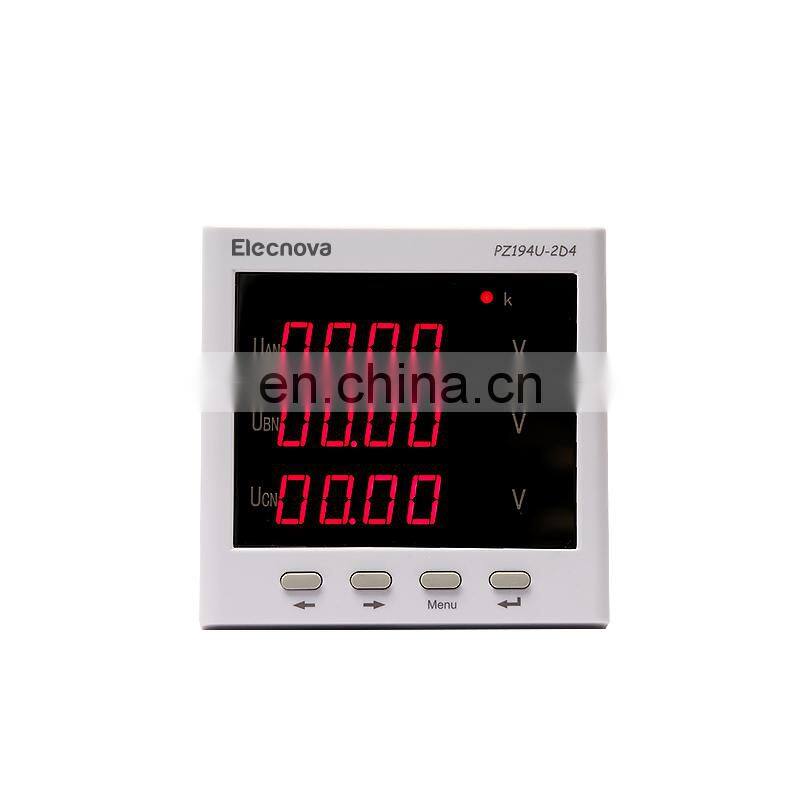

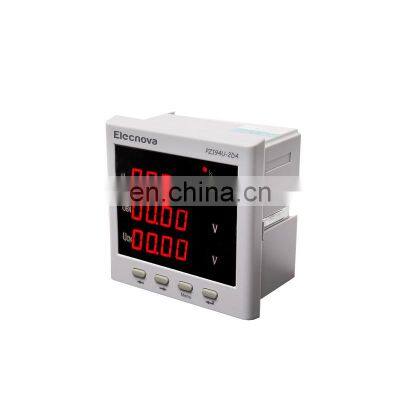

PZ194U-2D4 3 phase smart AC digital screen replace analog volt energy meter
- 1000 per Month
- T/T Credit Card
- LCD Display Micro Ampere Hour Meter S3I48 Panel 48*48 Panel 3 Phase Digital Display Current Meter Digital Only AC 1A/ 5A LED 0.5
- LNF56 96x96 96 panel mounted power meter
- PZ195U-DK1B electricity dual tariff energy digital 48*48 panel dc voltage meter
- LNF66 electric digital power meter rs485 industrial automation panel meter lcd voltage meter
- LNF32 single phase multi tariff energy meter lora electric meter price
- S3I48 panel mounted LED display 3 phase current digital ampere meter
Product Description
Product Name: PZ194U-2D4 3 phase smart DC digital screen replace analog volt energy meter
PZ194U-2D4 is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.
Aaccuracy | 0.5%(default),0.2% | ||
Date Update Rate | 1s | ||
Current | Rated value:DC 1A,5A | ||
Voltage | Rated value:AC 100V,220V,380V etc | ||
Overload | Continuous:2 times of rated value | ||
Frequency | 45~65Hz | ||
Range | AC 80~270V 50/60Hz,DC 80~270V | ||
Consumption | ≤5VA | ||
Digital Input | 2 dry contact inputs,Isolation:2kVAC | ||
Relay Output | 2 relay outputs,contact rated at AC 5A/250V or DC 5A/30V,Isolation:2kVAC | ||
Analog Output | dc 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ | ||
Communication Port | RS485,Modbus-RTU,2-WIRE,up tp 9600bps | ||
Degree of Protection | Front:IP64,Rear :IP20 | ||
Operating Temperature | -40℃~70℃(LED),-25℃~70℃(LCD) | ||
Storage Temperature | -45℃~85℃(LED),-30℃~80℃(LCD) | ||
Relative Humidity | ≤93%RH | ||
Insulation | AC≥2kV | ||
Altitude | ≤2500m |
PZ194U-2D4 can be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE3000. SFERE3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.
SMT AOI Test Plug-In Mounting
Wave Soldering Assembling Inspection
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
