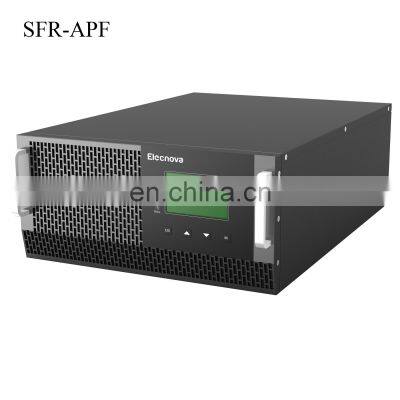

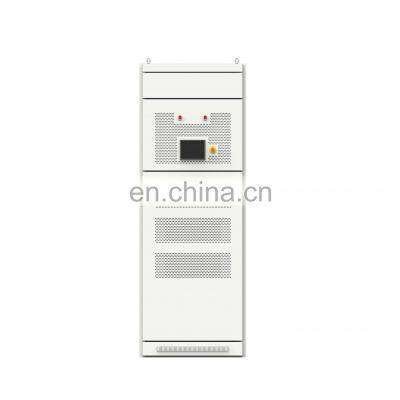

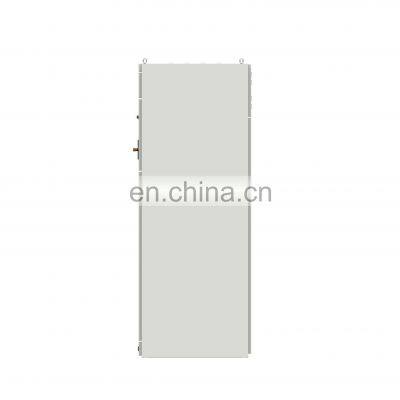

An increasing number of loads are non-linear, introducing harmonics into the power grid and thus significantly impairing the power quality. SFR-APF is an active harmonic filter that effectively reduces the unwanted harmonics.
Linear loads have become a rarity in industrial plants, office buildings, data centers or even private households. Non-linear loads, by contrast, have become increasingly common: frequency converters in drive systems, the large numbers of switch-mode power supplies used in IT and communications equipment, and also more and more in household electronics. Even lighting technology employs mainly non-linear power supplies.
Elecnova active power filter is mainly composed of incoming line contactor, filter, IGBT inverter, and control and protection. The control system of the active power filter detects the current on the load side and the system voltage at the connection point in real time, calculates the current required for harmonic compensation, and controls the three-phase IGBT inverters to give current tracking and compensation orders to suppress harmonics on the load side. Besides, the filter is also capable of protection against AC overvoltage/under voltage, output overcurrent, DC overvoltage/under voltage, short circuit of inverter, and overheating of inverter.
Function | Specification | ||
Measurement accuracy | Current | ≤1.0%(5%~120%In) | |
Voltage | ≤0.5%(80%~120%Un) | ||
Power | ≤2% | ||
Power factor | ≤0.01 | ||
Switching mode | Zero cross switching | ||
Compensation operation | Working voltage | AC380V±20%, distortion rate ≤5% | |
Comsumption | ≤5VA | ||
Max working current | 1.35 X In | ||
Switching inrush current | ≤3 X In | ||
Host protection | Over voltage | 430V(can be set) | |
Under voltage | 300V(can be set) | ||
Harmonic exceeding | 0%~100% | ||
Local protection | Over current | 0A~100A | |
Over temperature | 55 ℃ | ||
Unbalance | 50% | ||
Control setting | Control parameter | Target power factor, switching threshold, delay time etc. | |
Peripheral unit parameters | Current transformer ratio | ||
Network interface | Pluggable data line, internal network protocol | ||
Mechanical installation | Outline dimension | W-71.5mm L-370mm, height is a according to different capacity | |
Installation dimension | Distance of installation fixing holes:W-85mm*L-315MM | ||
Weight | ≤6.5kg | ||
Environment temperature | Working temperature | -15℃~45℃ | |
Storage temperature | -25℃~55℃ | ||
Altitude | ≤2000m | ||
Standard | GB/T15575-2008 | ||
Transformer Capacity(kVA) | Capacity and Quantity of Active Power Filter(Three-phase Four-wire) | Capacity and Quantity of Active Power Filter(Three-phase Three-wire) |
200 | SFR-APF4-50/0.4 | SFR-APF3-50/0.4 |
250/315 | SFR-APF4-50/0.4 | SFR-APF3-75/0.4 |
400 | SFR-APF4-75/0.4 | SFR-APF3-75/0.4 |
500/630 | SFR-APF4-75/0.4 | SFR-APF3-100/0.4 |
800 | SFR-APF4-100/0.4 | SFR-APF3-150/0.4 |
1000 | SFR-APF4-100/0.4 | SFR-APF3-200/0.4 |
1250 | SFR-APF4-150/0.4 | SFR-APF3-250/0.4 |
1600 | SFR-APF4-200/0.4 | SFR-APF3-300/0.4 |
2000 | SFR-APF4-200/0.4 | SFR-APF3-400/0.4 |
2500 | SFR-APF4-300/0.4 | SFR-APF3-250/0.4 x 2 |
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
