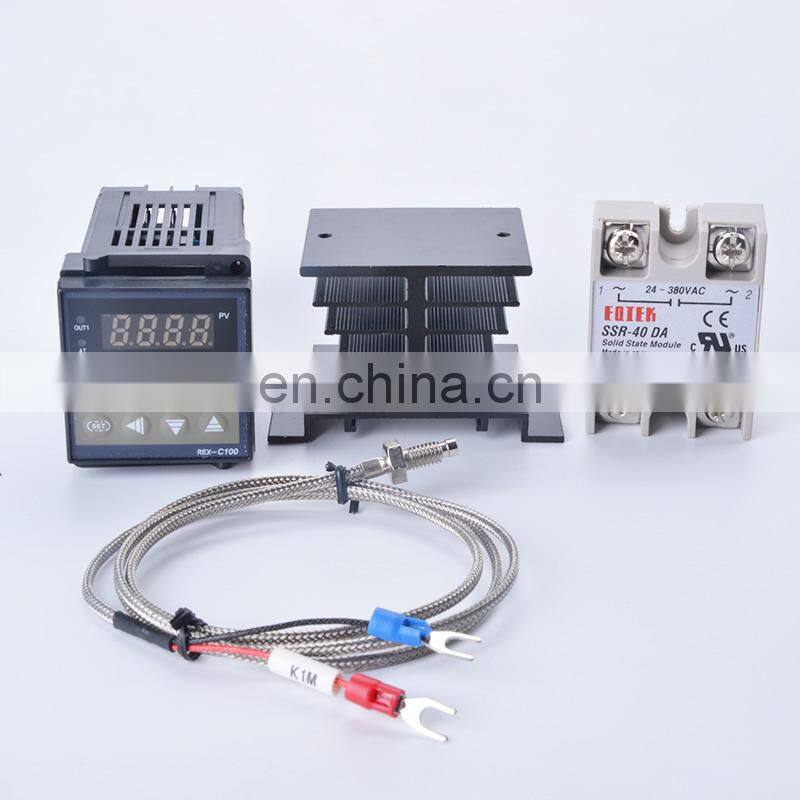

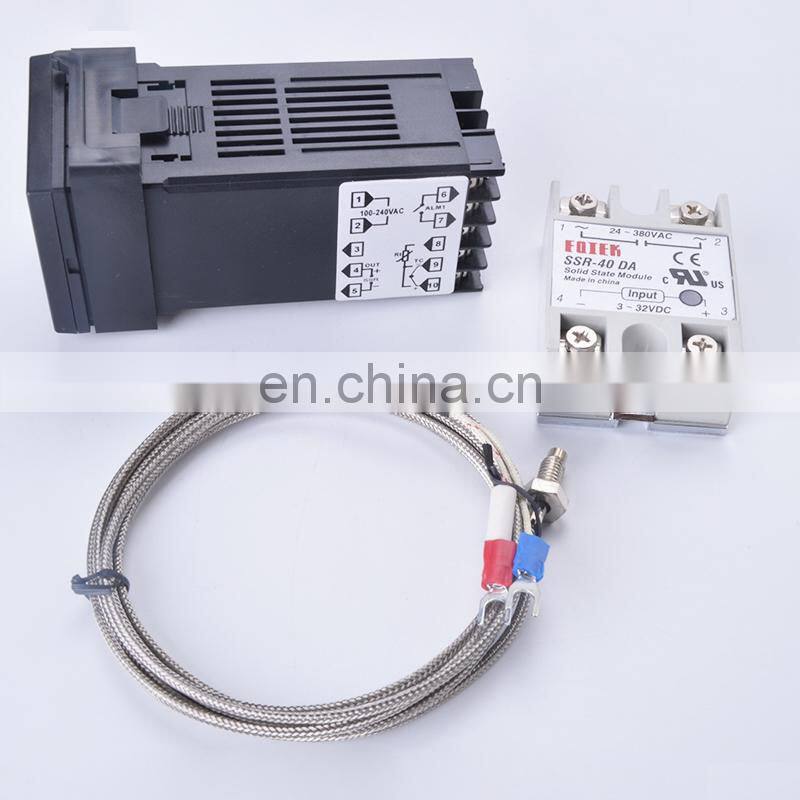

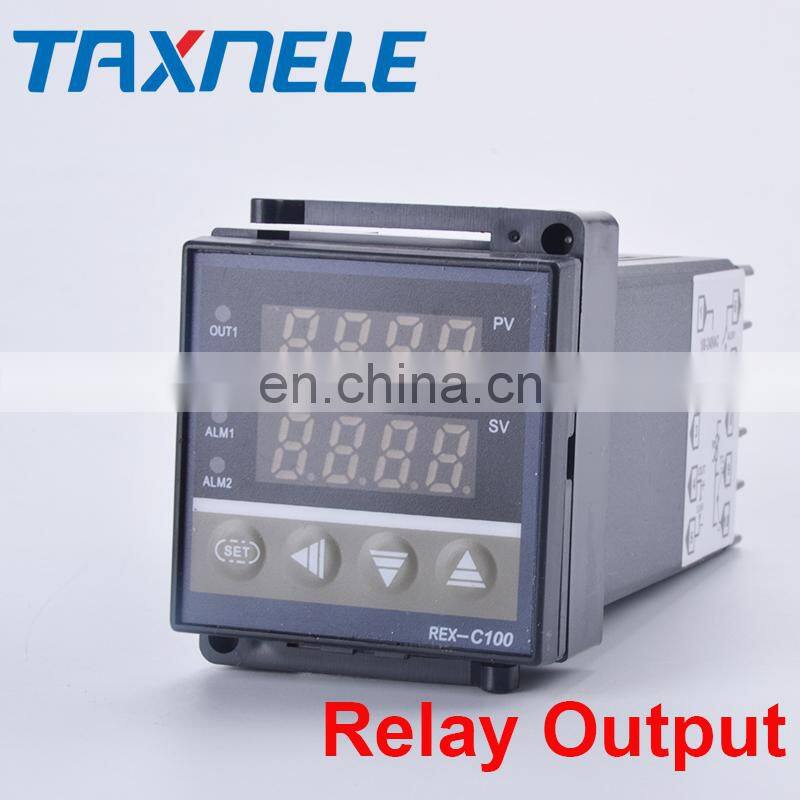

Digital PID Temperature Controller REX-C100 REX C100 thermostat with 40DA SSR Relay K Thermocouple 1m Probe RKC SSR-40DA
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Digital PID REX-C700 Temperature Controller + SSR Relay 40A + K Thermocouple + Heat Sink ,PID Controller Thermostat SSR Output
-
Dual Digital PID Temperature Controller REX-C400 with Sensor K thermocouple M6 input SSR replyOutput SSR-40DA REXC-400
-
Universal Black Car Relay 12V 40A 5Pin 4Pin DC AMP SPDT Relay + Practical Socket Car Starter Auto Relay Universal
-
Dual Battery Start relay 4 Pin Large Current 500A 12V 24VDC Car Power Switch,Starting Relay,Auto Start Contactor,Heavy current
-
Dual Battery Start relay 4 Pin Large Current 500A 12V 24VDC Car Power Switch,Starting Relay,Auto Start Contactor,Heavy current
-
Universal Black Car Relay 12V 40A 5Pin 4Pin DC AMP SPDT Relay + Practical Socket Car Starter Auto Relay Universal
Product Description
Product Description
1.Product attributes
Product Main Specifications:
|
Model number |
External dimensions |
Perforation dimensions |
Output type |
Input type |
||
|
REX-C100 |
48x48x100 mm |
45 0.50x45 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple and RTD |
||
|
|
||||||
|
REX-C400 |
48x96x100 mm |
45 0.50x92 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple and RTD |
||
|
REX-C410 |
|
|||||
|
REX-C700 |
72x72x100 mm |
68 0.50x68 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple and RTD |
||
|
|
||||||
|
REX-C900 |
96x96x100 mm |
92 0.50x92 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple and RTD |
||
|
|
| Model number | REX-C series |
| Accuracy | ±0.5% of full scale |
| Supply voltage | 100-240Vac, 50/60 Hz |
| Input types-Thermocouple | K, J, R, S, B, E, N, T |
| RTD | Pt100, Cu50 |
| Voltage | 0-5V, 1-5V |
| Current | 0-20mA, 4-20mA |
| Output types | Electromagnetic relay, SSR, current, SCR |
| Power consumption | Less than 5 VA |
| Control method | PID Control (with auto-tuning) or Self-tuning, or ON/OFF |
| Setting method | Touch switch |
| Indication method | 8-segment 4-digital display and LED indication |
| Alarms | Deviation High, Low, High/Low, Band,Process High, Low Set value High, Low |
| Sampling period | 0.5s |
| Electromagnetic compatibility | IEC61000-4-4 (Electrical fast transient burst), 4KV/5KHz; IEC61000-4-5 (Surge), 4kv |
| Isolation voltage | >=2300v among the terminal of power, relay contact and signal; >=600v between two isolated weak signal terminal |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 30-85% RH max, non-condensing |
| Alias name | REX-C pid temperature controller, intelligent temperature controller |
