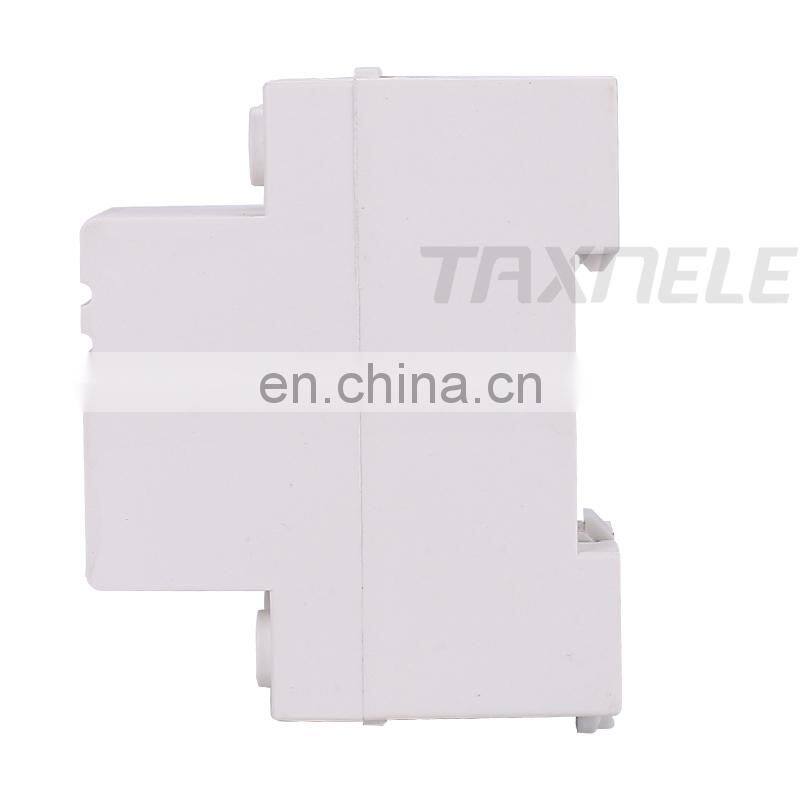

230V AC 40A 63A Din Rail Auto Recovery Voltage Protective, Voltage Power Protector 220V
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
63A 230V Din Rail Adjustable Over Voltage Under Voltage Protect Electric Digital Automatic Voltage ProtectorNegotiableMOQ: 1 -
LC1-D25 AC Magnetic Contactor M7C Three-phase Electric Contactor AC Motor Starter Relay Contactor 25A 50/60HzNegotiableMOQ: 1
-
4P 32A 63A 2NC2NO 4NO 4NC 220V/230V 50/60HZ Din Rail Household AC Modular ContactorNegotiableMOQ: 1
-
Self-resetting Over Voltage and Under Voltage Protector Switch Over Current Overload Voltage Lightning Protection Household 220VNegotiableMOQ: 1
-
2P 4P ATS 63A 230V 380V Micro Circuit Breaker Dual Power Automatic Transfer Switch Auto Transfer Switch, Dual Power AtsNegotiableMOQ: 1
parameters
| NAME | Voltage Protector |
The automatic recovery over voltage and under voltage protective device complies with modular design standards. the circuit boards of products adopt good quality electronic components with reliable performance. when the power situation is unstable. It's protection function will be automatically activated. once the voltage exceeds the limited range of products, it will automatically cut off so as to protect the safely of electrical equipment and persons. The device will re-supply in 1 minute, when the power returns to normal.

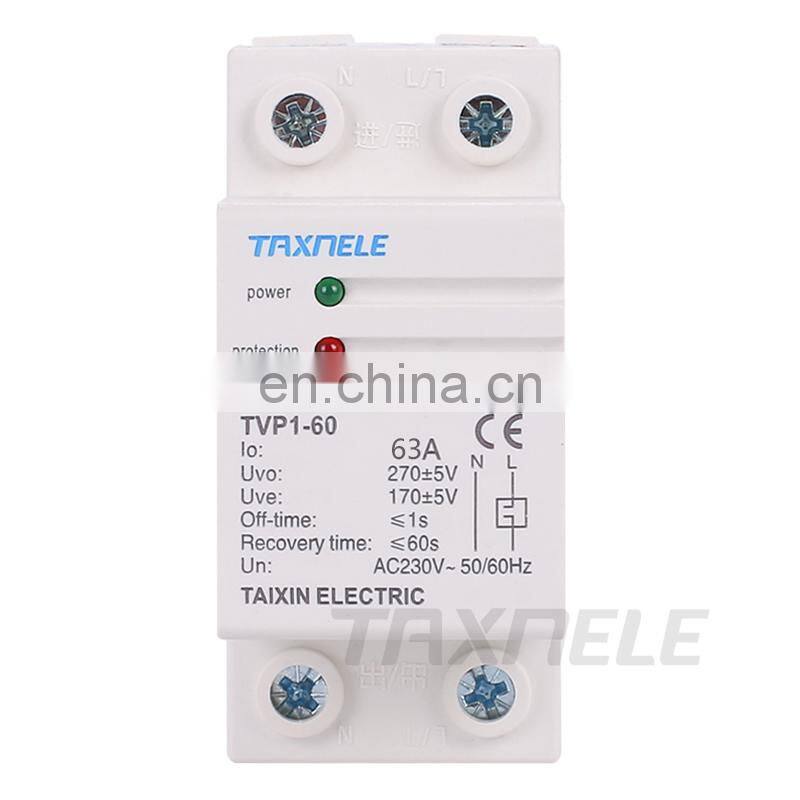

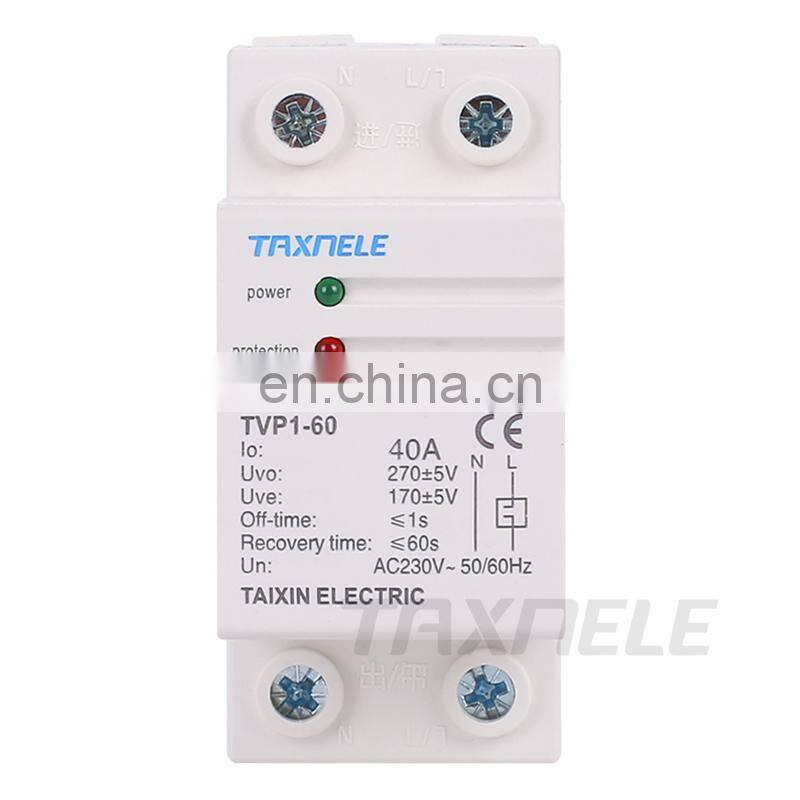

The green indicator display, when the power is normal supply.
The red indicator display, when the power over voltage or under voltage.
Main Technical Speacification:
1. Rated AC voltage 230V±10% and frequency 50Hz/60Hz
2. Passing Max Current: 40A,63A
3. Max. Loading power: 8.8KVA
4. Over-voltage action cut-off value: >270VAC+/-5V
5. Normal-voltage value: 175-270VAC
6. Under-voltage action cut-off value: <170VAC+/-5V
7. Over voltage and under voltage cut-off:< 1s
8. Electricity transmitting delay after cut-off: <60s
9. Self power consumption<2W
10. Electric machinery life=100000 times
11. Dimension: 35L*70W*77Hmm
12. Installing: 35mm Din rail
Noted: When you first connect the product, you have to wait about 1 minute, after the red light turn off, then the product will work.

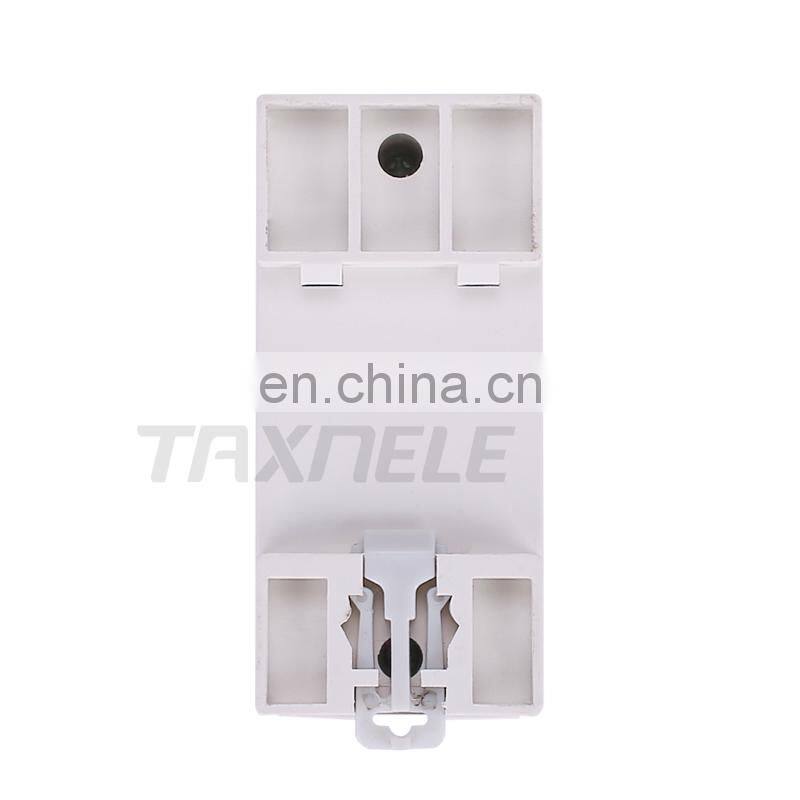

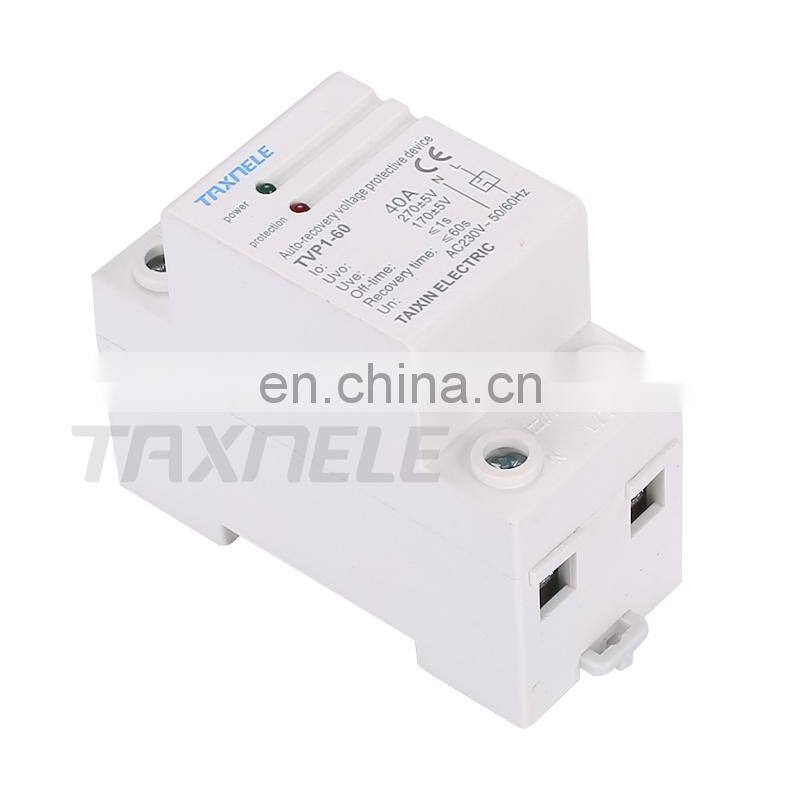

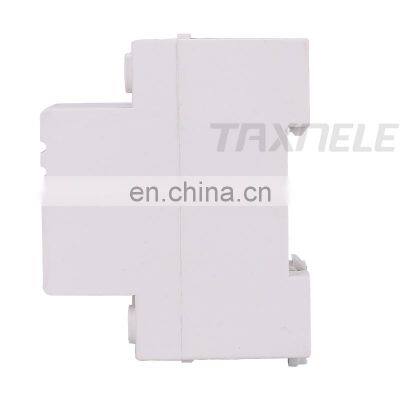

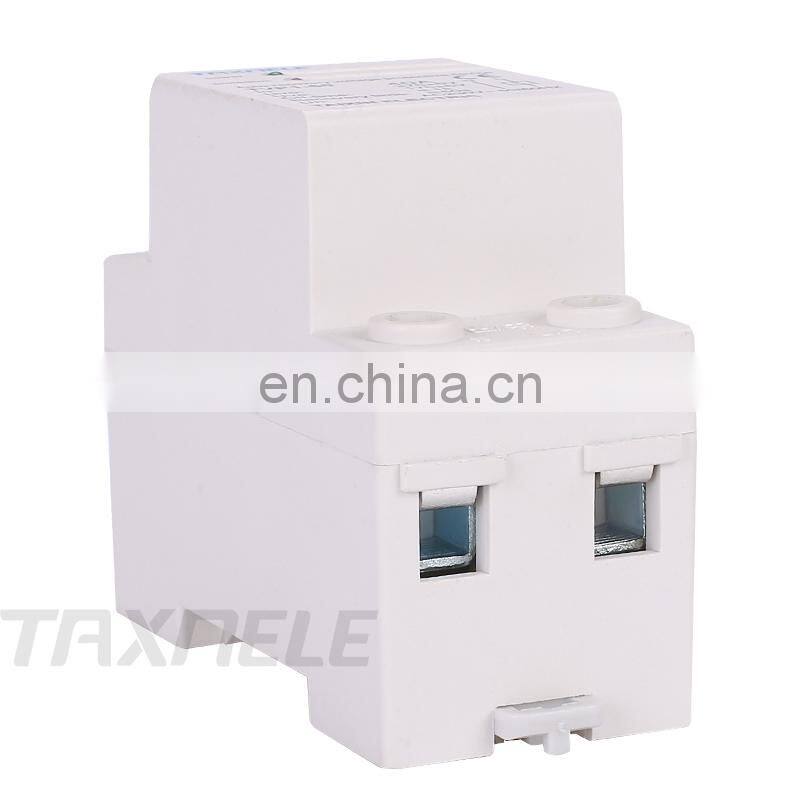

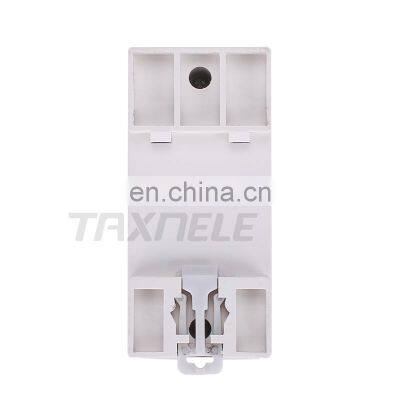

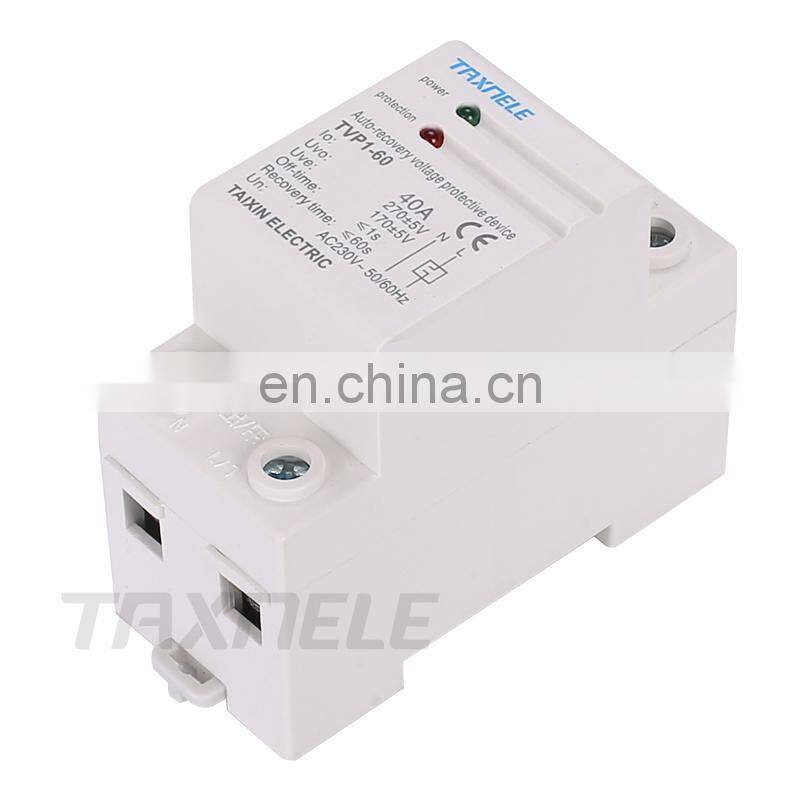

Product display
