Intelligent Microcomputer Auto Bell Ring Timer Controller School Bell 220V ZYT08 80 Times One Day, Programmable School Bell Time
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AL-06 Digital Timer Switch 220VAC 10A Digital Timer Digital Programmable Timer Universal Socket EU PlugNegotiableMOQ: 1 -
Weekly Programmable Electronic Digital Timer Switch Universal Socket Plug Timer Switch 220V 10A Europe Plug EU Plug EU SocketNegotiableMOQ: 1
-
Digital Timer Switch EU Plug AL-06 Weekly Programmable Electronic 220VAC, Timer Lighting Switch Wall Controller TimerNegotiableMOQ: 1
-
24 Hour Programmable Timer Switch Universal Socket Mechanical Timer 220V 16A Europe Plug EU Plug EU SocketNegotiableMOQ: 1
-
Din Rail Timer Intelligent Microcomputer Auto Bell Ring Timer Controller Time Switch School Bell 220V NKG-4 With 40 GroupsNegotiableMOQ: 1
1.Product attributes
This automatic bell timer product designed with high performance microcomputer
chip, it can automatically switch on the bell according to the
fixed time, and realize automatic ring with max. 80 times
one day. It is widely used in school, factory and etc.
Remark: The actual shipment without battery, express not allowed.
specification
| Working voltage | AC240V |
| Timing error | 0.5s/day |
| Load capacity | Resistance 25A |
| Temperature | -10C~+50C |
| Dimension: | 126×88×51mm |
| Max time length | 1s~23h59m59s |
| Voltage scope | 85%~110% |
| Consumed power | <4W |
| Relative Humidity | <95% |
BUTTON GUIDE
6 buttons, "MODE" "SELE" "+" "-" "AUTO/MAN" "RESET"
| MODE | Functional menu. Click it and enter program state. it can select from TC, PROG, ER |
| TL. Press it for 3s, it will return to the clock state. | |
| SELE | Parameter optional. Under functional menu, click it and select the parameter you want, and |
| the chosen one is flashing. | |
| + | Up adjustment. Upwards number for the chosen parameter |
| - | Down adjustment. Downwards number for the chosen parameter |
| AUTO/MAN | Under the clock state, click "AUTO/MAN" button to select mode: ON, AUTO, OFF; Under |
| the program state, click it to cancel current program setting but make it display"--:--", click | |
| it again to keep this program. | |
| RESET | Click it and can cancel all the program, clock is 00:00:00 |

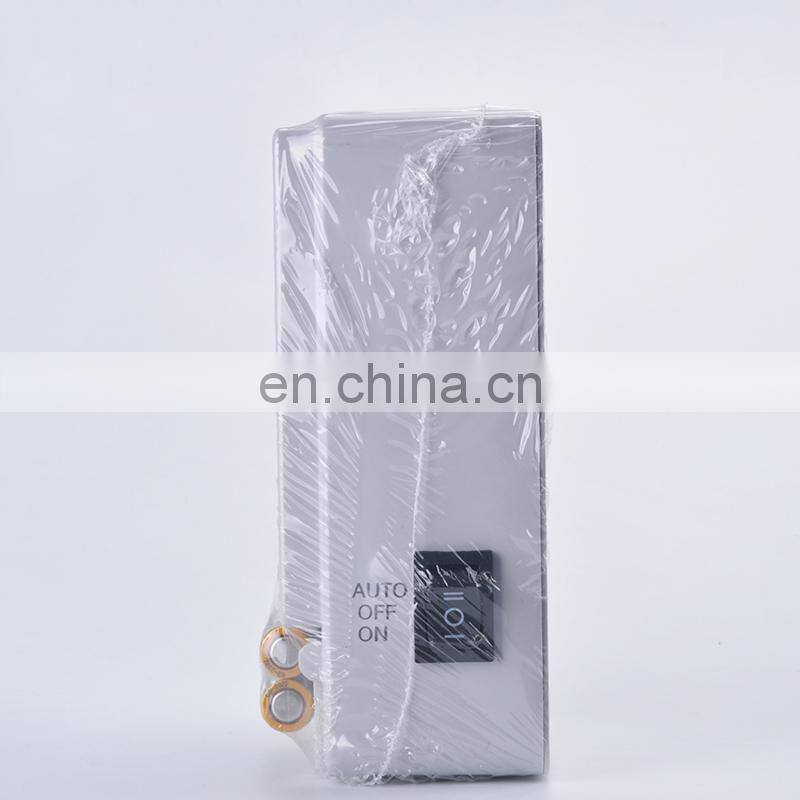

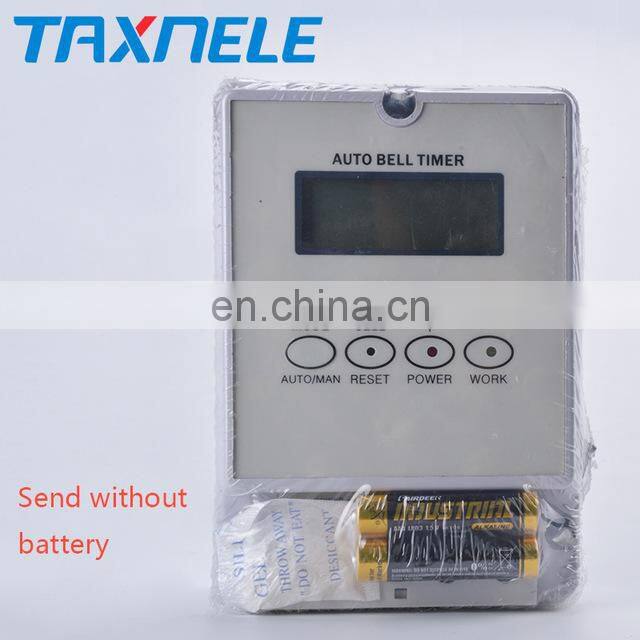

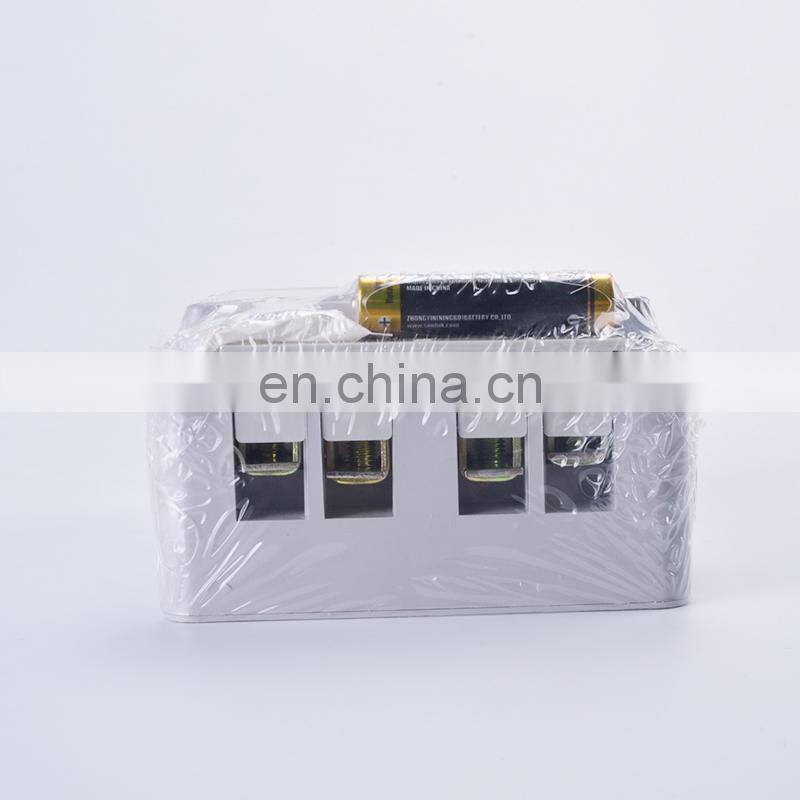

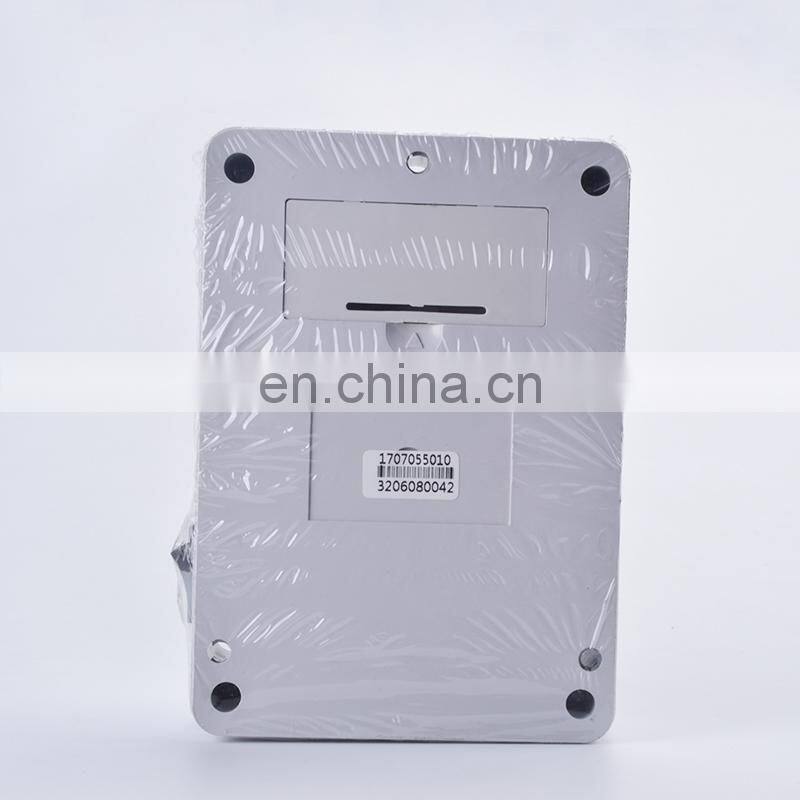

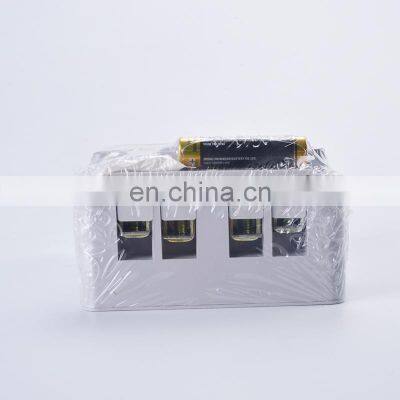

2.Product display
