Home > Products > Temperature Controller > Oven Thermostat Digital Temperature Regulator PID Temperature Controller CH402 SSR Relay Dual Output Vertical 48*96mm
Oven Thermostat Digital Temperature Regulator PID Temperature Controller CH402 SSR Relay Dual Output Vertical 48*96mm
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
220V 380v TEL72 TEL96 Digital Oven Temperature Controller 96x96mm 72x72mm Relay Output k Input 50/60hz 0-400 Degree
-
Dual Output Universal Input Thermostat Digital Temperature Regulator PID Controller CH102 CH402 CH702 CH902 SSR Relay
-
ZFX-ST3012 AC110-220V DC 12V 24V Microcomputer Electronic Temperature Controller Switch Dual Temperature Control Dual Probe
-
W2001 AC 110-220V Digital Socket Thermostat Regulator PLUG IN Temperature Controller Microcomputer Socket Outlet NTC Sensor
-
STC-3000 High Precision Digital Thermostat for Incubator Temperature Controller Thermoregulator Heating Cooling 12V /24V/220V
-
STC-3000 LED Digital Thermostat for Incubator Temperature Controller Thermoregulator Heating Cooling 12V 24V 220V Fahrenheit
Product Description
Parameters
Product Features:
-

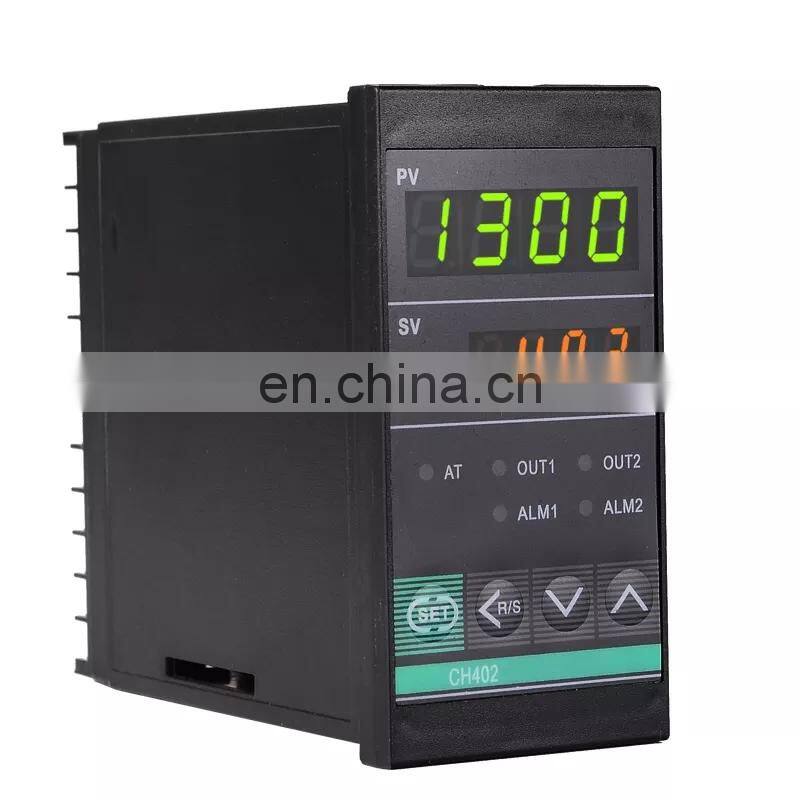

Dual display for both set temperature and process temperature
-

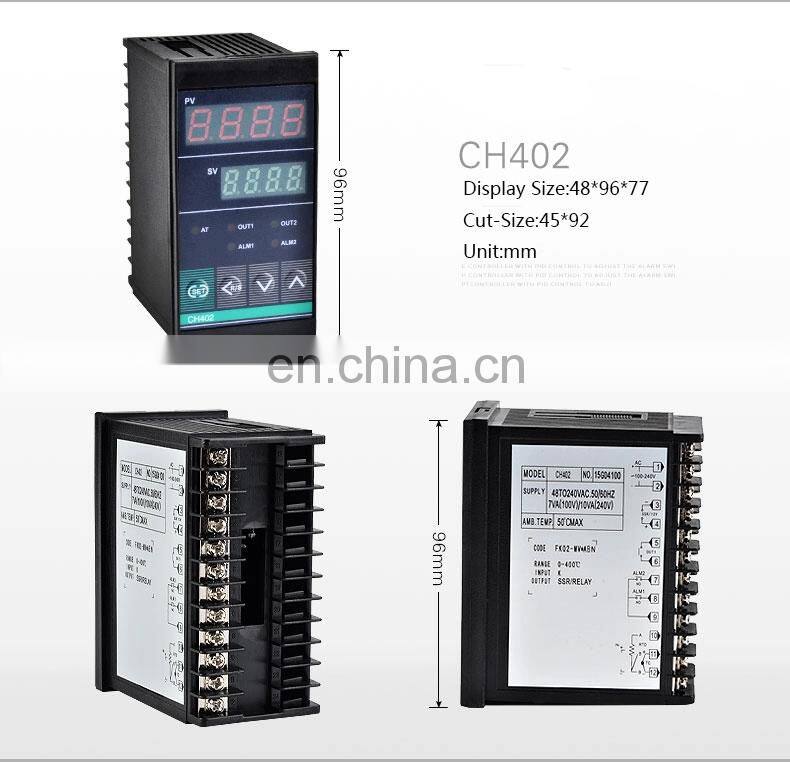

Vertical Size 48*96mm, 1/8 DIN
-
Universal input, support 10 different types of thermocouples and RTD inputs by customers selected at panels.
-
Auto-tune function can find the best PID parameter automatically
-
Displays temperature inCelsius°C
-
Four digits LED display can go up to "9999"
-
Can be powered by either DC or AC power source
-
Uses it for Kiln,Furnace,Oven,Incubator temperature control
-
Uses it in heating control as well as for cooling control
-
It is used in various industries to control and monitor process temperatures
Product Main Specifications:
Input type |
TC: K, E, S, R, J, T, B, WRe3-WRe25.RTD: Pt100, Cu50 |
Input range |
K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC ), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC), Cu50 (-50~150ºC) |
Display |
Two lines, Four digits. °C. |
Display Resolution |
1°C, or 0.1°C with Pt100 |
Accuracy |
±0.5% or ±1 unit of full input range |
Control mode |
PID,On-Off |
Output mode |
Relay contact: 3A at 240 VAC. |
Alarm |
Upper-limit bias alarm |
Power consumption |
<2 Watt |
Power supply voltage rating |
85~260VAC/50~60Hz |
Dimensions |
CH402 48*96*110mm |
Cautions:
-
Only clean the instrument when power off.
-
Please use a soft cloth or cotton paper to clean up the stain on the display.
-
Do not clean up or touch the display by hard matters in case of any scrath.
-
Never use sharp & hard matters such ass screwdrivers or ball pan to touch the buttons on the panel,in case of any scrath or damage.
Packages:
-
1×PID Digital Temperature Controller (NOT include thermocouple)
-
1 x English User Manual
Product display
