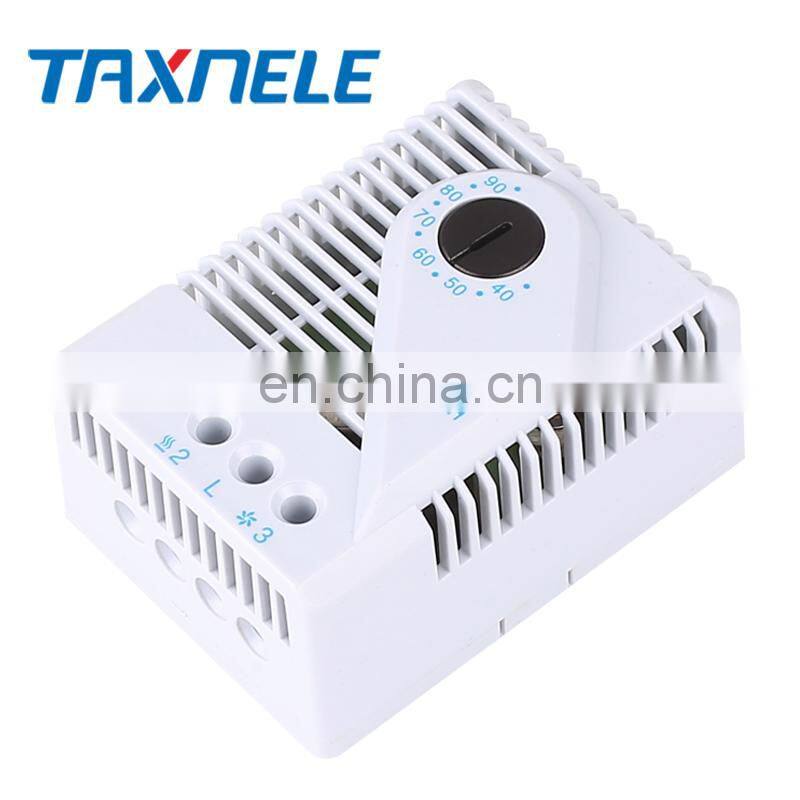

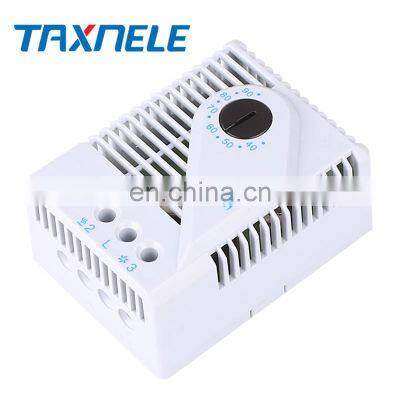

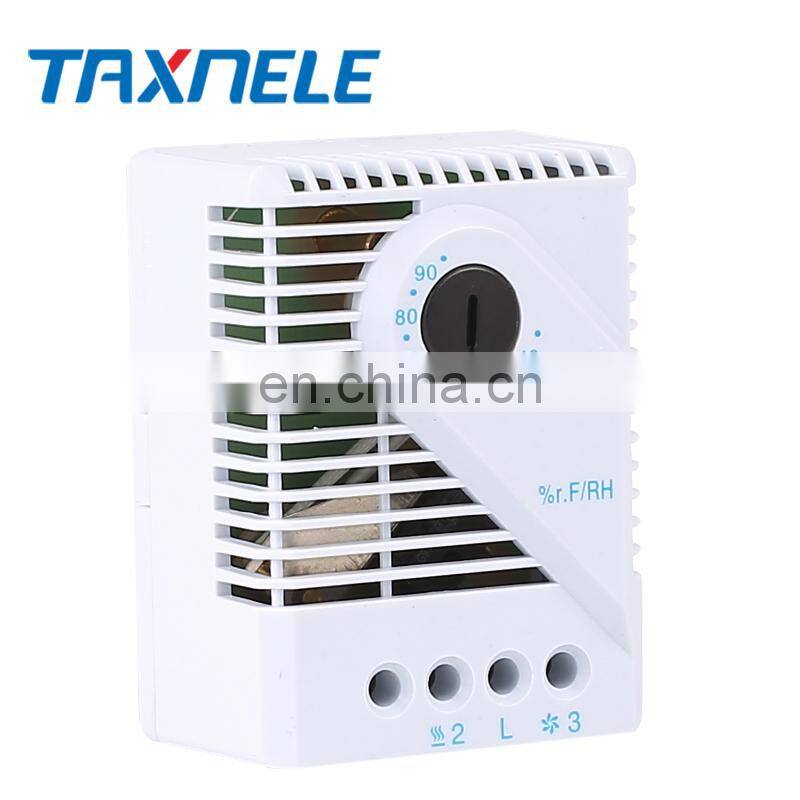

MFR012 Thermostat Hygrostat Mechanical Temperature Controller Humidity Controller Fan Heater Cooler, Mechanical Hygrostat
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Thermostat Hygrostat FZK011 MFR012 Electrical Box Mechanical Temperature Controller Humidity Controller Fan Heater CoolerNegotiableMOQ: 1 -
MFR012 Humidity Controller Humidity Temperature Control Switch Adjustable Hygrostat Temperature and Humidity ControllerNegotiableMOQ: 1
-
XK-W2002 W2002 Digital Thermostat Regulator Plug -50~110C Temperature Controller Switch AC 110-220V Microcomputer SocketNegotiableMOQ: 1
-
220v 12v 24v Timing Timer Temperature Controller Thermostat Regulator Control Time Switch Sensor, ZFX-W3020 Temperature ControlNegotiableMOQ: 1
-
AC 110-220V Digital Thermostat Regulator Heating and Cooling Mode Temperature Controller With Socket + NTC 10K SensorNegotiableMOQ: 1
1.) parameter
| NAME | MFR012 Thermostat |
Description:
- The electromechanical hygrostat MRF012 is designed to control enclosure heaters , so that the dew point is raised when a critical relative humidity of 65% is exceeded. In this way condensation and corrosion is effectively prevented.
Specifications:
- Switch difference:4% RH (±3% tolerance)
- Permissible air velocity:15m/sec
- Contact type:change-over contact
- Contact resistance:< 10mOhm
- Service life:> 100 000 cycles
- Min. switching capacity: 20V AC/DC 100 mA
- Max. switching capacity: 250 VAC, 5 (1) A DC 20W
- EMC: acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3

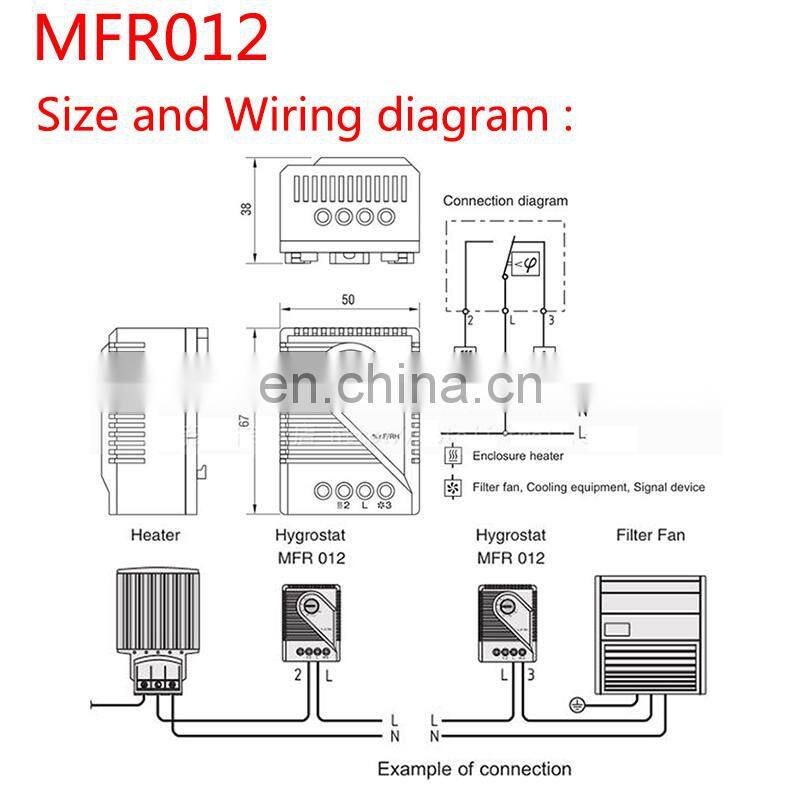

- Connection:3-pole terminal for 2.5mm⊃2;, clamping torque 0.5Nm max.: rigid wire 2.5mm⊃2;,stranded wire (with wire end ferrule) 1.5mm⊃2;
- Mounting: clip for 35mm DIN rail, EN50022
- Casing: plastic according to UL94 V-0, light grey
- Dimensions: 67 x 50 x 38mm
- Fitting position: variable
- Operarting/Storage temperature: 0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F)
- Protection type: IP20
Note:
- Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
- Please allow 1-3mm slight deviation due to manual measurement. Thank you!

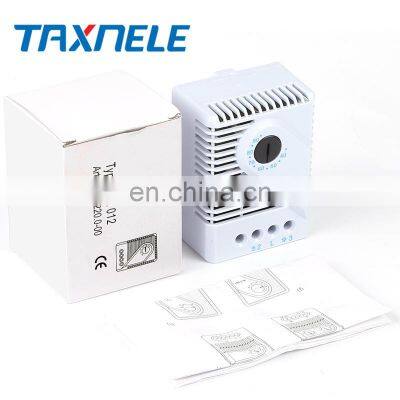

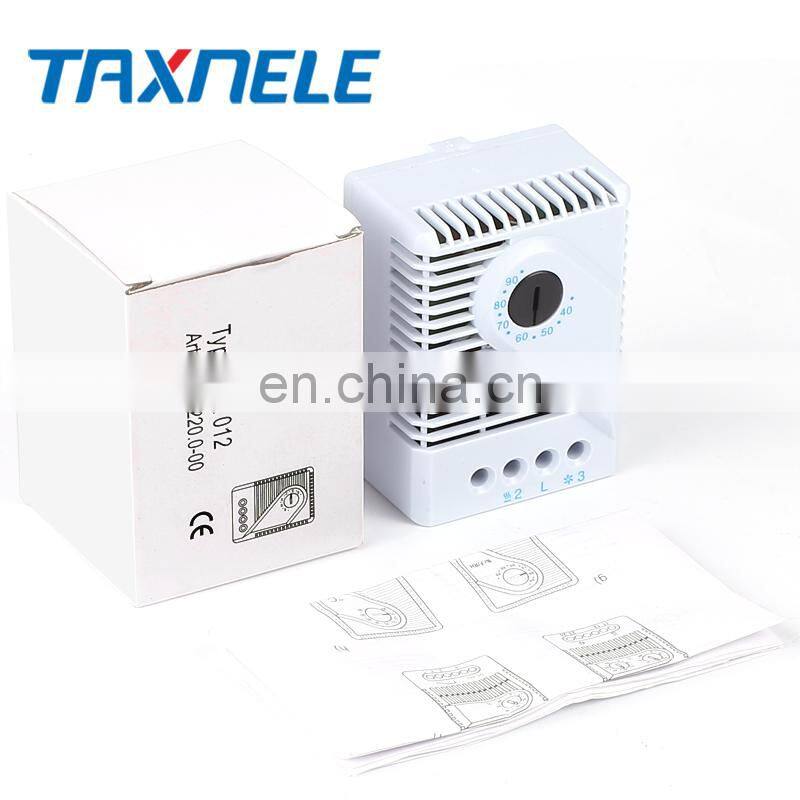

2.)product display
