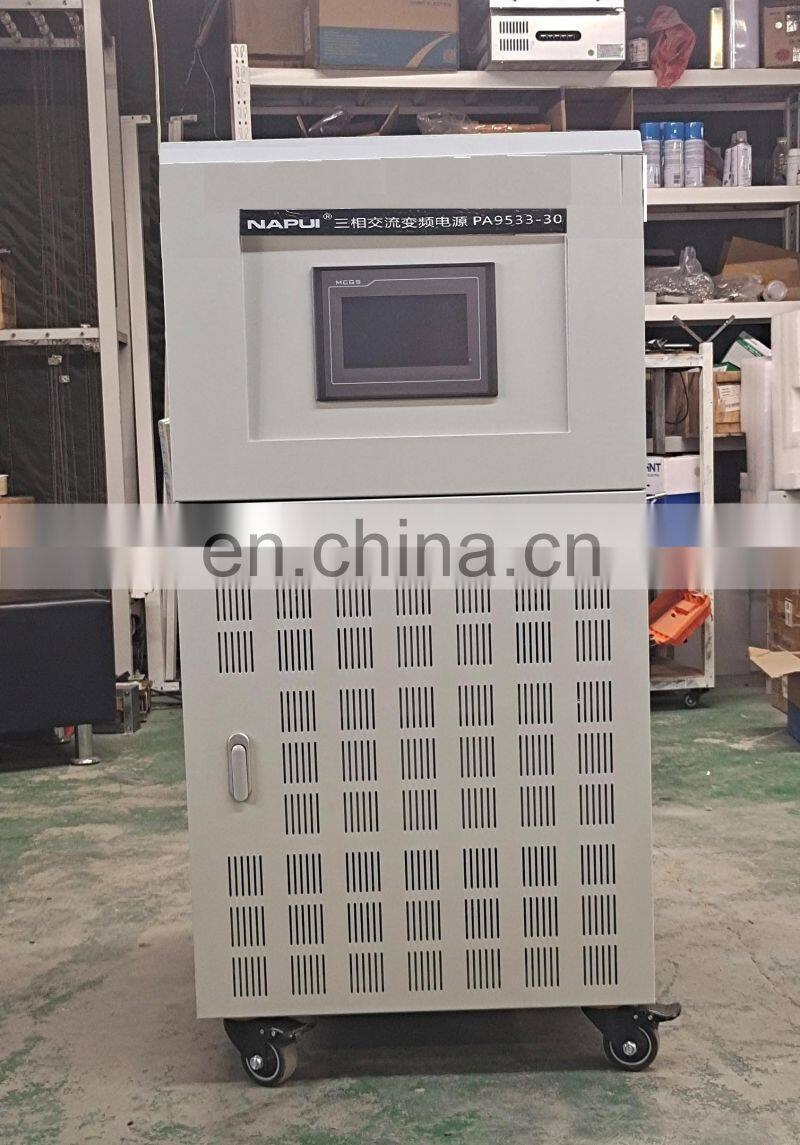

PA9533-30 Three-phase intelligent programmable variable frequency power supply
1.1 Features
l High-frequency SPWM hardware adjustment technology, fast response speed, stable output;
l High-power IGBT/IPM drive, reliable operation and strong overload capacity
l Suitable for various loads such as resistive, inductive, rectifying, etc.;
l With protection functions for abnormal conditions such as overheating, overcurrent, short circuit, etc.;
l With parameter memory function and shortcut key operation mode, it is simple and convenient to use;
l The power supply voltage can be adjusted online, and the output frequency can be selected;
1.2 Main purpose and scope of application
l Professional laboratory (EMI/EMC/safety regulations);
l Manufacturing plant (Quality Assurance/Life Test);
l Testing of products for export, simulating power grids of various countries;
l Product development and testing.
1.3 Working environment conditions
l Working temperature:0~40℃
l Relative humidity: 10%~90%RH
Technical parameters:
|
model |
PA9533-30 |
|||
|
capacity |
30KVA |
|||
|
Input power |
380V±10% AC Three-phase four-wire |
|||
|
Input frequency |
50/60Hz±5Hz |
|||
|
AC output |
Phase |
Three-phase four-wire system |
||
|
model |
Three-phase standard mode |
|||
|
Voltage |
Phase voltage 0-300V, line voltage 0-520V |
|||
|
frequency |
45-65Hz |
|||
|
Three-phase standard mode rated current
|
120V |
84A |
||
|
240V |
42A |
|||
|
Setting accuracy
|
Voltage |
Resolution: 0.1V, accuracy: 0.2%×reading value+0.2%×full scale value |
||
|
frequency |
Frequency resolution: 0.1Hz, accuracy: 0.05% |
|||
|
measurement accuracy |
Voltage |
Resolution: 0.1V, accuracy: 0.2%×reading value+0.2%×full scale value |
||
|
frequency |
Resolution: 0.1Hz, accuracy: 0.05% |
|||
|
Current |
Resolution: 0.1A/1A, accuracy: 0.3%×display value+0.3%×rated output value |
|||
|
power |
Resolution: 0.1kW/0.01kW/0.001kW, accuracy: 0.45%×reading value+0.45%×full scale value |
|||
|
Output waveform |
Standard sine wave |
|||
|
Frequency stability |
≤0.01% |
|||
|
Voltage stability |
≤1% |
|||
|
Waveform distortion |
≤2%(Resistive load) |
|||
|
Crest factor |
3:1 |
|||
|
Source voltage effect |
≤1% |
|||
|
Load effect |
≤1% |
|||
|
Three-phase phase difference |
Three-phase standard mode: 120°±2° |
|||
|
efficient |
≥85% |
|||
|
Load type |
No load type limitation (resistive, inductive, capacitive, rectifier can be used) |
|||
|
Function |
Display method |
Frequency, voltage, current, power and power factor 7-inch touch screen display |
||
|
Online adjustment |
The output voltage and output frequency can be adjusted online |
|||
|
memory function |
Power-down memory function, can memorize the last output mode and parameters |
|||
|
Protective function |
Overload, overcurrent, overvoltage, overheating, short circuit protection, etc. After the protection device is activated, it will send out an alarm signal and display the fault code |
|||
|
Preset function |
The output voltage and output frequency can be preset |
|||
|
Overload capacity
|
1.0Ie |
|||
|
1.1Ie≤I output≤1.2Ie, cut off output after 5s |
||||
|
External communication interface (optional) |
RS-485 |
|||
|
Enclosure rating |
IP20 |
|||
|
Use environment |
Temperature: -10℃~40℃ Humidity: 10%~90% (25℃ without condensation), altitude ≤2000m |
|||
|
Dimensions (W*H*D) |
590*1100*800 mm |
|||
|
weight |
350kg |
|||
