Product Description
Product Overview
RS485 Temperature recorder and RS232 paperless recorder

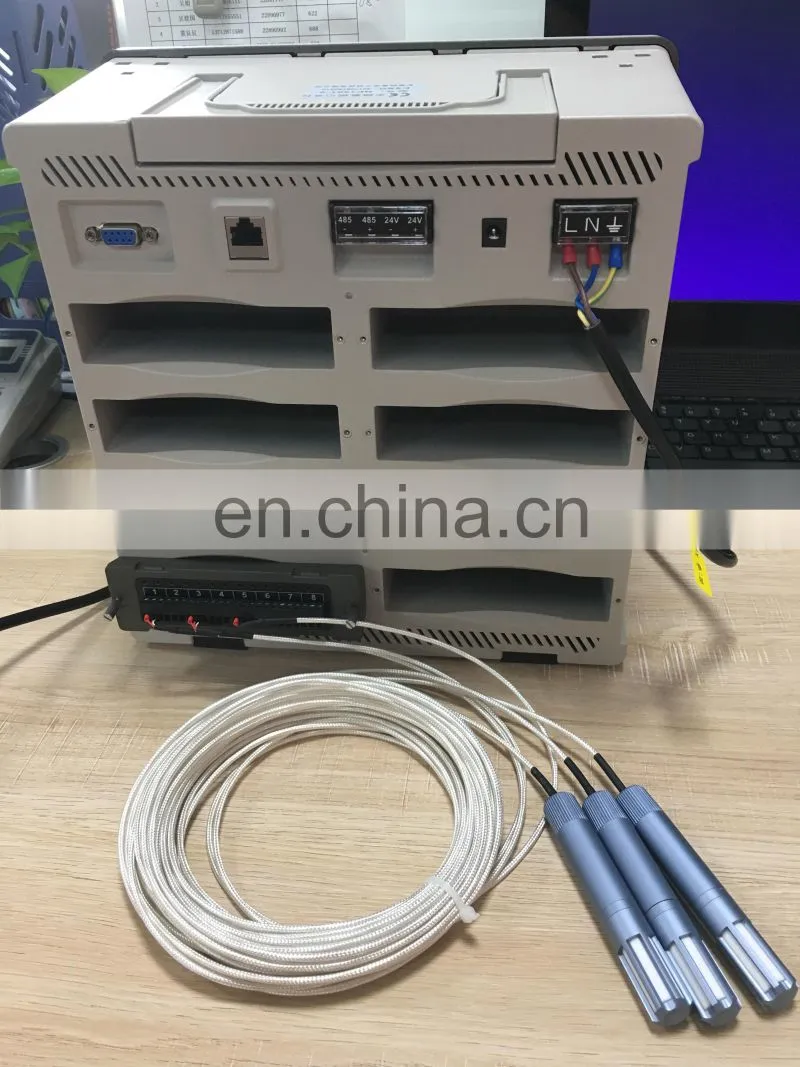

This is multi channels paperless temperature recorder. NAPUI130T (7Inch. color touch screen LCD Display) and NAPUI130D( 10.2Inch. color touch screen LCD display).
The recorder Have RS232,RS485,Ethernet, USB Function.
You can acquisition temperature, pressure, DC Current(0-20mA,4-20mA),DC Voltage(0-5V,0-10V etc) in real time.
FEATURES AT A GLANCE
1.10.2 inch (1024 X 600) TFT LCD high-brightness, clear picture, wide viewing angles.
2.Four wire resistive touch screen (4096 X 4096), and it provides swipe, pinch in/out, and click and drag controls for fast
navigation of common display mode functions.
2.Four wire resistive touch screen (4096 X 4096), and it provides swipe, pinch in/out, and click and drag controls for fast
navigation of common display mode functions.
3.Data acquisition, monitoring, recording and controlling (including voltage, current, temperature, humidity, pressure, vibration,
frequency, flow, liquid level, etc)
frequency, flow, liquid level, etc)
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | |||||
AC/DC Power | Power | 37.5KW | |||||
Power Waste | ≤25VA(The instrument input channel number affects actual power waste) | 2.8 M3 | |||||
Channel Number | 1-64 | 125Ton | |||||
Input Signals | Thermocouple:K,E,R,B,N,T,E.J,S,WRE5-26,WRE3-25 | 96kN | |||||
5 | Hot resistance:Pt100,Cu50 | 96kN | |||||
6 | Current:4-20mA,0-10mA,0-20mA | 60kN | |||||
7 | Voltage:0-5V,0-10V,1-5V | 6750ml | |||||
Measurement accuracy | ≤±0.2%F.S | 500N.m | |||||
Recording rates | 1-19999s | ||||||
Recording capacity(Reference:68M) | 6 Days(64 channels; inter-record gap:1s) 36 Days(64 channels; inter-record gap:1m) | ||||||
Recording model | Recording model | ||||||
Distribution | 24VDC each channel | ||||||
Communications | Standard RS232C (or RS484, USB, Ethernet, GPRS wireless communications, etc.) Standard ModBus RTU communication protocol | ||||||
Alarm type | free to set upper and lower limits for each channel alarm;4 alarms each channel | ||||||
Operating temperature | 0℃~50℃ | ||||||
Operating humidity | <85%R.H | ||||||
Storage temperature | -20℃~70℃ | ||||||
Storage humidity | <95%R.H | ||||||
Materials | ABS | ||||||
mmDimensions | 288*288*200mm | ||||||
Weight | 5.5kg | ||||||
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
