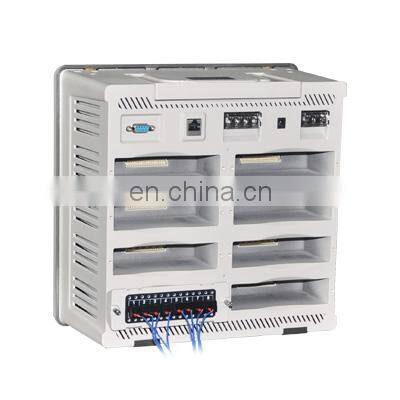

RS485 RS232 Ethernet Temperature Data Logger

Name: RS485 RS232 Ethernet Temperature Data Logger
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

RS485 RS232 Ethernet Temperature Data Logger

Product Description

1.10.2 inch (1024 X 600) TFT LCD high-brightness, clear picture, wide viewing angles.

2.Four wire resistive touch screen (4096 X 4096), and it provides swipe, pinch in/out, and click and drag controls for fast navigation of common display mode functions.

3.Powerful image display and data processing function.

4.Hidden embedded portable shape brings more convenience.

5.Support USB interface and large capacity. Effective support long-term information collection.

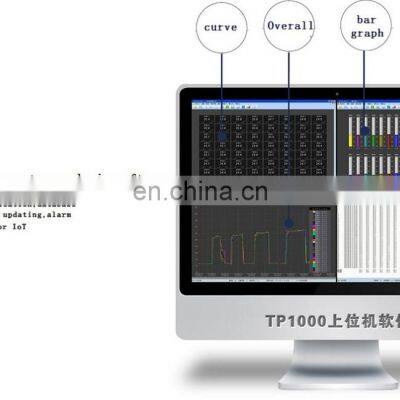

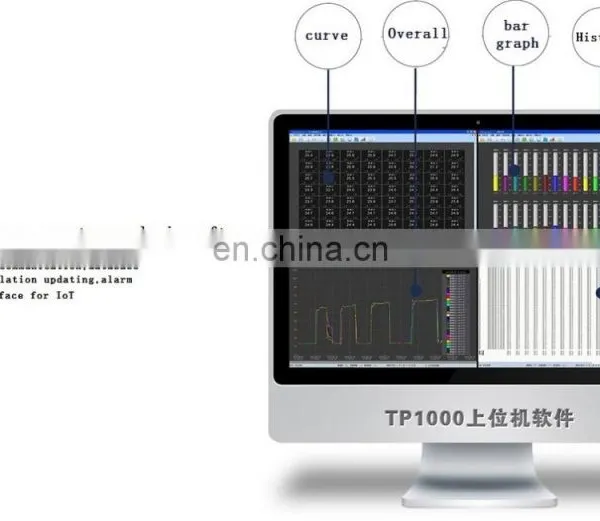

6.Powerful PC analysis software.

7.Data acquisition, monitoring, recording and controlling (including voltage, current, temperature, humidity, pressure, vibration, frequency, flow, liquid level, etc)

Specification:

AC/DC Power	85VAV~265VA/24VDC±10%
Power Waste	≤25VA(The instrument input channel number affects actual power waste)
Channel Number	1-64
Input Signals	Thermocouple:K,E,R,B,N,T,E.J,S,WRE5-26,WRE3-25
	Hot resistance:Pt100,Cu50
	Current:4-20mA,0-10mA,0-20mA
	Voltage:0-5V,0-10V,1-5V
Measurement accuracy	≤±0.2%F.S
Recording rates	1-19999s
Recording capacity(Reference:68M)	6 Days(64 channels; inter-record gap:1s)
	36 Days(64 channels; inter-record gap:1m)
Recording model	loop record
Alarm type	free to set upper and lower limits for each channel alarm;4 alarms each channel
Relay	TP1718
Distribution	24VDC each channel
Communications	Standard RS232C (or RS484, USB, Ethernet, GPRS wireless communications, etc.)
	Standard ModBus RTU communication protocol
Operating temperature	0℃~50℃
Operating humidity	<85%R.H
Storage temperature	-20℃~70℃
Storage humidity	<95%R.H
Materials	ABS
Dimensions	288288200mm
Panel cutout	278*278mm
Weight	3.8KG

Input Module:

TP1708 Input Mode	Input Type	Measuring Range
Hot resistance	Pt100	-200.0~650.0℃
	Cu50	-50.0~150.0℃
Thermocouple	S	500~1750℃
	R	500~1750℃
	B	500~1800℃
	K	-50.0~1370℃
	N	0~1300℃
	E	0~1300℃
	J	0~760℃
	T	-100~400℃
	WRE5-26	0~2300℃
	WRE3-25	0~2300℃
Voltage	0-10V	0.000V~10.000V
	0-5V	0.000V~5.000V
	0-1V	0.000V~1.0000V
	±500mV	-500.0mV~+500.00mV
	±100mV	-110.00mV~+110.00mV
	1-5V	1.000V~+5.000V
Current	4-20mA	4.00mA~+20.00mA
	0-20mA	0.00mA~20.00mA
	0-10mA	0.00mA~10.00mA
Resistance	100Ω	0~100Ω
TP1728 Input Type	4 channel for temperature/humidity; TP2300 Digital signal for temperature/humidity.	temperature/humidity: -20~125℃/5%~95%

Packaging & Shipping

Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.

The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.

Our Services

Dongguan NAPUI Electronic Technology Co., Ltd is 8 years specialist digital power meter and Paperless recorder Manufacturer in China.

All the power meter , paperless recorder and neagtive ion tester waranty are 12 months.

All the items are EXW.
