Product Description
K type thermocouple temperature data logger, Temperature daq system
1.10.2 inch (1024 X 600) TFT LCD high-brightness, clear picture, wide viewing angles.
2.Four wire resistive touch screen (4096 X 4096), and it provides swipe, pinch in/out, and click and drag controls for fast navigation of common display mode functions.

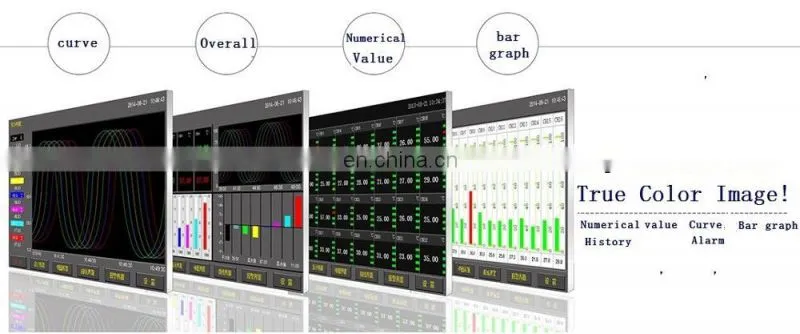

3.Powerful image display and data processing function.
4.Hidden embedded portable shape brings more convenience.
5.Support USB interface and large capacity. Effective support long-term information collection.

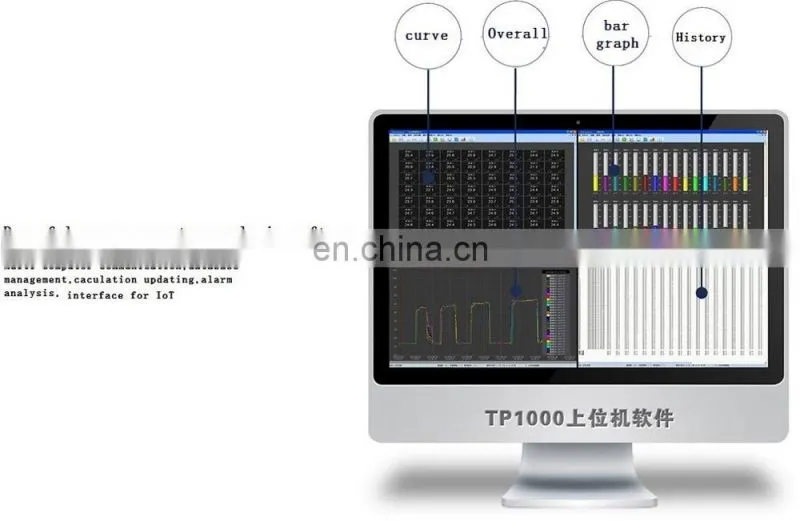

6.Powerful PC analysis software.
7.Data acquisition, monitoring, recording and controlling (including voltage, current, temperature, humidity, pressure, vibration, frequency, flow, liquid level, etc)
Specification:
|
AC/DC Power |
85VAV~265VA/24VDC±10% |
|
Power Waste |
≤25VA(The instrument input channel number affects actual power waste) |
|
Channel Number |
1-64 |
|
Input Signals |
Thermocouple:K,E,R,B,N,T,E.J,S,WRE5-26,WRE3-25 |
|
Hot resistance:Pt100,Cu50 |
|
|
Current:4-20mA,0-10mA,0-20mA |
|
|
Voltage:0-5V,0-10V,1-5V |
|
|
Measurement accuracy |
≤±0.2%F.S |
|
Recording rates |
1-19999s |
|
Recording capacity(Reference:68M) |
6 Days(64 channels; inter-record gap:1s) |
|
36 Days(64 channels; inter-record gap:1m) |
|
|
Recording model |
loop record |
|
Alarm type |
free to set upper and lower limits for each channel alarm;4 alarms each channel |
|
Relay |
TP1718 |
|
Distribution |
24VDC each channel |
|
Communications |
Standard RS232C (or RS484, USB, Ethernet, GPRS wireless communications, etc.) |
|
Standard ModBus RTU communication protocol |
|
|
Operating temperature |
0℃~50℃ |
|
Operating humidity |
<85%R.H |
|
Storage temperature |
-20℃~70℃ |
|
Storage humidity |
<95%R.H |
|
Materials |
ABS |
|
Dimensions |
288*288*200mm |
|
Panel cutout |
278*278mm |
|
Weight |
3.8KG |
Input Module:
|
TP1708 Input Mode |
Input Type |
Measuring Range |
|
Hot resistance |
Pt100 |
-200.0~650.0℃ |
|
Cu50 |
-50.0~150.0℃ |
|
|
Thermocouple |
S |
500~1750℃ |
|
R |
500~1750℃ |
|
|
B |
500~1800℃ |
|
|
K |
-50.0~1370℃ |
|
|
N |
0~1300℃ |
|
|
E |
0~1300℃ |
|
|
J |
0~760℃ |
|
|
T |
-100~400℃ |
|
|
WRE5-26 |
0~2300℃ |
|
|
WRE3-25 |
0~2300℃ |
|
|
Voltage |
0-10V |
0.000V~10.000V |
|
0-5V |
0.000V~5.000V |
|
|
0-1V |
0.000V~1.0000V |
|
|
±500mV |
-500.0mV~+500.00mV |
|
|
±100mV |
-110.00mV~+110.00mV |
|
|
1-5V |
1.000V~+5.000V |
|
|
Current |
4-20mA |
4.00mA~+20.00mA |
|
0-20mA |
0.00mA~20.00mA |
|
|
0-10mA |
0.00mA~10.00mA |
|
|
Resistance |
100Ω |
0~100Ω |
|
TP1728 Input Type |
4 channel for temperature/humidity; TP2300 Digital signal for temperature/humidity. |
temperature/humidity: -20~125℃/5%~95% |
Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.
The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Dongguan NAPUI Electronic Technology Co., Ltd is 8 years specialist digital power meter and paperless recorder Manufacturer in China.
All the power meter , paperless recorder and negative ion tester waranty are 12 months.
All the items are EXW.
