96*96 COLDPROOF LNF22E Panel Mount LED Digital Volt Power Meter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
COLDPROOF LNF26E LED Mounting Digital Voltmeter Power Meter
-
Cost-effective LNF33 72*72mm Small 3-phase Digital Ampere Meter
-
72*72 Three Phase Digital Voltmeter Ammeter Multimeter
-
Factory Lcd Digital Rs485 Communication Panel Multimeter
-
Super Discount Lcd Digital Voltmeter Ammeter Panel Multimeter
-
LNF53 Bidirectional Energy Meter 3 Phase Digital Power Meter
Product Description
Product Description
Product Name: 96*96 COLDPROOF LNF22E panel mount LED digital volt power meter
This series of meters have programmable transformation ratio.They can be expanded with functions of digital input, relay output, analog output and communication supporting Modbus-RTU protocol;They provide various installation dimensions to facilitate the directly replacing of analog pointer voltmeter; They can be widely used in different control systems, power transformation and distribution automation, industrial automation and intelligent buildings.
Technical Parameter
Accuracy | 0.5% | |
Data update rate | 1s | |
Signal Input | Rated current | AC 1A,5A |
Rated voltage | AC 100V,380V | |
Overload | Continuous:2In,instantaneous:10In/5s Continuous:1.2Un,instantaneous:2Un/1min | |
Energy consumption | ≤0.1VA | |
Fequency | 45~65HZ | |
Communication | RS485 interface | Modbus-RTU protocol, baud rate up to 9600bps |
Energy pulse | Optocoupler isolation ,pulse width 80ms±20% | |
Digital Input | Optocoupler isolation ,passive dry contact | |
Relay Output | Contact capacity AC250V 5A or DC 30V 5A | |
Auxiliary power supply | Working range | AC/DC 80~270V |
Energy consumption | ≤3VA | |
Environment condition | Working temperature | -10~55℃ |
Storage temperature | -25~70℃ | |
Relative humidity | ≤93%RH | |
Altitude | ≤2500m | |
Insulation | Signal power supply output terminal to case resistance ≥100MΩ | |
Withstand voltage | Power supply，input and output ≥2kv | |
Protection level | IP54 |
Model Selection
LNF22E | LNF26E | LNF32E | LNF36E | |||||
Dimension(mm) | 96x96x34 | 96x96x34 | 96x96x34 | 96x96x34 | ||||
Real-time measurement | Single-phase voltage | Three-phase voltage | Single-phase current | Three-phase current | ||||
LED display | ■ | ■ | ■ | ■ | ||||
RS485 | □ | □ | □ | □ | ||||
Note：“■”Yes，“□”Optional | ||||||||
Related Products

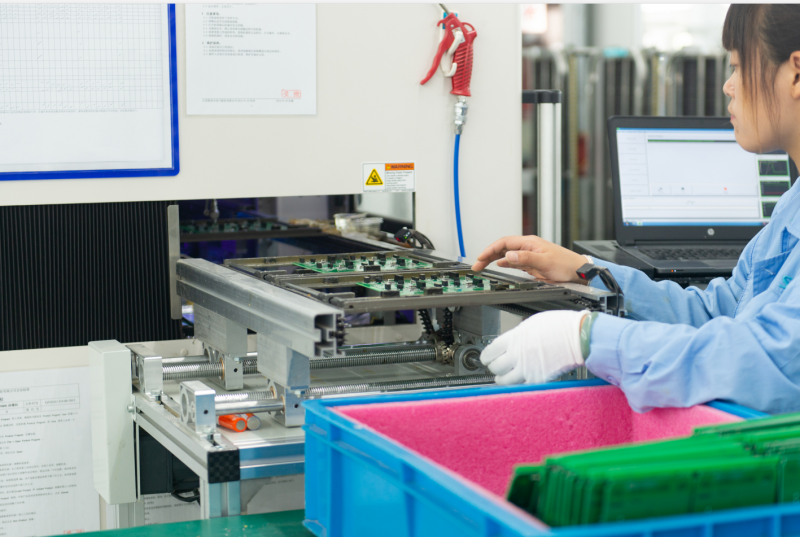

Company Strength
