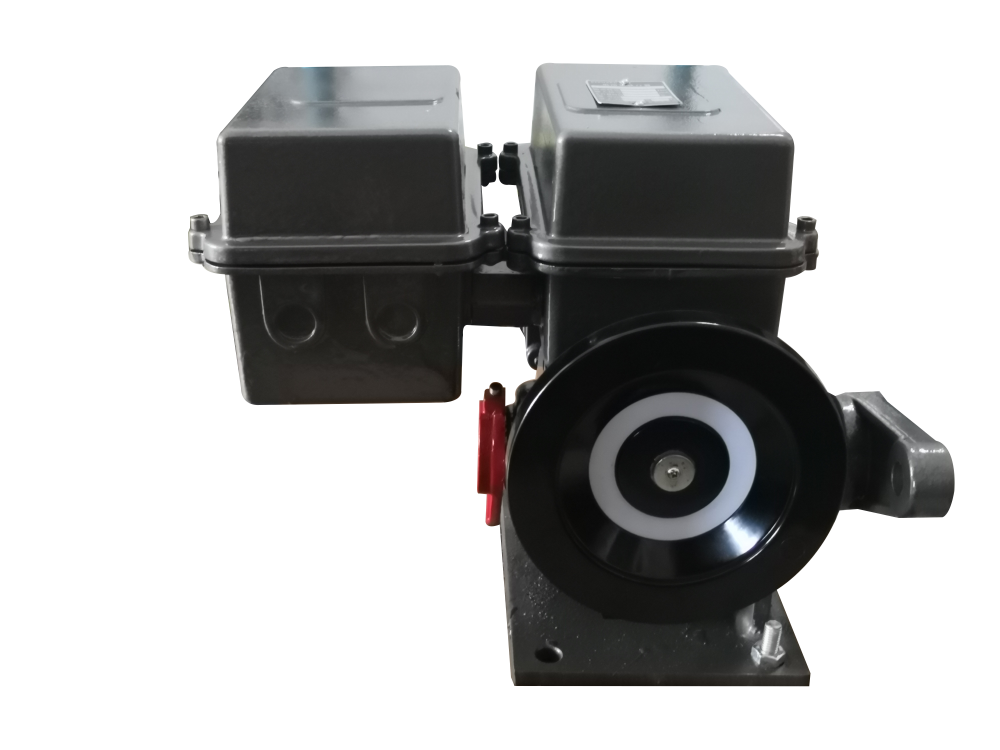

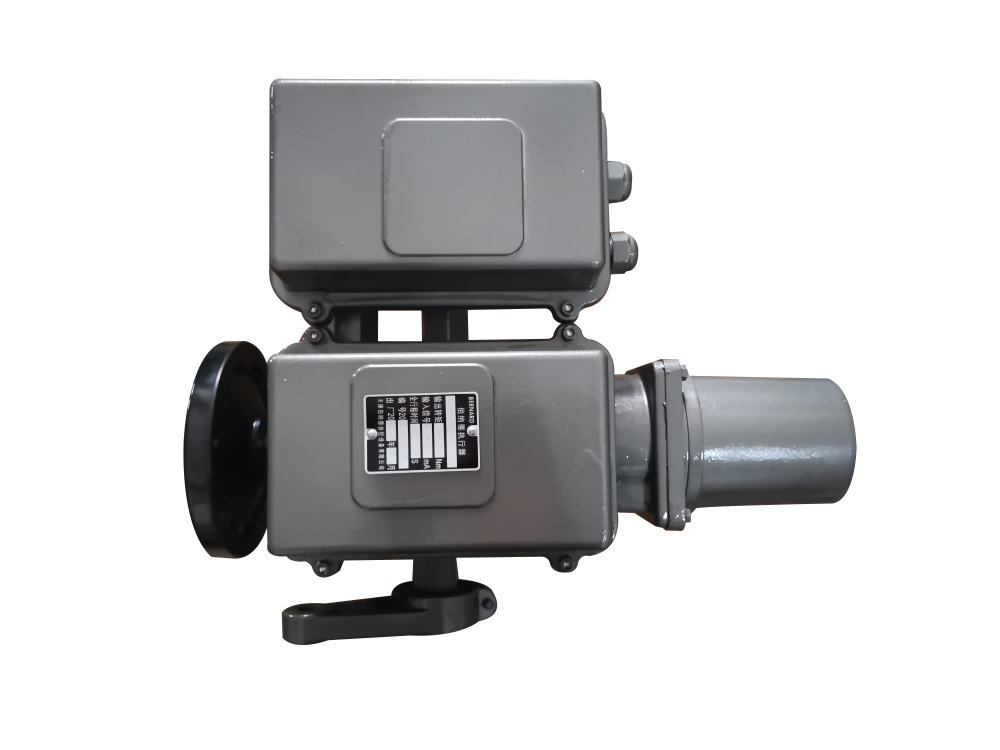

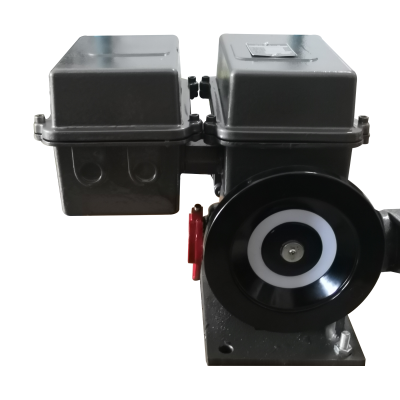

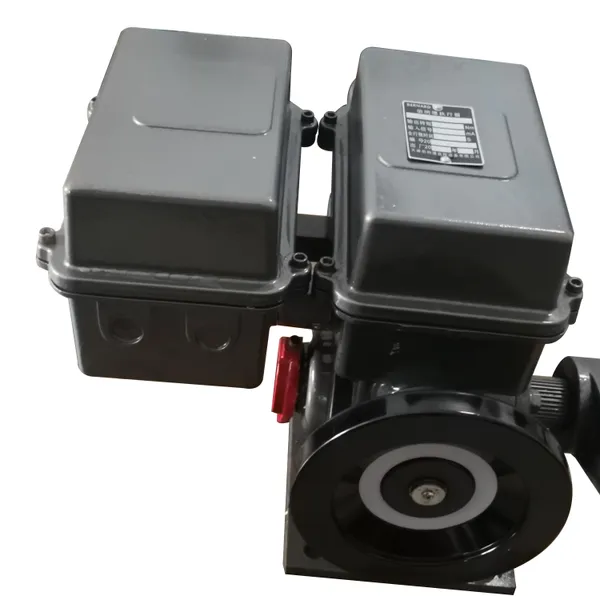

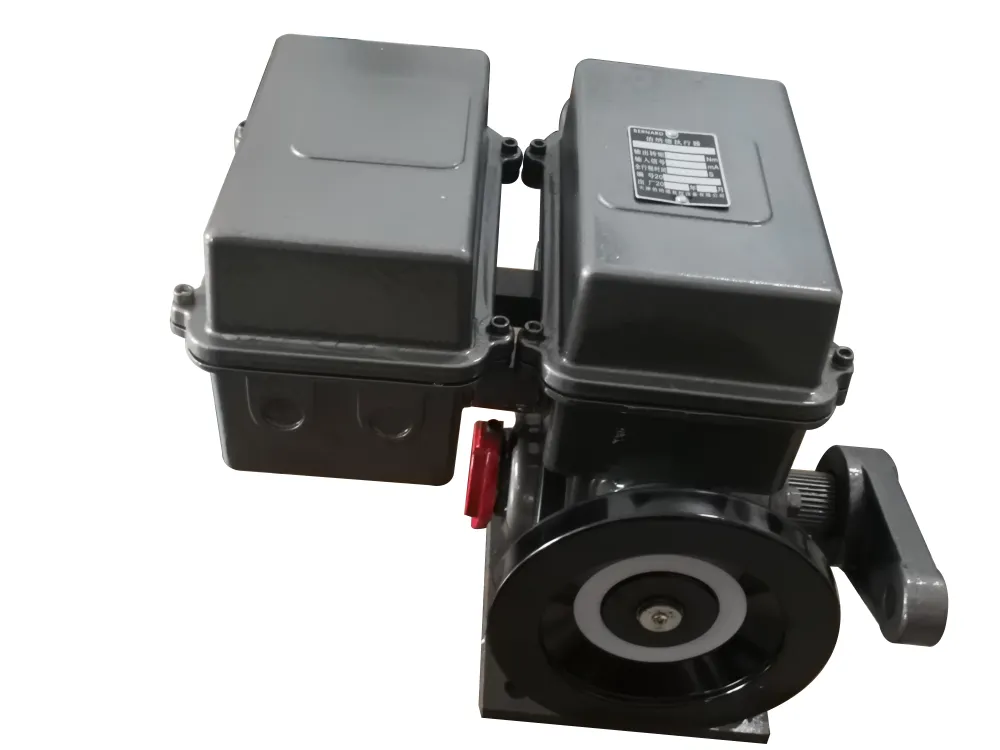

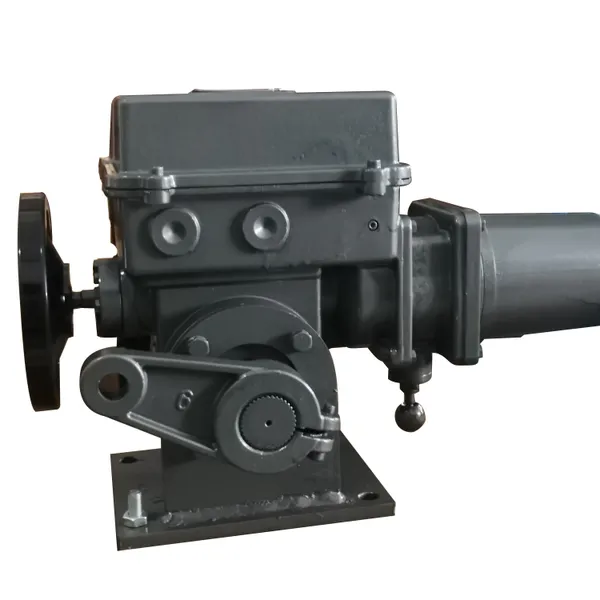

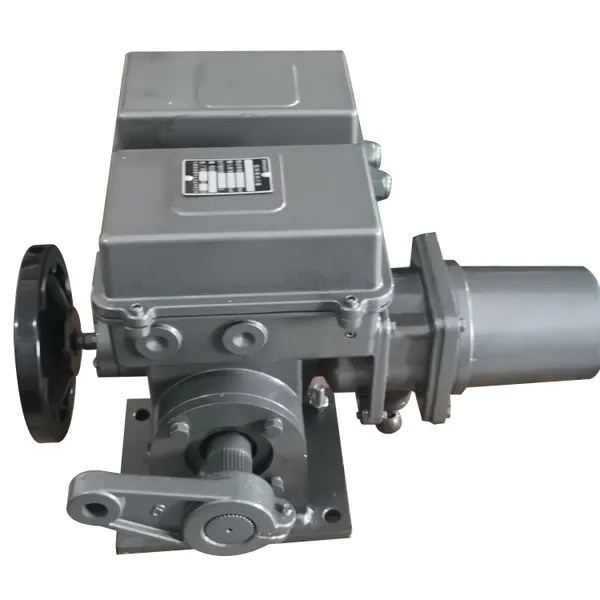

BS-60 /KF30H Base Type Electric Actuator

BS-60 /KF30H Base type electric actuator

Product variety and form

SD series intelligent electric actuator is a combination structure, it can pass different reducer parts and different specifications of the motor

A combination of actuators of different varieties and specifications.

SD series electric actuator can be divided into three types according to the output mode.

1. Angular stroke output pushing torque. 90 around the corner.

2, straight stroke output thrust pull, linear displacement.

3. Multi-turn output torque, more than 360 rounds of rotation.

SD series electric actuator can be divided into two types according to installation mode:

1. Direct connection - directly connected to the valve through the flange of the output part of the actuator, so that the actuator can be installed directly

Installed on the pipeline more than turn, Angle stroke, straight stroke are installed in this way.

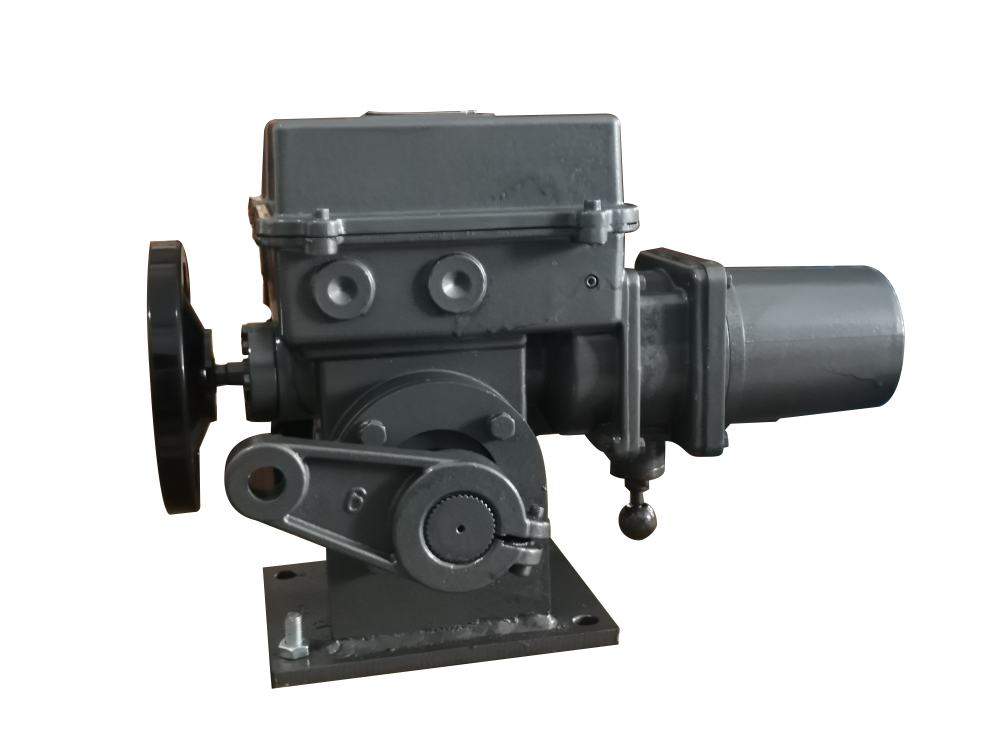

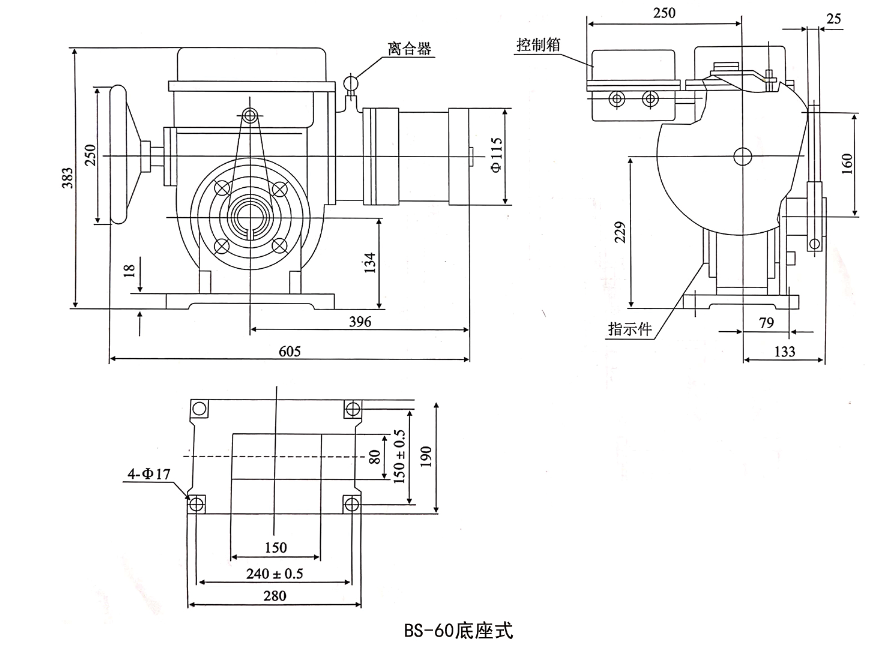

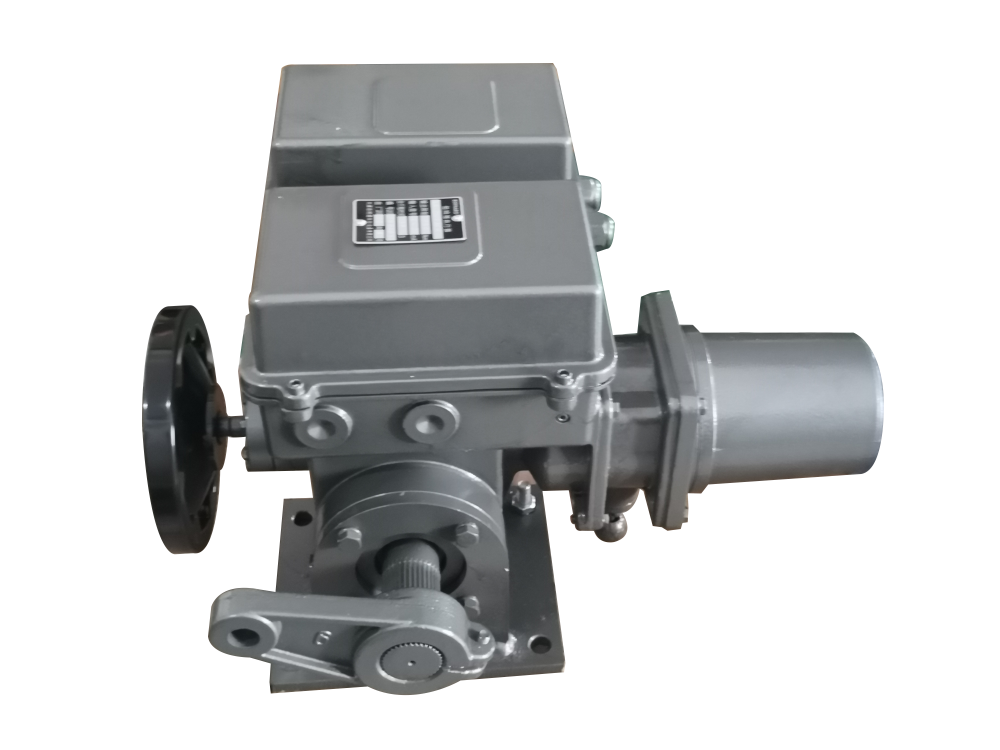

2, base type - actuator is connected with the valve through the output arm and lever, at this time the actuator needs to be installed on the - foundation

On the pedestal, only angular travel is installed in this way.
