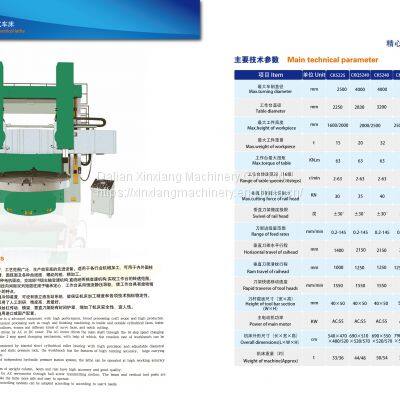

heavy duty two column lathe machine vertical car

Name: heavy duty two column lathe machine vertical car
Brand: Xinxiang Machinery
Availability: InStock

FOB Price

USD $30000 - $500000 / Piece

1 Piece(Min.Order)

Supply Ability 50 Piece / Pieces per Month
Port dalian
Payment TermsT/T L/C Credit Card PayPal Cash
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Xinxiang Machinery	Place of Origin	China
Model Number	CK52 SERIES	Type	Horizontal
Certification	ISO 9001	After-sales Service Provided	Engineers available to service machinery overseas
Weight	30T-240T	Dimension(LWH)	690550520/570
Condition	New	Power(W)	AC:55KW-110KW
Automatic Grade	Automatic	CNC or Not	CNC
Max. Swing Diameter	2500mm-8000mm

Product Description

Company Profile

Dalian Xinxiang Machinery Co., Ltd. is a machine tool product manufacturer which devotes to product scientific research, production and sales. The products were sold all over the country and exported to Southeast Asia, Russia, South Africa and other countries. The company covers an area of 42,000 square meters, with a construction area of 20,000 square meters and assets of 120 million yuan.
Dalian Xinxiang Machinery Co., Ltd. has sophisticated production and processing equipment, strong technical force, and a professional technical team for mechanical research and development. The company has a sound quality management system. It has passed ISO9001 quality management system certification. It has been rated as a high-quality enterprise by the National Quality Assurance Center. It is a famous brand product in Liaoning. , Liaoning Province famous trademark contract and trustworthy unit, Liaoning Province AAA-level credit enterprise.
The purpose of Dalian Xinxiang Machinery Co., Ltd. is to produce first-class products, guarantee first-class quality, and provide first-class service. We warmly welcome friends from all walks of life to visit us and seek common development.

CK5240 DOUBLE COLUMN VERTICAL LATHE

PRODUCT FEATHRES---CNC VERTICAL LATHE CK5240

1. CNC heavy duty double column vertical lathe.

2. Equipped with CNC DVT turret, protective cover and line cutting machine.

3. Double column vertical lathe can process large cone, any circular arc camber and turning threads.

4. CK5240 is suitable for high speed steel and carbide cutting tools.

5. Turret and ram associate to feed.

Product Paramenters

CNC Double Column Vertical Lathe Machine
Name	Unit	CK5225	CK5240	CK5250	CK5263	CK5280
Max cutting diameter of workpiece	mm	2500	4000	5000	6300	8000
Workbench diameter	mm	2250	3200	4500	5700	6300/7200
Max height of workpiece	mm	1600/2000	2000/2500/3150	2000/2500/3150	2500/3150/4000	3500/4000/5500
Max weight of workpiece	t	15	32	50	80/125	60/80/150
Workbench speed range	r/min	2-63	0.5-45	0.5-40	0.5-40	0.32-32
Workbench speed series	step	two gears no step	two gears no step	two gears no step	two gears no step	two gears no step
Main motor power	kw	DC55	DC55	DC75	DC90	DC132
Max workbench torque	kn.m	63	63	100	150	200

CNC Control System: GSK/FANUC/SIMENS
MOQ: 1 set.Delivery Time: 75-90 Working Days upon receipt of the 30% deposit.
