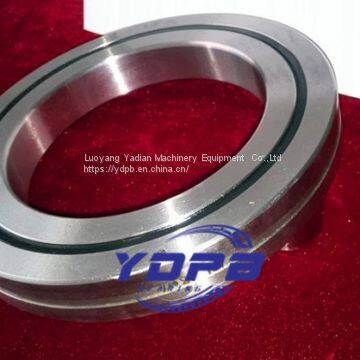

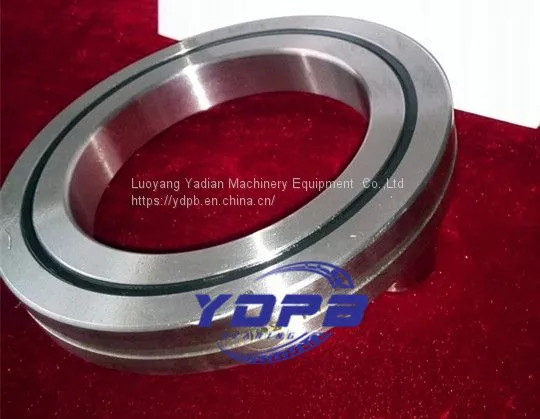

CRBH8016UUT1P5 china crossed roller bearing 80x120x16mm

FOB Price

USD $1 - $100000 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shanghai
Payment Terms:T/T L/C
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	OEM	Place of Origin:	China	Model Number:	CRBH8016
Number of Row:	Single Row	Precision Rating:	P4	Outside Diameter:	12, 500
Bore Size:	24, 500

Product Description

(A means open type, AUU means sealed on both sides.)

CRBH5013A, CRB5013AUU Cross Roller Bearing belong to IKO Model CRBH series cross roller bearing(with separator). It's ultra-thin type, has integrated inner & outer ring, need housing and flange for fixing during installation.

Features:
CRBH series cross roller bearing has stable rotational precisioin and torque, suited for limited space, and where inner ring and outer ring rotation required.

Open Type	Sealed Type	d (mm)	D (mm)	B (mm)	C (kN)	C0 （kN)	Mass (kg)
CRBH 208 A	CRBH 208 A UU	20	36	8	2.91	2.43	0.04
CRBH 258 A	CRBH 258 A UU	25	41	8	3.12	2.81	0.05
CRBH 3010 A	CRBH 3010 A UU	30	55	10	7.6	8.37	0.12
CRBH 3510 A	CRBH 3510 A UU	35	60	10	7.9	9.13	0.13
CRBH 4010 A	CRBH 4010 A UU	40	65	10	8.61	10.6	0.15
CRBH 4510 A	CRBH 4510 A UU	45	70	10	8.86	11.3	0.16
CRBH 5013 A	CRBH 5013 A UU	50	80	13	17.3	20.9	0.29
CRBH 6013 A	CRBH 6013 A UU	60	90	13	18.8	24.3	0.33
CRBH 7013 A	CRBH 7013 A UU	70	100	13	20.1	27.7	0.38
CRBH 8016 A	CRBH 8016 A UU	80	120	16	32.1	43.4	0.74
CRBH 9016 A	CRBH 9016 A UU	90	130	16	33.1	46.8	0.81
CRBH 10020 A	CRBH 10020 A UU	100	150	20	50.9	72.2	1.45
CRBH 11020 A	CRBH 11020 A UU	110	160	20	52.4	77.4	1.56
CRBH 12025 A	CRBH 12025 A UU	120	180	25	73.4	108	2.62
CRBH 13025 A	CRBH 13025 A UU	130	190	25	75.9	115	2.82
CRBH 14025 A	CRBH 14025 A UU	140	200	25	81.9	130	2.96
CRBH 15025 A	CRBH 15025 A UU	150	210	25	84.3	138	3.16
CRBH 20025 A	CRBH 20025 A UU	200	260	25	92.3	169	4
CRBH 25025 A	CRBH 25025 A UU	250	310	25	102	207	4.97
