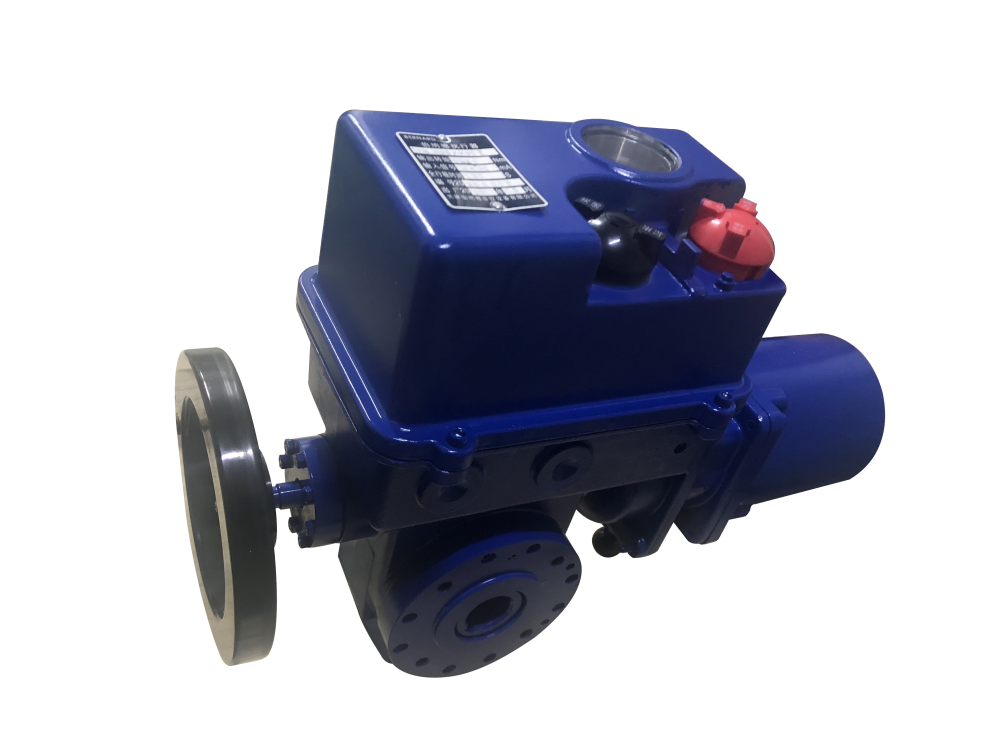

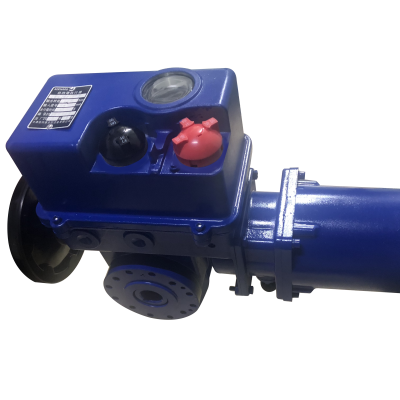

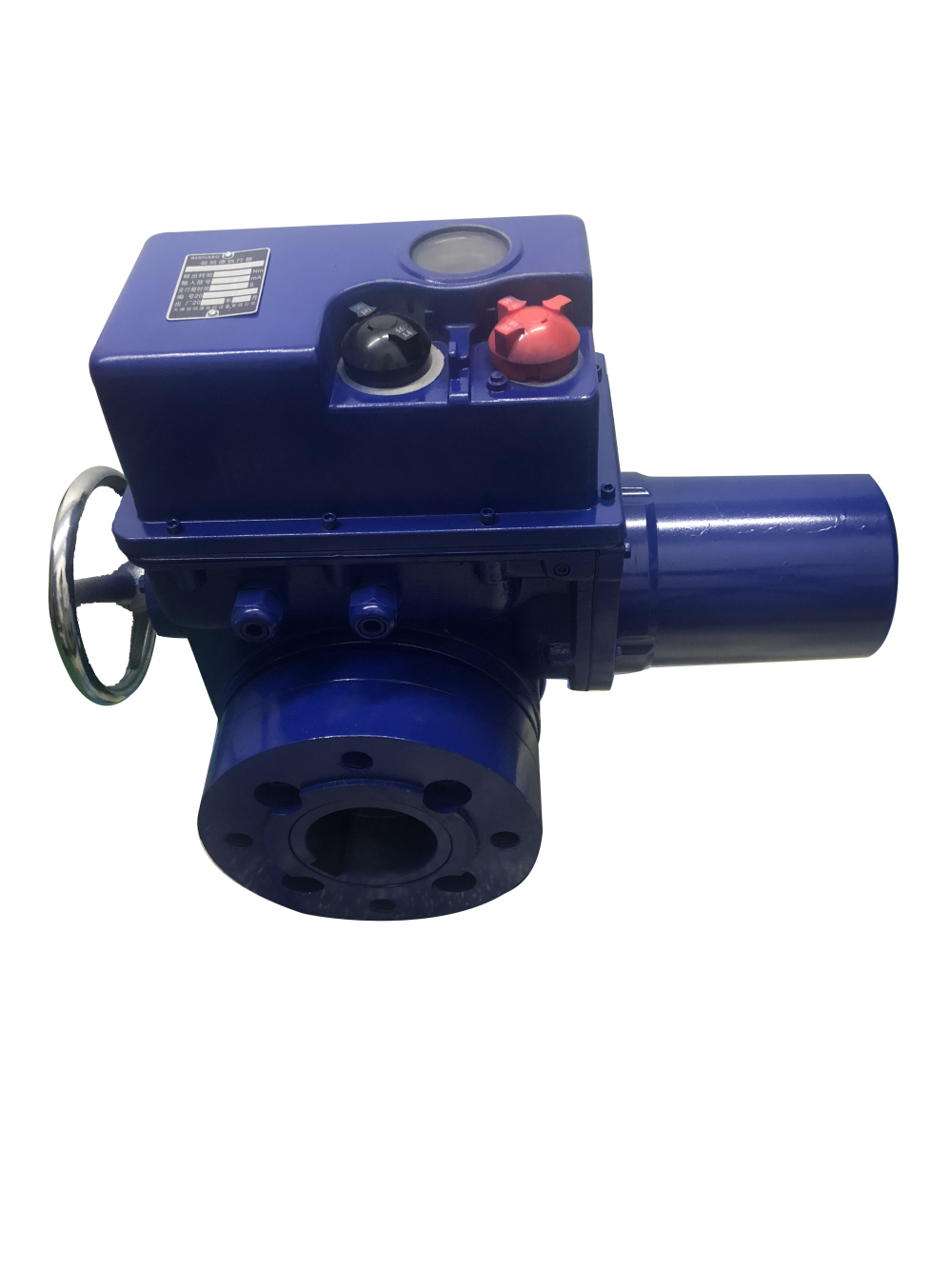

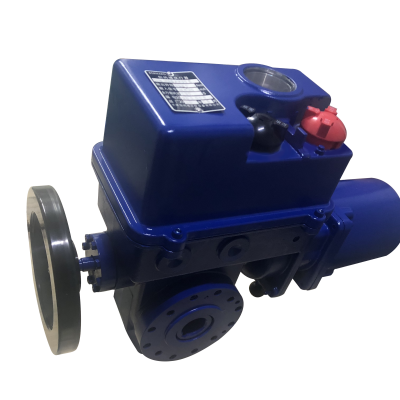

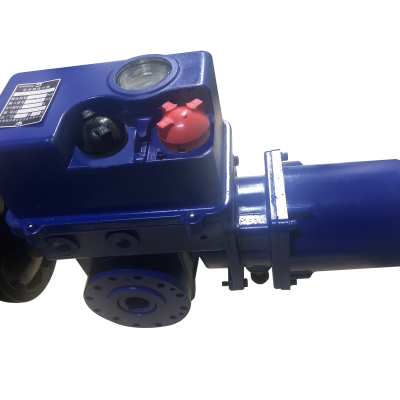

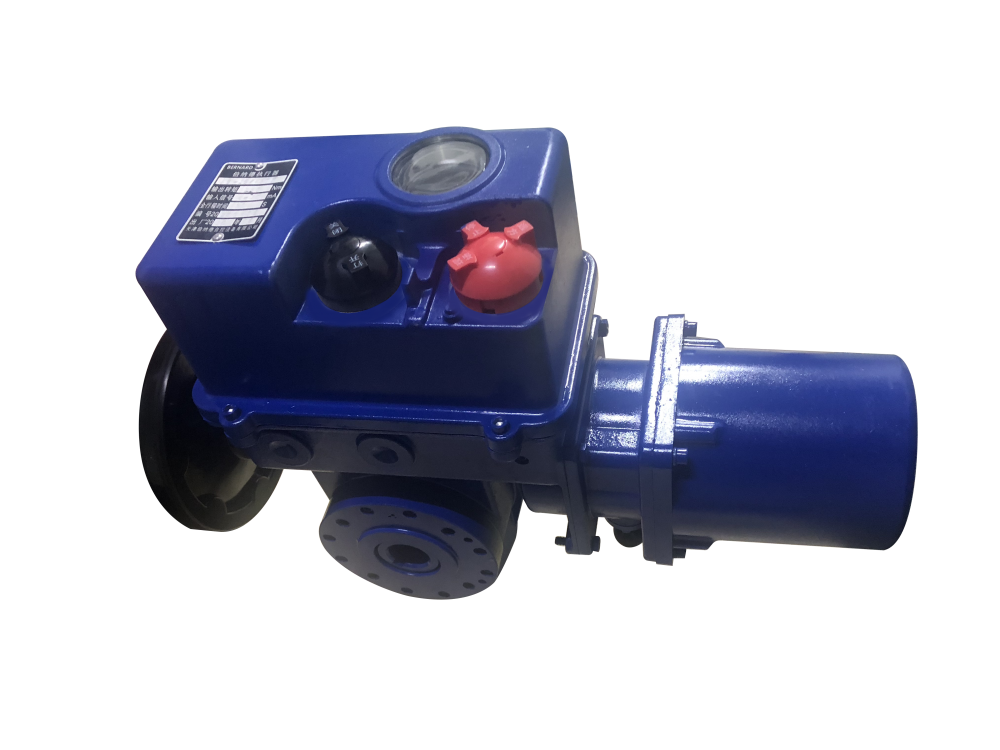

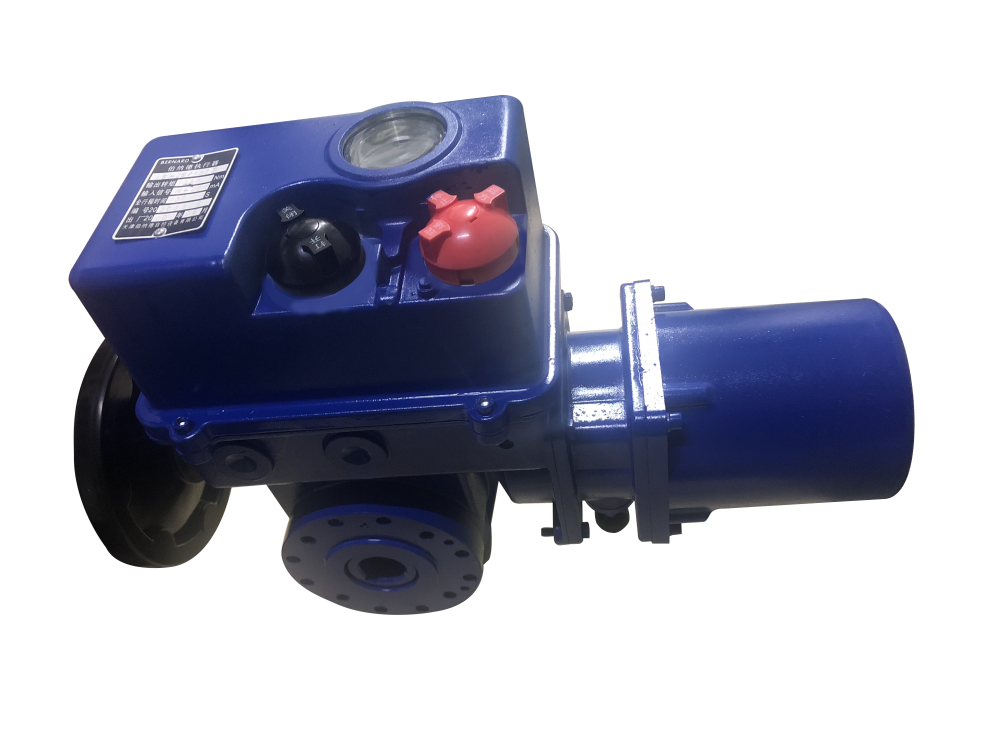

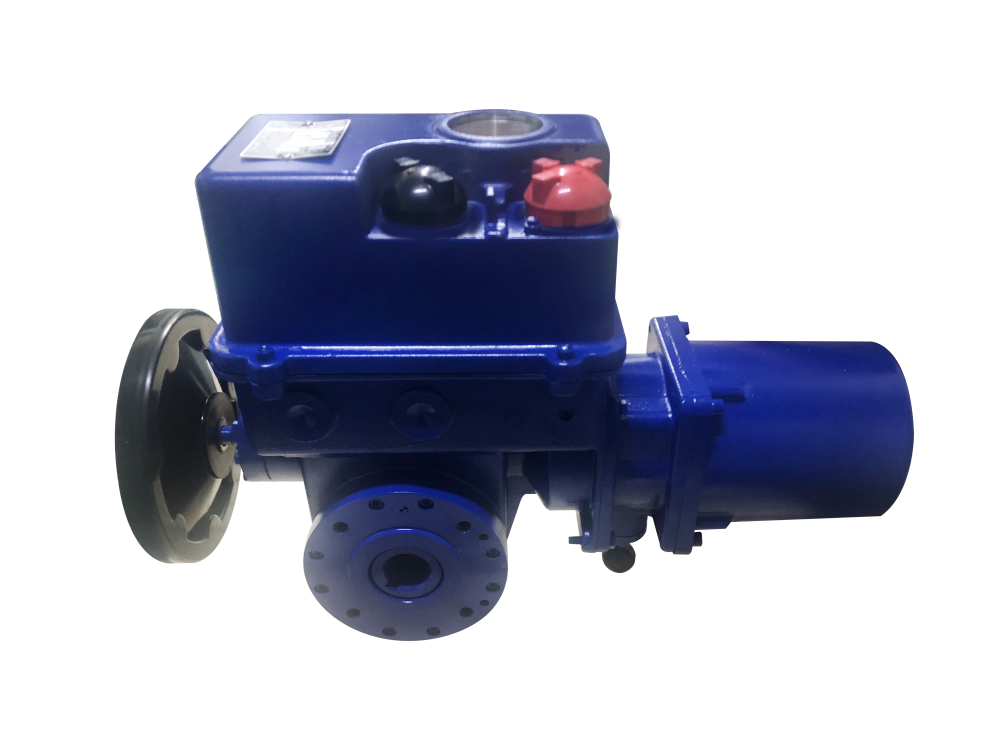

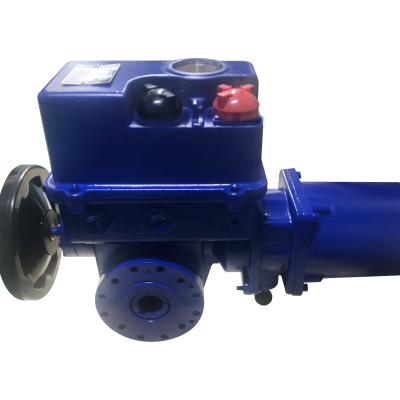

BS-60 /KF30Z Intelligent Electric Actuator

BS-60 /KF30Z intelligent electric actuator

1. Intelligent protection:

In overheating, undercooling, overtorque, over limit, overspeed and other self-diagnosis functions, such as when the actuator in the control process

When the speed is abnormal, the motor is forbidden to continue to energize.

 When the actuator control signal is lost, the operating state of the actuator can be pre-set (keep in situ, fully open, fully closed, any bit

0-100%).

 The machine also has automatic detection, recovery, alarm functions: for example, the actuator motor blocked into the protection state can automatically enter the well output

Alarm contact signal. Local flash screen alarm.

2, good stability: the sensor uses precision conductive plastic potentiometer, input and output chip uses 12-bit AD and D/A conversion

Device.

3, automatic calibration: on the valve zero and full setting, sampling potentiometer as long as the work in the effective area can, without precision

Adjust the potentiometer input calibration code, the actuator will automatically record the valve "fully closed", and "fully open" position.

4, the actuator with a digital display window, the upper row (green) display control code or input control signal value, the next row (red)

Color) display valve position value, actuator fault state prompt.

5. The position of "zero" and "full range" can be set arbitrarily. The setting range of the range can be set at zero to 75%

25-100% set full degree.
