China Hot Selling1.3m*2.5m CO2 Laser Nonmetal Cutting And Engraving Machine Corbon Laser Cutting And Engraving Machine

HM-series laser cutting machine adopts DSP digital control technology and integrated design, with high value performance. Latest software could be used together with professional drawing software plugins such like CorelDraw,Auto CAD etc. And Support AI, PLT, DXF, DST and more format files. The first one in laser industry that adopts cable data interface, supports hot plug and transfers data instantly. The work efficiency is highly improved.

1. High quality CO2 laser tube, life expectancy 10000 hours and guarantee 9 months fix.
2. Full aluminum enclosure laser power, strong stability performance.
3. Lens and mirror import from the USA with high reflectivity and small focal spot.
4. LCD with Chinese and English version, humanized control panel
5. Korea imported adjustable high speed guide rail, more smoothly running.
6. Adjustable Korea Winner high speed guide line which ensures the smooth moving.
7. Leadshine stepper motor and drive system,strong stability performance
8. Authorized Han Ma system operating software
9. Milling machine processing to ensure the life time and precision of the laser machine body.

Working Area:1300*2500mm
Laser power: 80w 100w 120w 150w (optional)
Resolution:±0.025mm
Repositioning Accuracy:±0.01mm
Operating Voltage:AC220v±100% ,50HZ/60HZ
Operating Temperature:0-45℃
Operating Humidity:5%-95%
Supported format:DWD,DXF,JPGE,PCX,AI,TIFF,PLT,CDR,BMP,GIF
Dimension:3180X2103X1110mm

Printing, clothes, leather, furniture, toy, advertising, decoration, art craft, ,model, electric appliance, plastic, handbag, glove, computer embroider, packaging and paper industry.

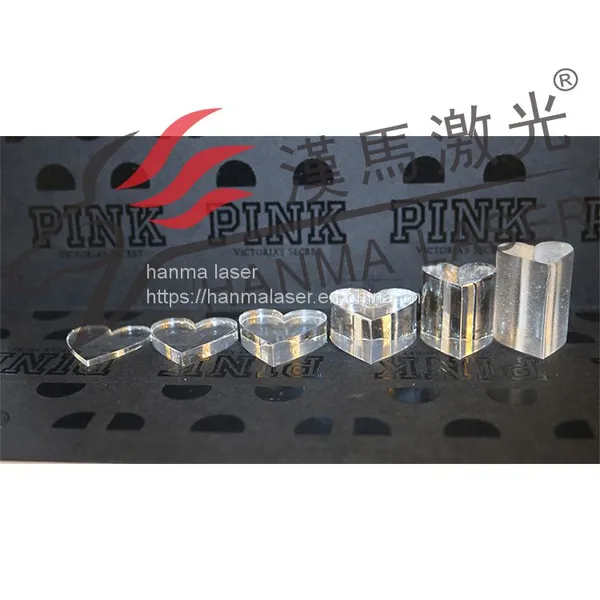

Logo,fabric,leather,wood,bamboo,paper,acrylic,PMMA,rubber,plastic,tile,crystal,jade and etc. nonmetal material.
