High quality Galvanized Flat wrap Razor Barbed Wire
Material: High quality low carbon steel wire, Stainless steel wire, Medium carbon steel wire(Galvanized, Plastic coated, Plastic sprayed)
Style: BTO or CBT
Thickness: 0.5-0.6mm
Bar Length and width:12--67mm
Characteristics:
With beautiful and sharp blades and strong core wire, razor wire has the features of good deterrent effects ,nice appearance, easy installation, economical and practical and other properties.
Application:
Razor barbed wire is widely used in apartment houses, organizations units, prison, frontier defense, military fields and other sites requiring severe fencing and security
Technique:
razor barbed wire is a kind of blocking material, which is composed of blades made of galvanized steel or stainless steel plate with punching a sharp knife flake and a high tension galvanized core wire or stainless steel core wire. with its unique appearence and security, razor barbed wire can achieve excellent protection and screen effect. the mainly material of razor barbed wire are galvanized steel and stainless steel plate.
Feature:
High protection, it is almost impossible to climb.
High-strength steel core very difficult to cut off.
Powerful security fence barriers neat appearance.
Extremely simple to install, needs three to four to install molding.
No secondary use, so he will not be stolen.
Anti-corrosion, aging, sunscreen, weather
Packing:
wrapped with plastic cloth inside, plastic woven bag outside. Every 20 bundles are wrapped with steel strip, into one large bundle. 100m/roll, 250m/roll, or as require.

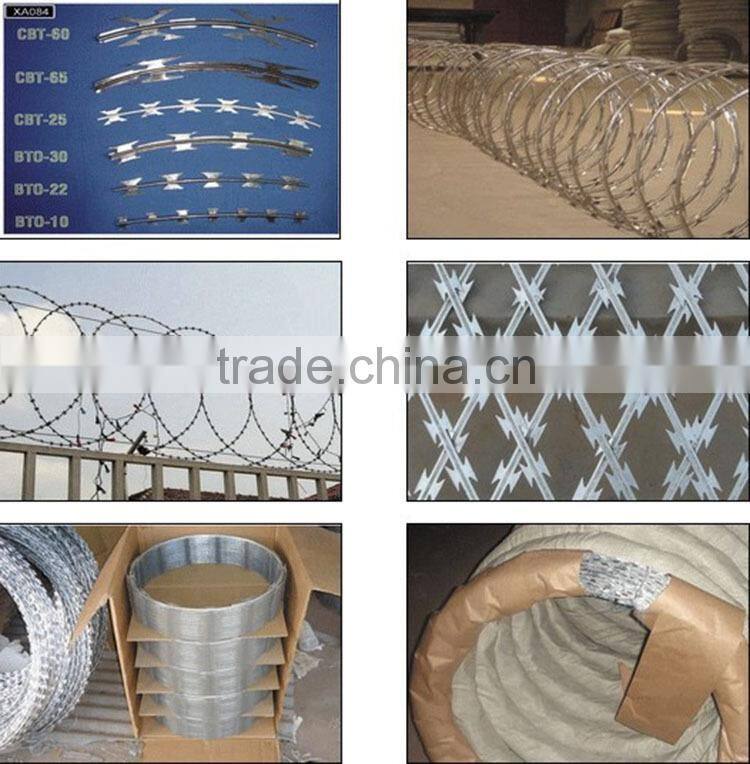

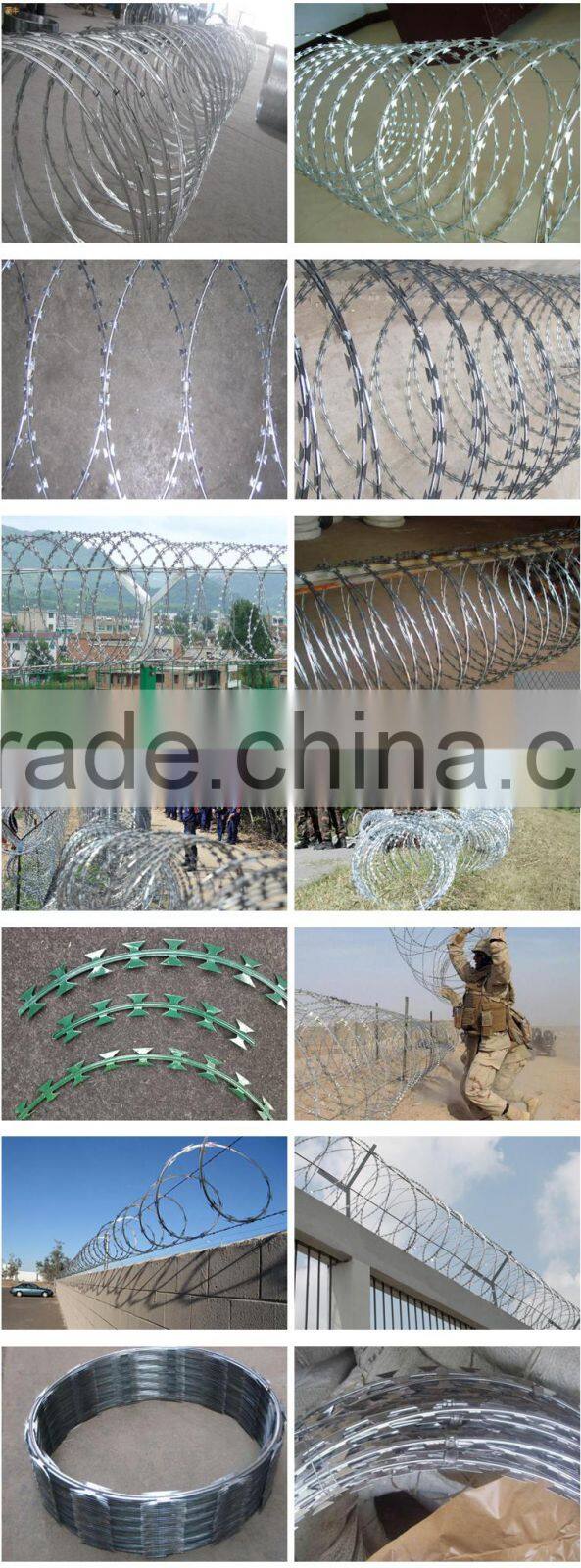

Products Show:

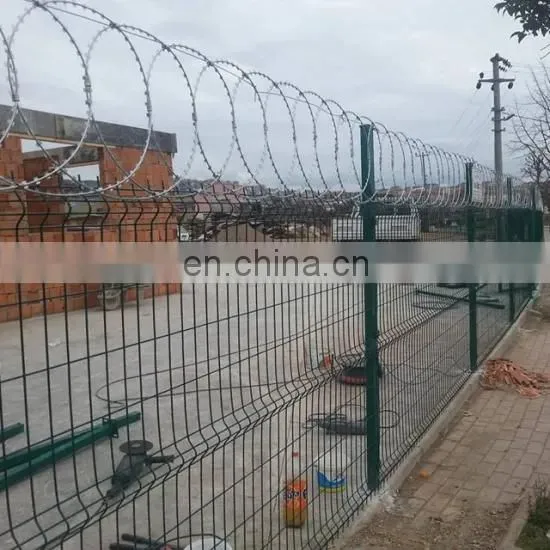

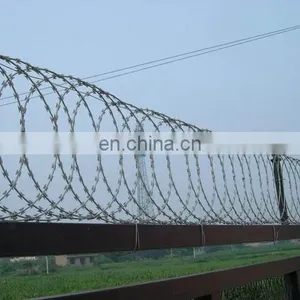

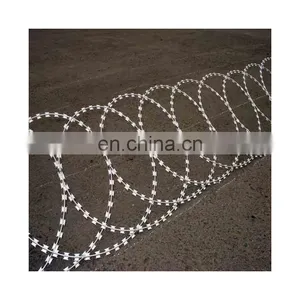

Razor barbed wire:
Specification: BTO-12, BTO-18, BTO-22, CBT-60, CBT-65

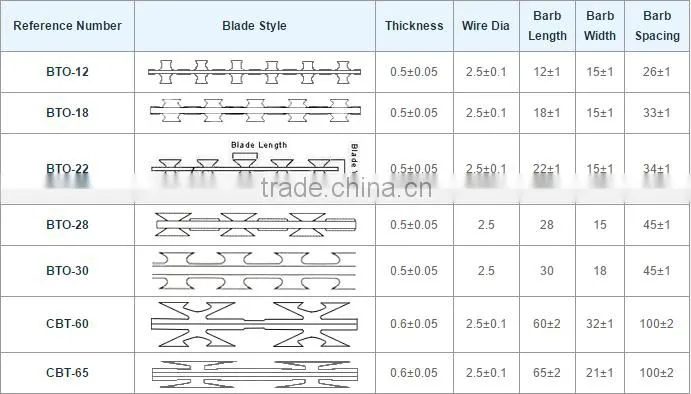

Razor blade specification:
Reference No.: BTO-22
Wire Dia.: 2.5 mm -+ 0.1
Thickness (razor blade): 0.5 mm -+ 0.05
Barb length (razor blade): 22 mm -+ 1
Barb width (razor blade): 15 mm -+ 1
Barb spacing (razor blade): 34 mm -+ 1
Barbed type wire specification:
Outside diameter: 900mm
No. Of loops: 36 loops
Stander length per coil: 9 V 10M (5 clips)
Type: BTO- 22
Note: Concertina crossed type razor barbedC-
Other details: Weight: 10 kg/coil (maximum
)Tensile: 600-700 N/mm2
Zinc content: Wire G. I 12-15 G/M2
|
single loop razor barbed wire(single coil) |
||||
|
Out diameter |
NO. of loops |
Standard cover length |
Blade Style |
Remark |
|
450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
|
500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
|
700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
|
960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
|

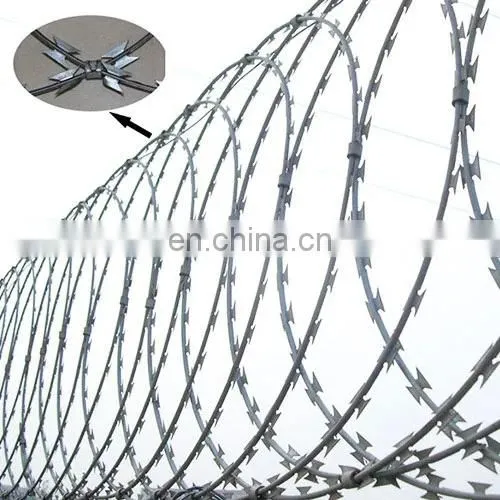

Cross type razor barbed wire(double loops) |
||||
|
450mm |
56 |
8-9M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Crosstype |
|
600mm |
56 |
10-11M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
Packaging & Shipping |
Company Information |
We are professional manufacturer of rabbit cage.If you are interested in our products,please feel free to contact us,we will serve you wholeheartedly.Look forward to your inquiries

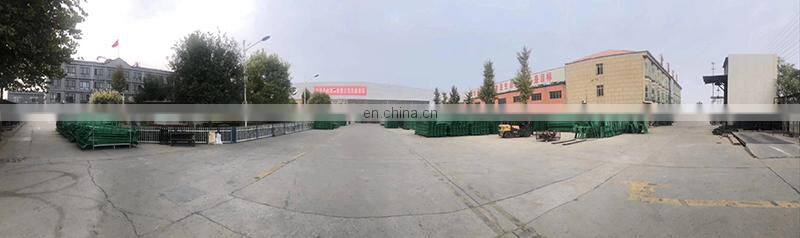

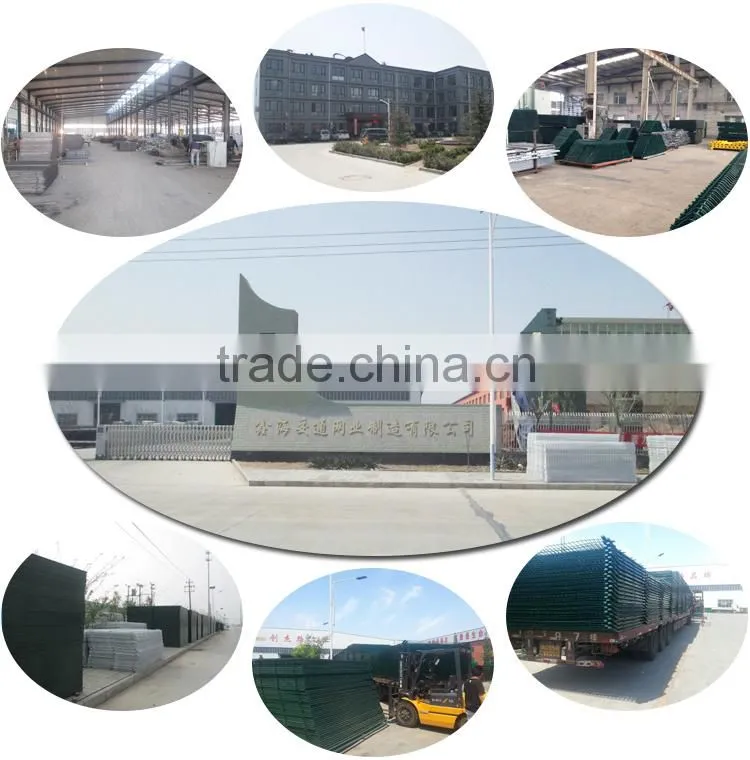

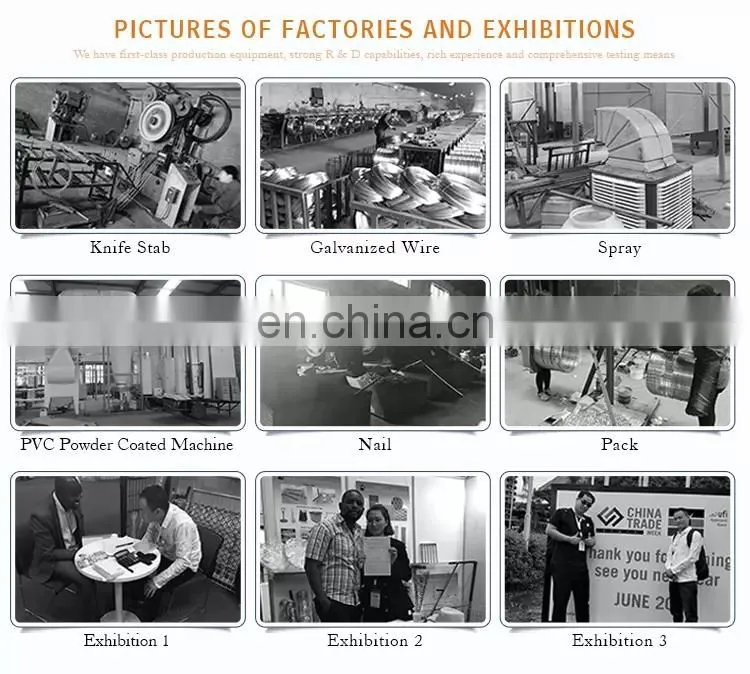

Our Company:
