Hot Dipped Galvanized Razor Barbed Wire Low Price Concertina Razor Wire
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2003
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XINHAI Manufacturer Galvanized Stainless Steel Military Concertina Razor Wire Low PriceNegotiableMOQ: 1 -
Hot Selling Low Price Razor Barbed WireNegotiableMOQ: 1
-
Hot Dipped Galvanized Diamond Razor Barbed Wire Mesh Fence Low PriceNegotiableMOQ: 1
-
Free Sample Galvanized Concertina Razor Wire Price Low PriceNegotiableMOQ: 1
-
BTO&CBT Anti-rust Galvanized Concertina Razor Wire/Razor Barbed Wire/Razor Wire Low PriceNegotiableMOQ: 1
Video Description
Products Discription
Razor Barbed Wire
Material | Galvanized steel& stainless steel | ||||||

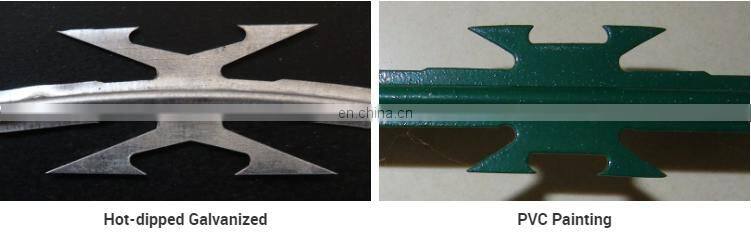

Techique | HDP Galvanized, Electric Galvanized, And PVC Coated | ||||||
Wire Dia. | 2.5mm | ||||||
Razor Specifications | BTO-10, BTO-15, BTO-22. Etc | ||||||
Coil Diameter | 450-960mm | ||||||
Used for | Airport, industrial and mining enterprises, prisons, government buildings and other places that need security protection | ||||||
Color | Yellow, green, blue, etc | ||||||
Concertina Wire Materials:
Blade: steel plate by one-time punching moulding or stainless steel plate by one-time punching moulding
Wire: hot dipped galvanized metal wire hot dipped galvanized steel wire or stainless steel wire
Specification
Concertina wire or Dannert Wire is a type of barbed wire or razor wire that is formed in large coils which can be expanded like a concertina. In conjunction with plain barbed wire (and/or razor wire/tape) and steel pickets, it is most often used to form military-style wire obstacles such as when used in prison barriers, detention camps or riot control.

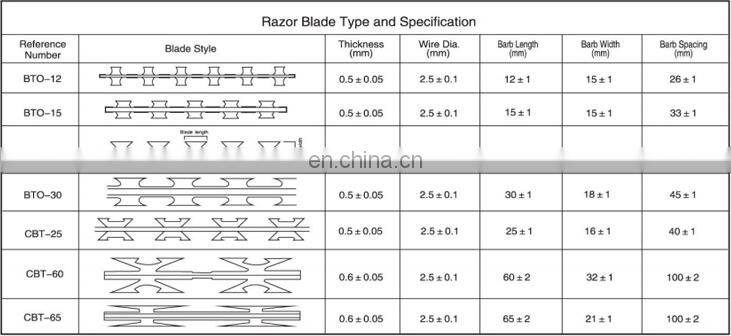

Model | Thickness | Wire Diameter | Length | Width | Spacing |
BTO-10 | 0.5±0.05mm | 2.5±0.1mm | 12±1mm | 13mm | 26mm |
BTO-12 | 0.5±0.05mm | 2.5±0.1mm | 12±1mm | 15mm | 26mm |
BTO-18 | 0.5±0.05mm | 2.5±0.1mm | 18±1mm | 15mm | 33mm |
BTO-22 | 0.5±0.05mm | 2.5±0.1mm | 22±1mm | 15mm | 34mm |
BTO-28 | 0.5±0.05mm | 2.5±0.1mm | 28±1mm | 15mm | 34mm |
BTO-30 | 0.5±0.05mm | 2.5±0.1mm | 30±1mm | 18mm | 34mm |
CBT-60 | 0.6±0.05mm | 2.5±0.1mm | 60±1mm | 32mm | 96mm |
CBT-65 | 0.6±0.05mm | 2.5±0.1mm | 65±1mm | 21mm | 100mm |
Outside Diameter | No. of Loops | Standard Length per Coil | Razor Type | Notes |
450mm | 33 | 7M-8M | CBT-60, 65 | Single Coil |
500mm | 56 | 12M-13M | CBT-60, 65 | Single Coil |
700mm | 56 | 13M-14M | CBT-60, 65 | Single Coil |
960mm | 56 | 14M-15M | CBT-60, 65 | Single Coil |
450mm | 56 | 8M-9M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
500mm | 56 | 9M-10M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
600mm | 56 | 10M-11M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
600mm | 56 | 8M-10M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
700mm | 56 | 10M-12M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
800mm | 56 | 11M-13M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
900mm | 56 | 12M-14M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
960mm | 56 | 13M-15M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
980mm | 56 | 14M-16M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |

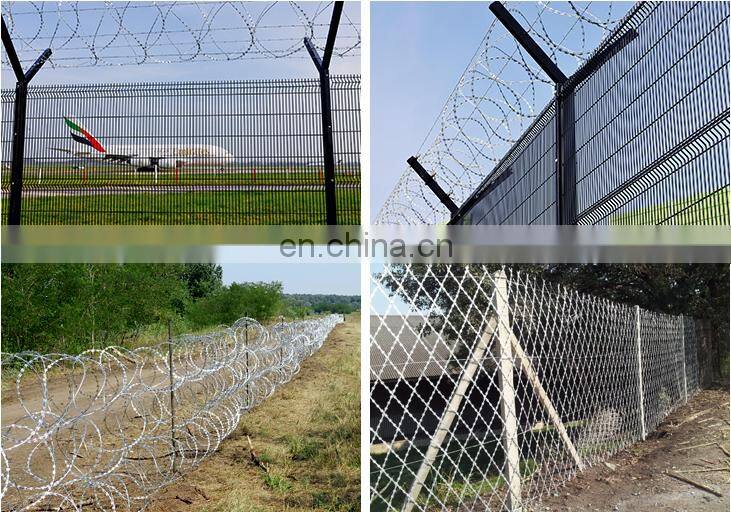

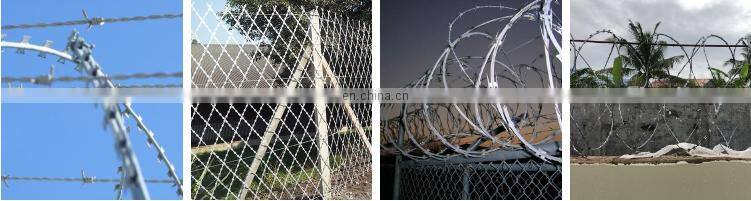

Application

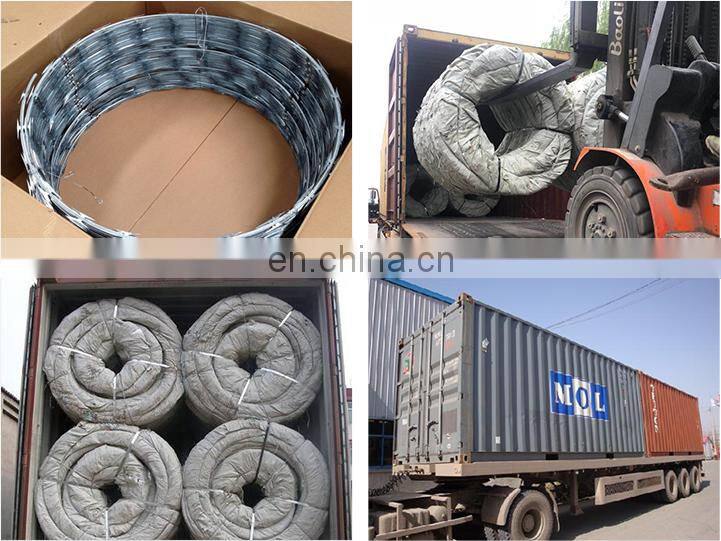

Product packaging
Company Information
Anping County Xinhai Traffic Wire Mesh Manufacture Co., Ltd., born in 1989
Our company has passed onsite assessment was conducted by SGS, Our products offer more than 30 YEARS GUARANTEE.
We has passed the quality management system ISO9001: 2008, environmental management system ISO14001: 2004, occupational health and safety management system GB / T28001: 2011.
We follow the motto of Seeking First Quality& Building Good Reputation in doing business and try to provide quality products and excellent services for our customers.
We have exported more than 10 countries and regions, mainly the United States, Russia, Australia, Japan, and France.
Exhibition
Product Service
Our products offer 10 YEARS GUARANTEE.
Product customization services
We can customize products according to your requirements, including design and drawing.
After-sales service
Our after-sales service start immediately after signing the contract.
1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation, maintenance and repair instructions with full information.
Product customization services
We can customize products according to your requirements, including design and drawing.
After-sales service
Our after-sales service start immediately after signing the contract.
1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation, maintenance and repair instructions with full information.
FAQ
Q: Are you a manufacturer?
A: Yes,we have specialized in this field for about 10 years experience.
Q: Could you provide sample?
A: es,we can provide sample in half A4 size together with our catalogue. But the courier charge will on your side. We'll send back
the courier charge if you make an order.
Q: What information should I provide,if I want a lowest quotation?
A: The specification of wire mesh.such as material,mesh number, wire diameter,hole size,width,quantity,finishing.
Q: How is your delivery time?
A: We always prepare enough stock material for your urgent requirement. the delivery time is 7days for all the stock material.
We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Q: How do you ship the finished wire mesh?
A:Usually by sea.
Q: What is the payment?
A:We usually use the T/T,L/C,D/P,Western Union.
A: Yes,we have specialized in this field for about 10 years experience.
Q: Could you provide sample?
A: es,we can provide sample in half A4 size together with our catalogue. But the courier charge will on your side. We'll send back
the courier charge if you make an order.
Q: What information should I provide,if I want a lowest quotation?
A: The specification of wire mesh.such as material,mesh number, wire diameter,hole size,width,quantity,finishing.
Q: How is your delivery time?
A: We always prepare enough stock material for your urgent requirement. the delivery time is 7days for all the stock material.
We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Q: How do you ship the finished wire mesh?
A:Usually by sea.
Q: What is the payment?
A:We usually use the T/T,L/C,D/P,Western Union.
