High Quality Barbed wire fence/barbwire/galvanized barbed wire barbed wire fence
barbed tape has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
|
Reference Number |
Blade Style |
Thickness |
Wire Dia |
Barb |
Barb |
Barb |
|
BTO-10 |
|
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
|
BTO-12 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
BTO-18 |
|
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
|
BTO-22 |
|
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
|
BTO-28 |
|
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
|
BTO-30 |
|
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
|
CBT-60 |
|
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
|
CBT-65 |
|
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
1. Barbed Wire Material:
- Stainless steel wire
- Galvanized steel wire
- PVC coated iron wire
- Low-carton steel wire
2.Type: Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire; PVC coated barbed wire; PE barbed wire.

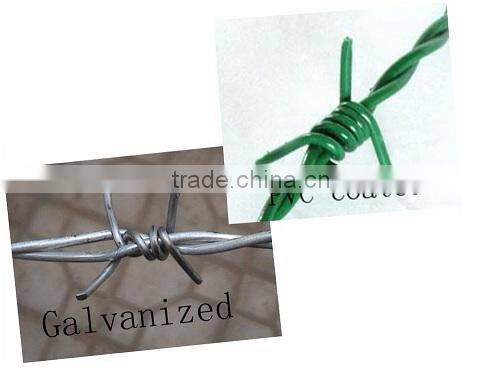

3. Barbed Wire Surface finished:
- Electro galvanized
- Hot dipped galvanized
- PVC coated.
Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.
4.Specficaion
|
Barbed Wire Specification |
||||
| Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
| Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||
| PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
| 1.0mm-3.5mm | 1.4mm-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
| PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. | ||||

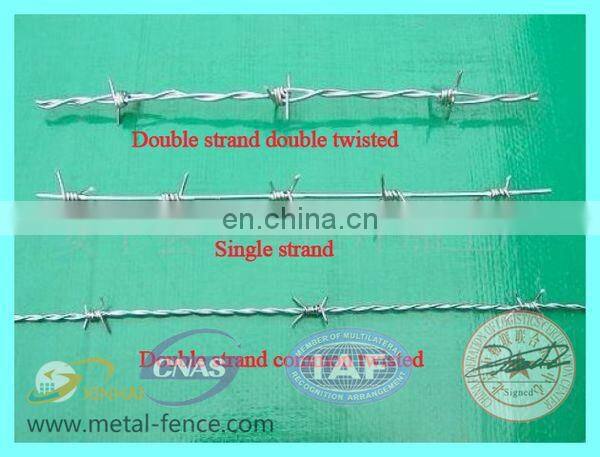

5. Barbed wire weave types:
a.single strand barbed wire
b.double strand double twisted barbed wire
c.double strand common twisted barbed wire
6.Application:
Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape.

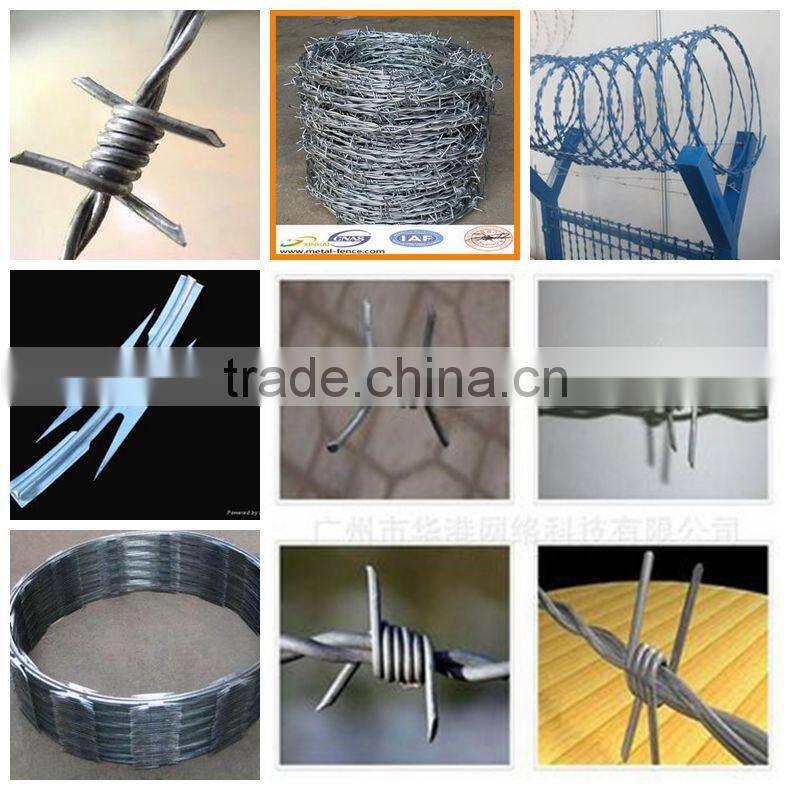

Barbed Wire Kinds:
- Crossed Razor Barbed Wire:Two pieces of stainless razor wire or zinc-coated razor wire were bounded together by clips to make it more strength. The spiral intersecting barbed wire presents an intersecing shape after opening with beautiful feature and practicality.
- Single coil barbed Wire:Single coil barbed tape wire is installed without clips, it runs in natural loops on walls.Costless and can be easily installed.
- Straight Razor Barbed Wire:There are many ways for straight type razor wire installing. The straight type razor wire can be installed quickly it. can not only save expenditure but also reach the result of frightening and stopping.
- Razor Wire Mesh Fence:Welded razor mesh fence is a new form of razor bared wire mesh for security, it with practicality blade and the feature looks very beautiful. It can be used for guard net of fence ,doors and windows and also can be used in military. The specification can be designed as the customers’ need.

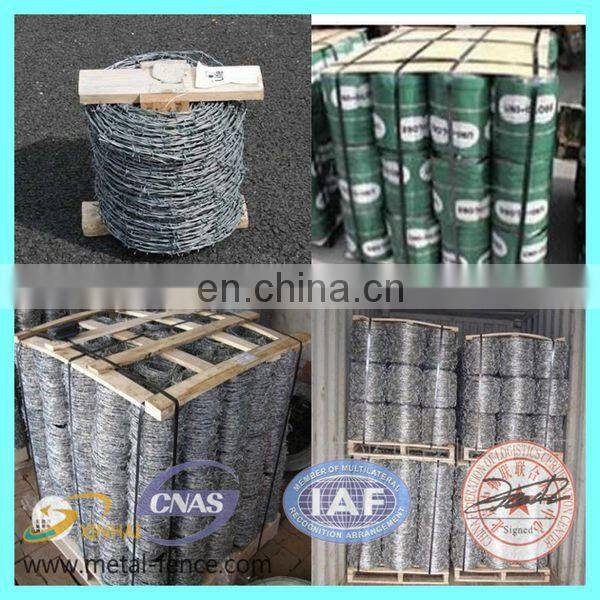

7. Packing
In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.
