expanded metal mesh cladding and low price

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Company Profile

Products Description

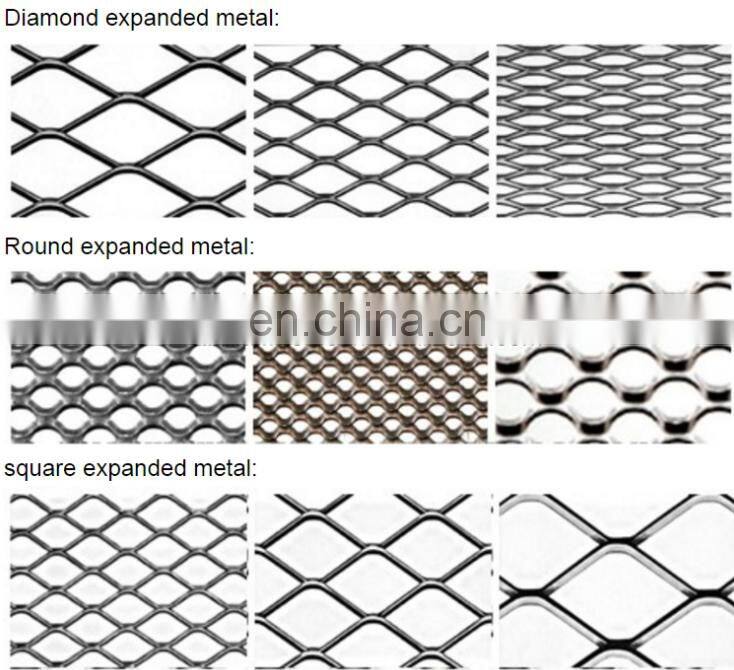

Expanded Metal

Expanded metal mesh is a variety of metal mesh industry. Also known as sheet metal mesh, diamond mesh, iron mesh, metal expanded
mesh, heavy steel foot net, punching plate 'aluminum mesh, stainless steel mesh, granaries network antenna network, filter
network, audio network.

Item No.	Thickness of Aluminium Sheets (mm)	Nominal Size of Mesh Opening (mm)					Standard Dimension of AL Expanded Mesh		Calculated Weight (kgs/m2)
Item No.	Thickness of Aluminium Sheets (mm)			SWD (mm)	LWD (mm)	Strand (Strand Width, mm)	LWM (Width, mm)	SWM (Length, mm)	Calculated Weight (kgs/m2)
1	0.5	3	6	RC	100	RC	0.6
2	0.5	3.2	8	RC	200	2000	0.6
3	0.5	5	10	RC	RC	RC	0.6
4	0.5	6	12.5	RC	1800	3000	0.37
5	0.5	7	14	RC	1800	3000	0.37
6	0.5	8	16	RC	2000	3340	0.37
7	0.5	9	20	RC	2000	3340	0.37
8	0.5	10	25	1.12	2000	4000	0.3
9	0.5	12	30	1.35	1800	3600	0.3
10	0.8	10	25	1.12	RC	RC	0.3
11	0.8	12	30	1.35	RC	RC	0.48
12	0.8	15	40	1.68	RC	RC	0.48
13	1	10	25	1.12	RC	RC	0.48
14	1	12	30	1.35	RC	RC	0.6
15	1	15	40	1.68	RC	RC	0.6
16	1.2	10	25	1.13	RC	RC	0.6
17	1.2	12	30	1.35	RC	RC	0.73
18	1.2	15	40	1.68	RC	RC	0.73
19	1.2	18	50	2.03	RC	RC	0.73
20	1.5	15	40	1.69	RC	RC	0.91
21	1.5	18	50	2.03	RC	RC	0.91
22	1.5	22	60	2.47	RC	RC	0.91
23	1.5	29	80	3.25	RC	RC	1.21
24	2	18	50	2.03	1800	3600	1.21
25	2	22	60	2.47	2000	4000	1.21
26	2	29	80	3.26	2500	5000	1.52
27	2	36	100	4.05	RC	RC	1.52
28	2	44	120	4.95	RC	RC	1.82
29	3	36	100	4.05	RC	RC	1.82
30	3	44	120	4.95	RC	RC	1.82
31	3	55	150	4.99	2000	5000	1.47
31	3	55	150	4.99			1.47			2500	6400
32	3	65	180	4.60	2000	6400	1.14
32	3	65	180	4.60			1.14			2500	8000
33	4	22	60	4.50	1500	2000-3000	4.42
34	4	30	80	5	RC	2000-4000	3.60
35	4	38	100	6	2000	2000-4500	3.41
36	5	24	60	6	RC	2000-3000	6.76
37	5	35	80	6	RC	2000-4000	5.07
38	5	38	100	7	RC	2000-4500	5.05
39	5	56	150	6	RC	2000-6000	2.90
40	5	76	200	6	RC	2000-6000	2.13
41	6	32	80	7	RC	2000-4000	7.10
42	6	38	100	7	RC	2000-4500	5.98
43	6	56	150	7	RC	2000-6000	4.05

Packaging & Shipping

Application

Company Information

Anping county Xinhai Traffic Wire mesh Manufacture Co.,LTD located in the wire mesh land, Anping county, HeBei province.One day produce fence 10 kilometers, hot dipped galvanized barbed wire more than 20 tons. It is a professional manufacturing company which produce the fence from the wire rod, wire drawing, welding and bending, and painting,and installing, etc.Our company have the best advanced machinery,and perfect quality test system, andhgh quality raw material. To stictlycontrol qality, which get to the international standard. We have the full implemmentation of the ISO9001 quality management system and ISO14001environmenal management system, access to international authentication.

FAQ

1. who are we?
We are based in Anping County , Hebei province, China, start from 1989, We export to more than 100 countries around the world.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wire Mesh Fence,Ornamental Fencing,Gabion Box,Barbed Wire/Production And Sales

4. why should you buy from us not from other suppliers?
Fencing expert. We have exported the wire mesh fence for more than 10 years.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
