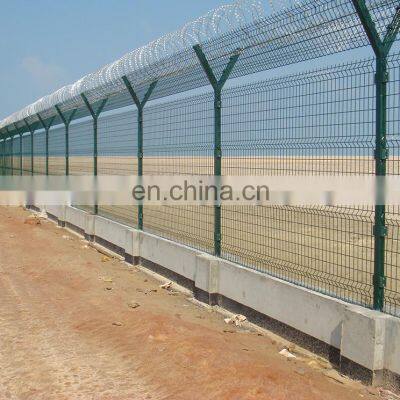

High Security Y Shaped Arm 3D Curved Airport Fence With Barbed Razor Wire
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2003
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Veldspan Field Fence Farm Rail PVC Farm Cheap Flexible Farm Livestock Horse FenceNegotiableMOQ: 1 -
Galvanized Steel Board Horse Fence Powder Coated Cattle Fence pe Horse Fence in Good PriceNegotiableMOQ: 1
-
Pvc Coated Roll 50ft Hot Dipped Galvanized Wholesale Used 9 Gauge Industry Chain Link FenceNegotiableMOQ: 1
-
Fencing Material Outdoor Anpiny Factory Anti Climb 358 Security FenceNegotiableMOQ: 1
-
Fixed Knot Field Veldspan Farm Cattle Goat Deer Sheep Farm/field/deer Wire Mesh Fence GalvanizedNegotiableMOQ: 1
Products Discription
Our products offer more than 30 YEARS GUARANTEE
Panel
It can be 3D curved fence or 358 anti-climb fence.
Specification
1. 3D curved fence
Mesh size | Wire diameter | Surface treatment | Panel width | Panel height | Fence height |
50*100mm 55*100mm | 4.00mm 4.50mm 5.00mm | Galvanized PVC coated or Powder coated | 2.50m 3.00m | 2000mm | 2700mm |
2300mm | 3200mm | ||||
2600mm | 3700mm | ||||
530mm | 2700mm | ||||
630mm | 3200mm | ||||
730mm | 3700mm |
2. 358 anti-climb fence
Mesh size | Wire diameter | Surface treatment | Panel width | Panel height | Fence height |
76.2*12.7mm | 4.00mm 4.50mm 5.00mm | Galvanized PVC coated or Powder coated | 2.50m 3.00m | 2000mm | 2700mm |
2300mm | 3200mm | ||||
2600mm | 3700mm | ||||
530mm | 2700mm | ||||
630mm | 3200mm | ||||
730mm | 3700mm |
Y Post
Profile | Thickness | Surface Treatment | Length | Base Plate | Rain Hat |
60*60mm | 2.0mm 2.5mm | Galvanized, PVC coated or Powder coated. | 2700mm I+530mm V | Available On request | Plastic or Metal |
3100mm I+630mm V | |||||
3600mm I+730mm V |
Barbed Wire and Razor Barbed Wire
1.V-arm post with three hooks is usually used with barbed wire.
The V-arm can be either Angle iron or square column. It's usually at a 90-degree Angle.
The V-arm can be welded directly to the post, or fixed with fittings.
Razor Barbed Wire is often the concertina cross Razor Wire. BTO-22, or other type.
The V-arm can be either Angle iron or square column. It's usually at a 90-degree Angle.
The V-arm can be welded directly to the post, or fixed with fittings.
Razor Barbed Wire is often the concertina cross Razor Wire. BTO-22, or other type.
2. Welding wire mesh on V arm.
Then put the concertina cross Razor Wire on the top
Then put the concertina cross Razor Wire on the top
Application
Product packaging
Packing
Fence Panels:
1.It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2.It has 4 metal corners to keep the pallet more strong
3.It has metal plate under the plastic bandage to reduce the pressure of fence panels
4.It has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets
Fence Post:
Each fence post is covered by cap (save your installing time and cost of labor) then with plastic film, then pallet.Company Information
Anping County Xinhai Traffic Wire Mesh Manufacture Co., Ltd., born in 1989
Our company has passed onsite assessment was conducted by SGS, Our products offer more than 30 YEARS GUARANTEE.
We has passed the quality management system ISO9001: 2008, environmental management system ISO14001: 2004, occupational health and safety management system GB / T28001: 2011.
We follow the motto of Seeking First Quality& Building Good Reputation in doing business and try to provide quality products and excellent services for our customers.
We have exported more than 10 countries and regions, mainly the United States, Russia, Australia, Japan, and France.
Product Service
Our products offer 10 YEARS GUARANTEE.
Product customization services
We can customize products according to your requirements, including design and drawing.
After-sales service
Our after-sales service start immediately after signing the contract.
1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation, maintenance and repair instructions with full information.
Product customization services
We can customize products according to your requirements, including design and drawing.
After-sales service
Our after-sales service start immediately after signing the contract.
1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation, maintenance and repair instructions with full information.
FAQ
Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers..
