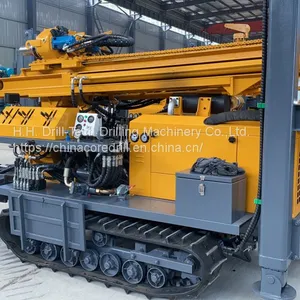

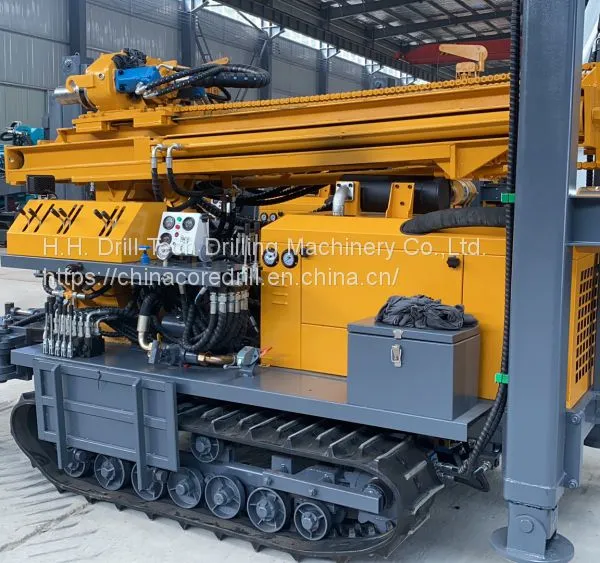

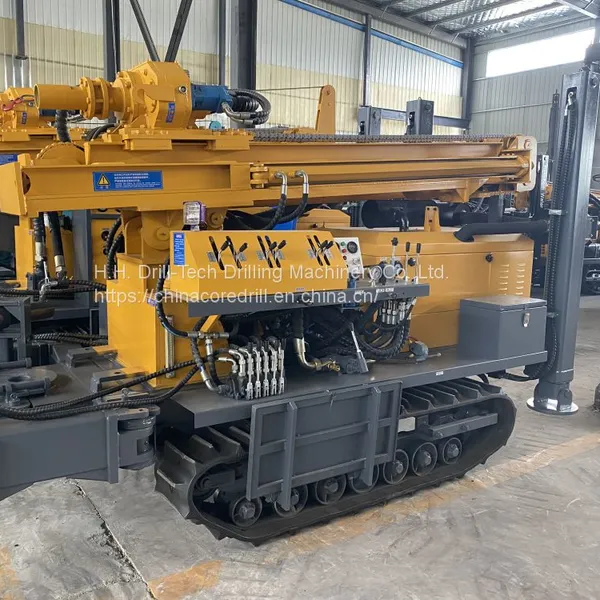

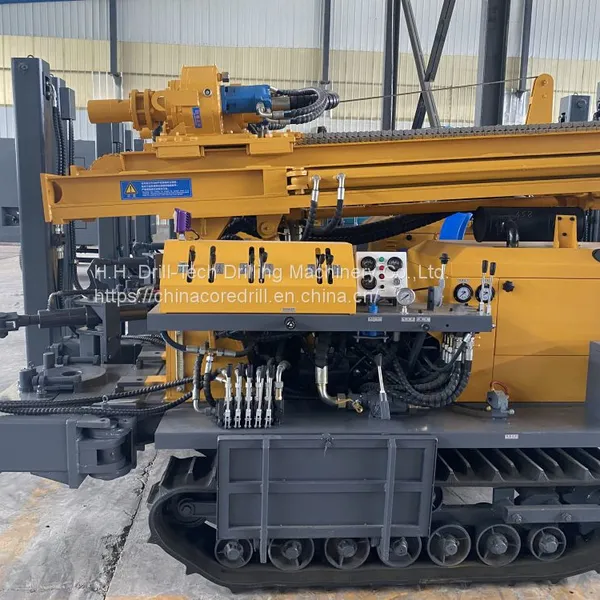

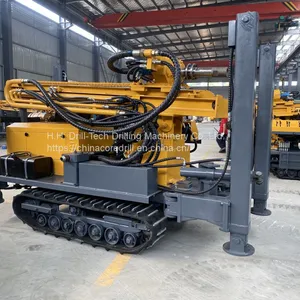

FYX180 Tracked Mobile Water Well Drill Rig Machine Driven by Diesel Engine With 180m Drilling Depth Pneumatic DTH and Mud Drill
US$ 1 - 15000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Huanghai
Place of Origin:
China
Model Number:
FYX180
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang, China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BQ/NQ/HQ/PQ Wireline Drill Pipe 3m Length DCDMA Standard Drill Rod for Geolocial Exploration Core Drilling Hardness Heat TreatmentUS$ 1 - 110MOQ: 100 Pieces -
Full Hydraulic Diamond Core Drilling Rig HYDX-6 Exploration Coring Machine Equipment With 2000m Drilling Capacity Factory SupplyUS$ 1 - 180000MOQ: 1 Set
-
Full Hydraulic Core Drilling Rig HYDX-5A Geological Exploration Wireline Drill Machine Equipment With 1500m Depth CapacityUS$ 1 - 165000MOQ: 1 Set
-
Full Hydraulic Core Drilling Rig HYDX-4geological Exploration Wireline Drill Machine Equipment With 1000m Depth CapacityUS$ 1 - 150000MOQ: 1 Set
-
Full Hydraulic Core Drilling Rig HYDX-2 Geological Exploration Wireline Drill Machine Equipment With 500m Depth CapacityUS$ 1 - 72000MOQ: 1 Set
Brand Name
Huanghai
Place of Origin
China
Model Number
FYX180
Type
Rotary Drilling Rig
Certification
ISO
After-sales Service Provided
No overseas service provided
Warranty
six month
Weight
4500kgs
Dimension(L*W*H)
3950*1630*2250mm
Power Type
Diesel
Usage
Water Well
Condition
New
Power(W)
55KW
1. The applications of FYX 180 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling
· water well drilling
2. Advantages of FY 180 pneumatic water well drilling rig
· Large Hole Diameter
· Deep Drilling
· High Penetration Rate, especially under pure rock condition
· Flexible Movement
· Wide Application Area
3. The specifications of FYX 180 crawler pneumatic water well drilling rig
model |
FYX 180 |
|
Gross weight |
T |
3.8 |
Dimension |
mm |
3800*1550*2350 |
Aperture |
mm |
130-254 |
Drilling depth |
m |
180 |
Feed stroke |
mm |
3000 |
Travel speed |
km/h |
2.5 |
Grade ability |
Max. |
30° |
Rising height from ground |
mm |
250 |
Wind pressure |
Mpa |
1.7-2.5 |
Air consumption |
m³/min |
15-27 |
Engine power |
kw |
42-65 |
Rotary speed |
rpm |
48-70 |
Rotation torque |
N.m |
4200-5600 |
