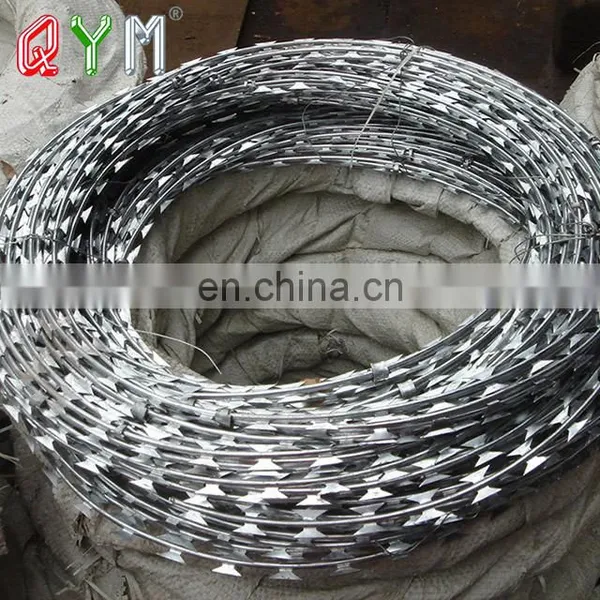

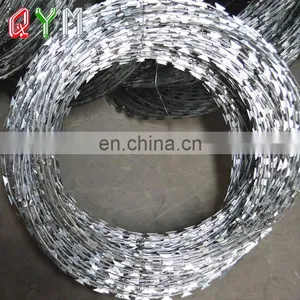

Helical Razor Wire Barbed Tape Concertina Razor Blade Wire
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2004
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Galvanized Barbed Tape Concertina Barbed Wire Factory PriceNegotiableMOQ: 1 -
Hot Dipped Galvanized Concertina Razor Blade Barbed Wire Bto22NegotiableMOQ: 1
-
Concertina Razor Barbed Wire Galvanized Razor Wire Prison FenceNegotiableMOQ: 1
-
Stainless Steel Razor Wire Cbt65 Razor Barbed Wire For PakistanNegotiableMOQ: 1
-
Galvanized Razor Barbed Wire Bto-22 Concertina Razor WireNegotiableMOQ: 1
QYM-Concertina razor wire
When you need to get serious about security,Concertina Razor Wire is the answer.It is relatively inexpensive, but viciously effective. Razor Wire around the perimeter is enough to deter any would-be vandal, robber or saboteur.

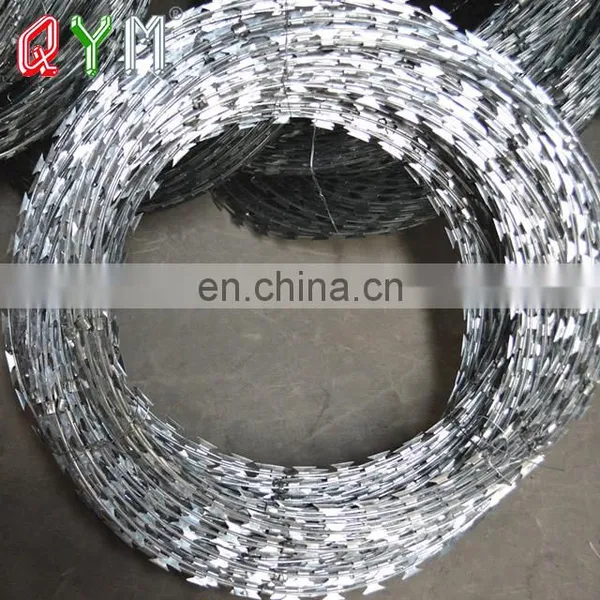

Razor Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire. It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job. Concertina Razor Wire is a long lasting and very effective barrier technology, known and trusted by security professionals.

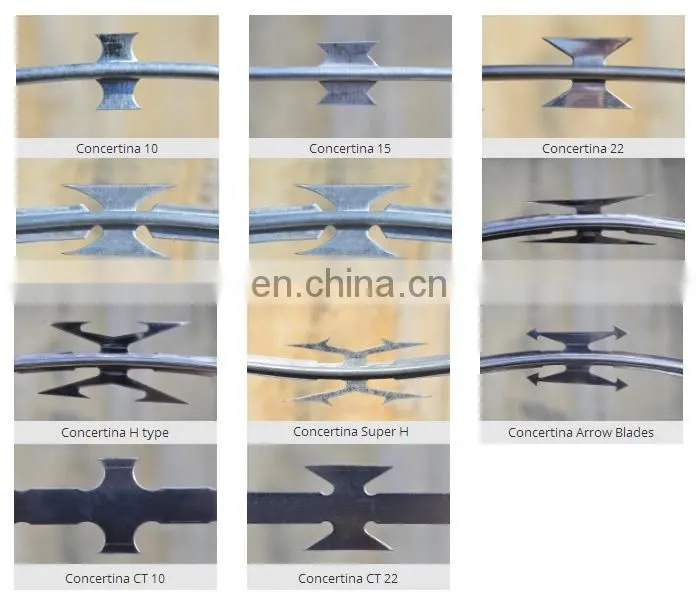

Reference Number | Thickness | Wire Dia. | Blade Length | Blade Width | Blade Spacing | |||||
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |||||
BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 | |||||
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |||||
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 | |||||
CBT-25 | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 | |||||
CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |||||
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 | |||||
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel.430/304/316 Standard packages products are shown in the tables above, special specifications are available on request. | ||||||||||
Concertina Razor Wire (Standard Use) | ||||||||
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes | ||||
450mm | 33 | 7-8M | CBT-60.65 | Single coil | ||||
500mm | 56 | 12-13M | CBT-60.65 | Single coil | ||||
700mm | 56 | 13-14M | CBT-60.65 | Single coil | ||||
960mm | 56 | 14-15M | CBT-60.65 | Single coil | ||||
450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | ||||
980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross typ | ||||

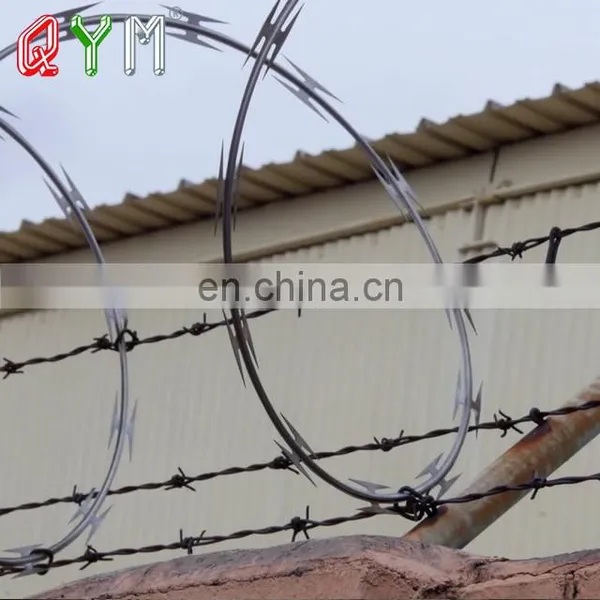

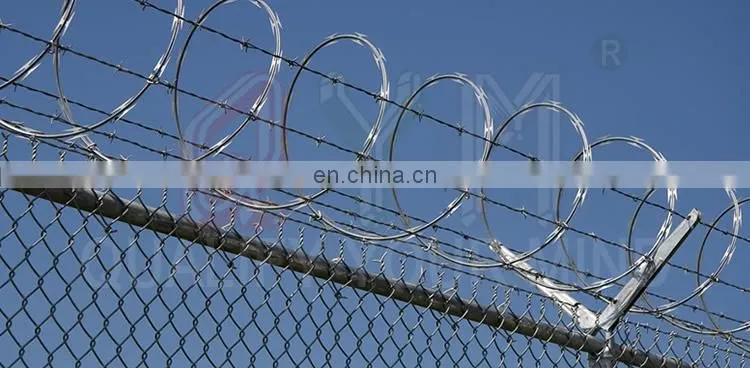

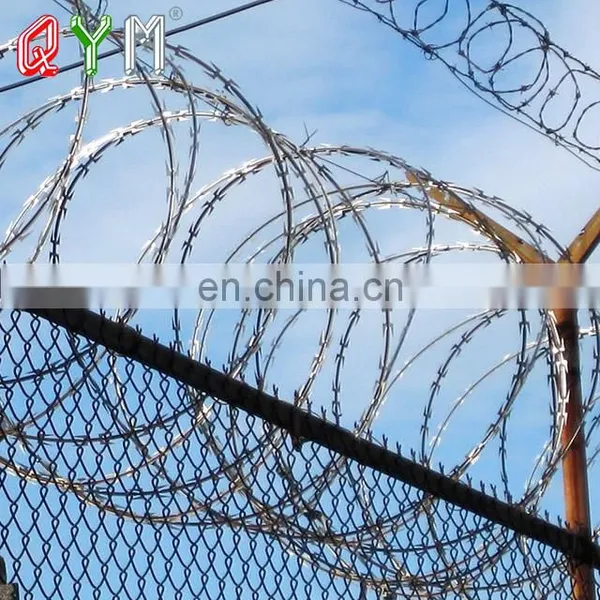

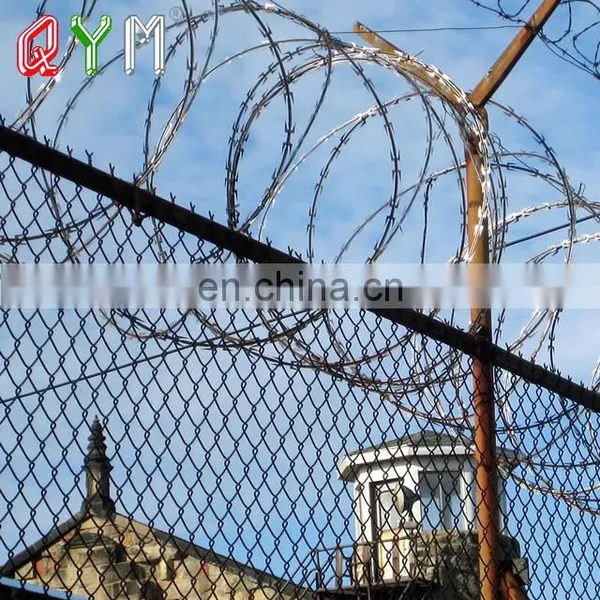

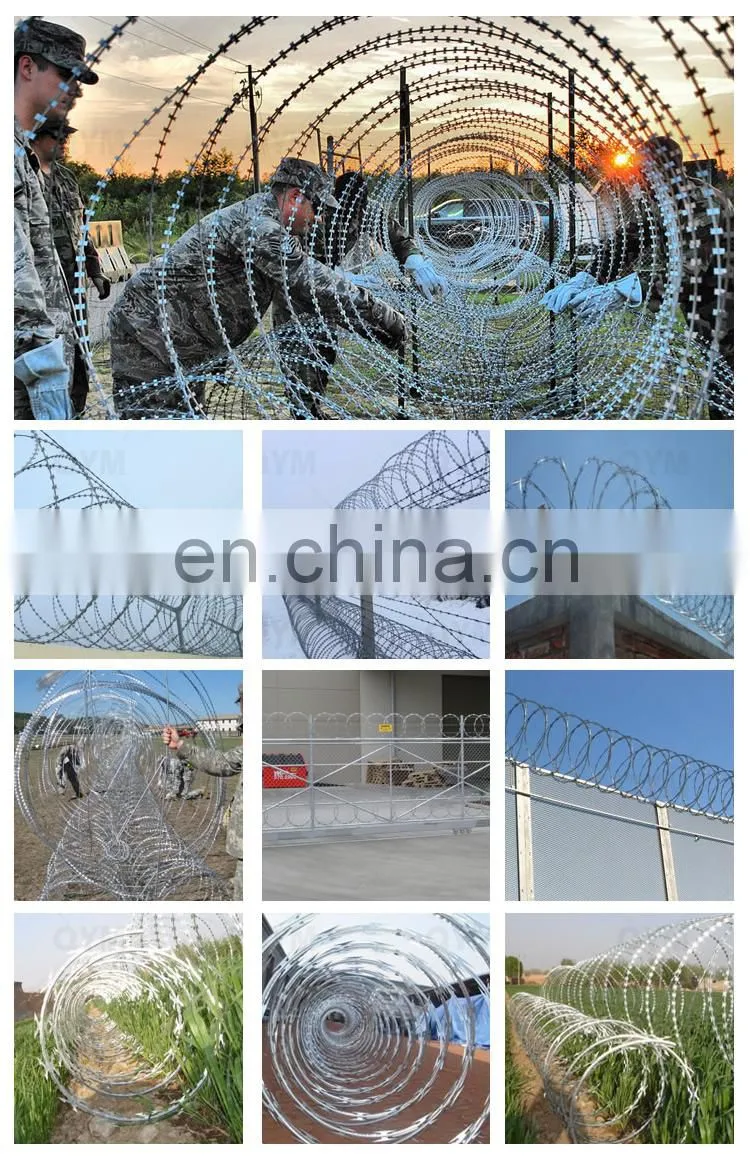

Concertina Razor Wire is been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities，not only military and national security applications, but also for cottage and society fence, and other ，as follow:
1.military heavy land
2.prisons
3.government agencies
4.banks
5.residential community walls
6.private houses
7.villa walls, doors and windows
8.highways, railway guardrails
9.borders
Company Information

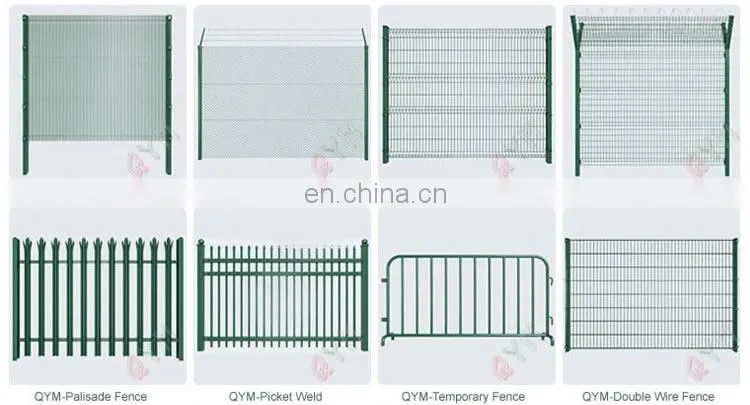

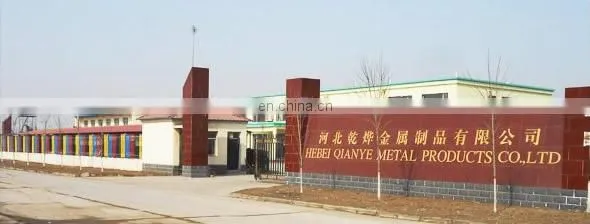

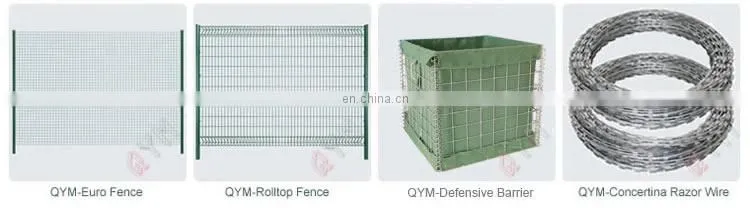

Hebei Qianye Metal Product Co., Ltd is a company engaged in production and exportation of metal fence as well as other metal products,such as airport fence,barb wire,chain link fence,concertina razor wire,double wire fence,euro fence,palisade fence,temporary fence,welded mesh,welded mesh fence,wire mesh,etc.Its registered capital is RMB50,100,000(about USD 7,400,000),covering a land area of 30,000 square meters.
