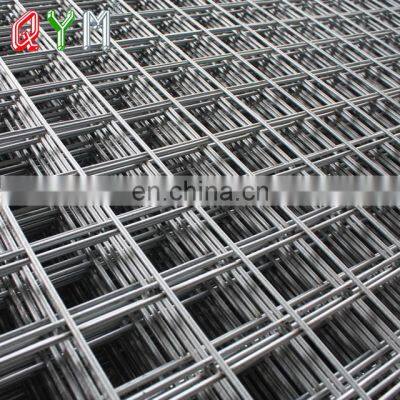

QYM-Welded Wire Mesh

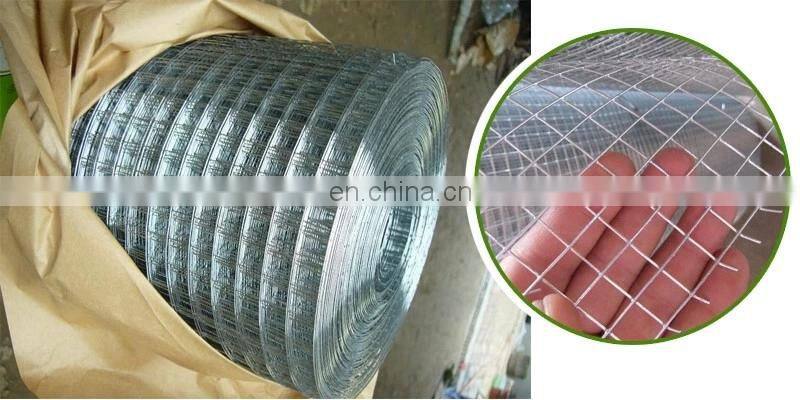

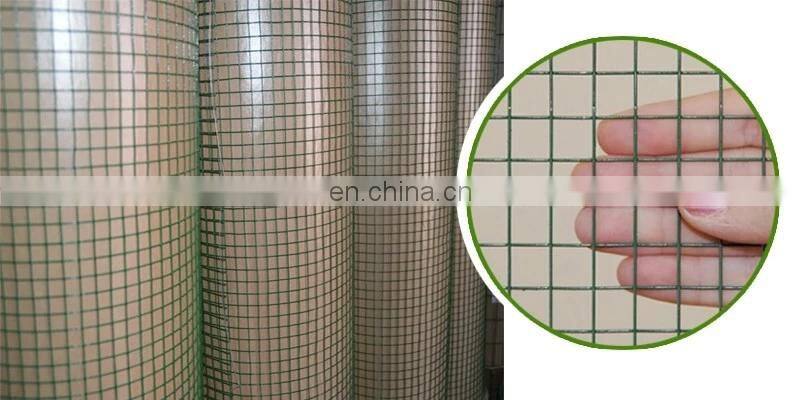

Welded wire mesh, or welded mesh, is made from choice plain steel wire and stainless steel wire, which shows good corrosion-resistance and oxidation-resistance, widely used for poultry houses, egg baskets, runway enclosures, draining racks, porch guards, rat-proofing, safety guards on machines, animal and plant pens and shelves, etc.

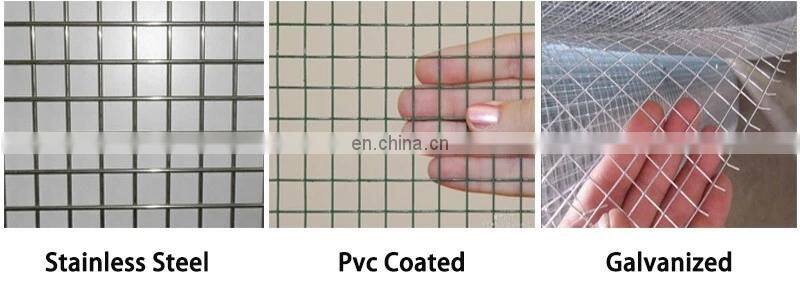

Varieties available according to processing and finish treatment:
Welded wire mesh, galvanized before weaving
Welded wire mesh, galvanized after weaving
Welded wire mesh, thermal electroplated
Welded wire mesh, PVC coated
General roll width of Welded Mesh: 3', 4', 5', 6'
Welded Mesh Length: 100'
General specification of Welded Mesh: 3/4", 1/2", 1", 1/4", 3/8"
General wire gauge (BWG): 14# to 23#
| Mesh Size | Wire Gauge Diameter | ||
| In MM | In Inch | BWG No. | MM |
| 6.4mm | 1/4Inch | BWG24-22 | 0.56mm- 0.71mm |
| 9.5mm | 3/8Inch | BWG23-19 |
0.64mm - 1.07mm |
| 12.7mm | 1/2Inch | BWG22-16 | 0.71mm - 1.65mm |
| 19.1mm | 3/4Inch | BWG21-16 | 0.81mm - 1.65mm |
| 25.4x 12.7mm | 1 x 1/2Inch | BWG21-16 |
0.81mm - 1.65mm |
| 25.4mm | 1Inch | BWG21-14 | 0.81mm - 2.11mm |
| 38.1mm | 1 1/2Inch | BWG19-14 | 1.07mm - 2.11mm |
| 25.4 x 50.8mm | 1 x 2Inch | BWG17-14 | 1.47mm - 2.11mm |
| 50.8mm | 2Inch | BWG16-12 | 1.65mm - 2.77mm |
Surface Treatment

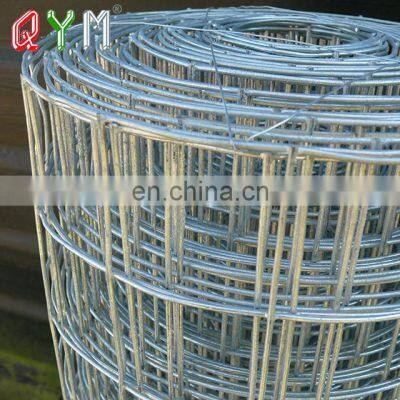

Galvanized Welded Wire Mesh
1.Galvanized:hot dipped galvanized,electric galvanized
2.Type of galvanizing:Galvanized after welding,Galvanized before welding
| Opining | Wire Diameter | ||
| Inch | mm | BWG | mm |
| 1"×1" | 25mm×25mm | 14#-11# | 2.0mm-3.0mm |
| 2"×1" | 50mm×50mm | 14#-8# | 2.0mm-4.0mm |
| 2"×2" | 50mm×50mm | 14#-8# | 2.0mm-4.0mm |
| 3"×2" | 75mm×50mm | 14#-6# | 2.0mm-5.0mm |
| 3"×3" | 75mm×75mm | 14#-6# | 2.0mm-5.0mm |
| 4"×2" | 100mm×50mm | 14#-4# | 2.0mm-6.0mm |
| 4"×4" | 100mm×100mm | 14#-4# | 2.0mm-6.0mm |
| 5"×5" | 125mm×125mm | 14#-4# | 2.0mm-6.0mm |
| 6"×6" | 150mm×150mm | 14#-4# | 2.0mm-6.0mm |
| Note: Special specifications can be customized. | |||

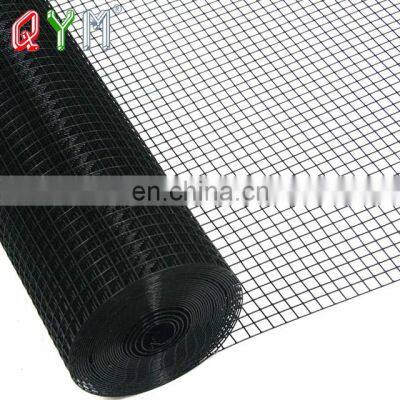

PVC Coated Welded Wire Mesh
| Opening | Wire Diameter(BWG) | |
| In inch | In metric unit(mm) | |
| 1/4"x1/4" | 6.35mx6.35mm | 21,22,23,24,24,25 |
| 1/2"x1/2" | 12.7mmx12.7mm | 16,17,18,19,20,21 |
| 3/4"x3/4" | 19mmx19mm | 16,17,18,19,20,21 |
| 1"x1" | 25.4mmx25.4mm | 15,16,17,18,19,20 |
|
Technical Note: 1.Standard roll length:30m;width:0.5m to 2.5 |
||
Just send us where are you preparing using for it, the professional advice which type is fit can be given.

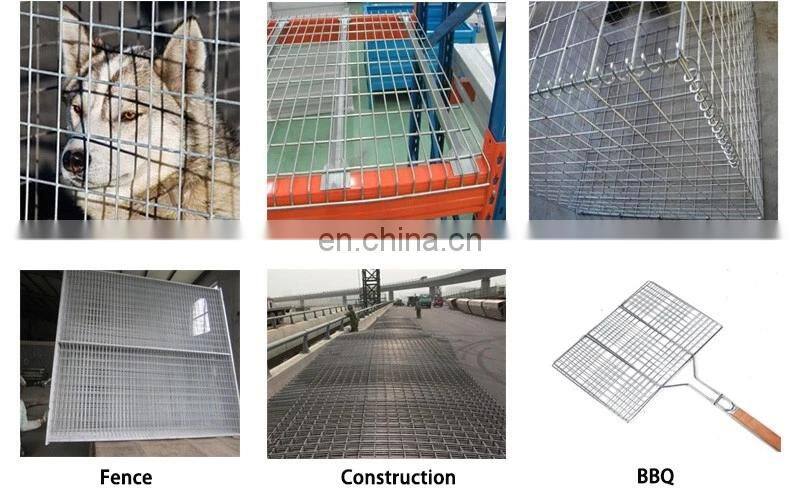

Application

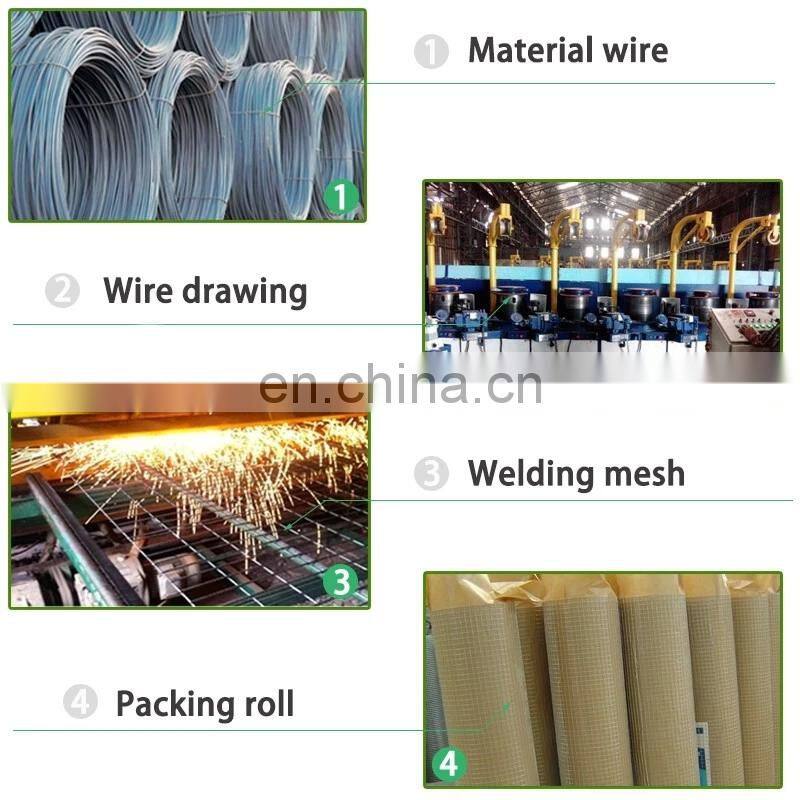

Produce Procedure
|
|||||||||
|
Company Information Hebei Qianye Metal Product Co., Ltd is a company engaged in production and exportation of metal fence as well as other metal products,such as airport fence,barb wire,chain link fence,concertina razor wire,double wire fence,euro fence,palisade fence,temporary fence,welded mesh,welded mesh fence,wire mesh,etc.Its registered capital is RMB50,100,000(about USD 7,400,000), covering a land area of 30,000 square meters. |
|||||||||
|
|||||||||
|
|||||||||
|
|
|

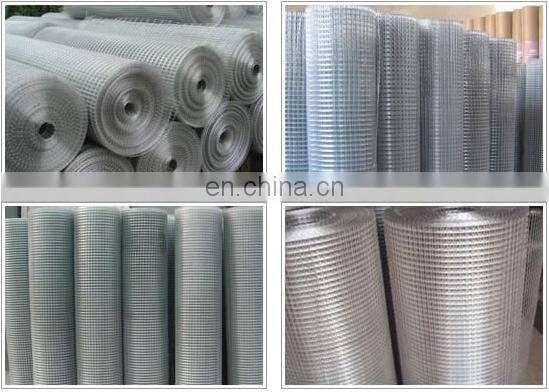

Packing & Shipping
2>Post Packing: 3>Accessories: |
Customer Photos
|
|
| FAQ |
Q: What's QYM's after service policy?
A: QYM's after service staff will contact you when you received the products, and ask for your comments on the products. Any issues on QYM's products, please send email or call us. QYM will service you timely with whole-heartedness and profession.
Q: What's the MOQ of QYM's product?
A: Different item has different MOQ. Normally 1X20FCL is preferred, LCL could be negotiable.
Q: How can we get the quotation from QYM?
A: Please send your inquiry to QYM's official email.
Q: How to be QYM's agent, wholeseller or distributor in my country?
A: Please send your company's basic information and application to my email adress. A feedback will be sent to you within 7 working days.
