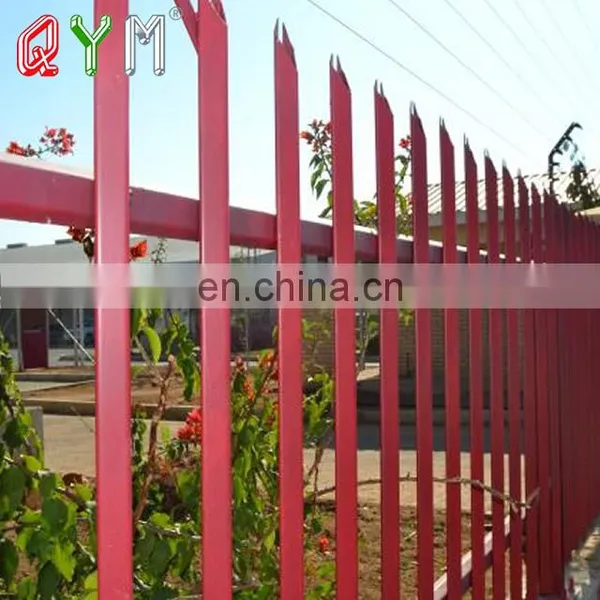

W D Pale Security Powder Coated Palisade Fence Panel photo-2
W D Pale Security Powder Coated Palisade Fence Panel photo-3

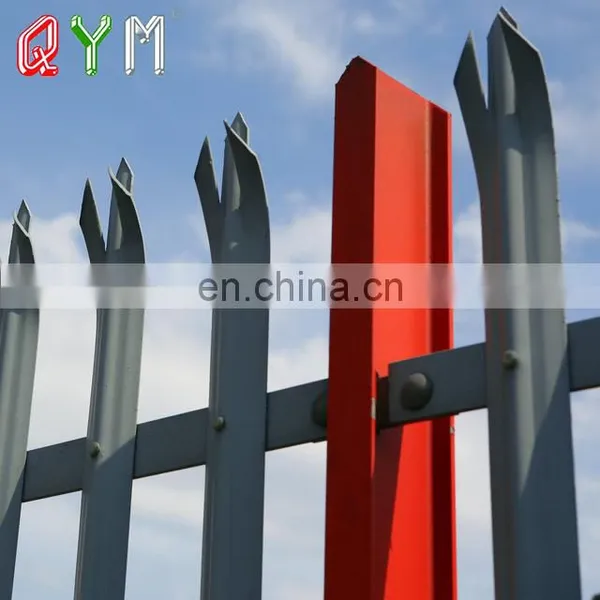

W D Pale Security Powder Coated Palisade Fence Panel photo-4

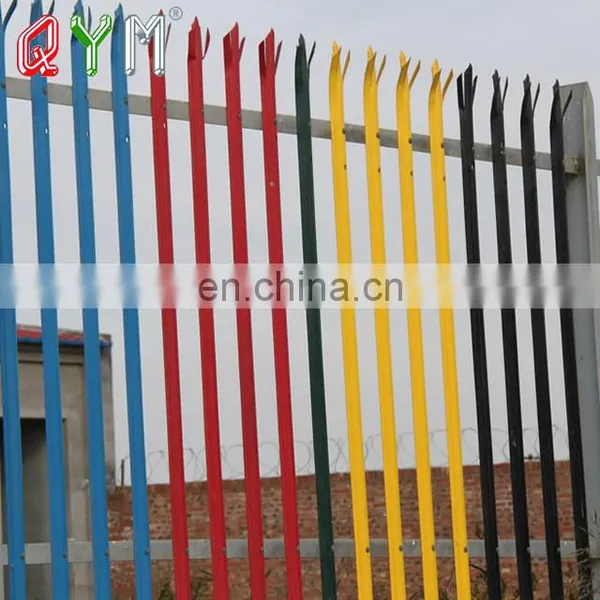

W D Pale Security Powder Coated Palisade Fence Panel photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2004
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Hebei Qianye Metal Product Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
QYM-Palisade fence

It is widely accepted as the industry leader to protect and deter general attack from all types and conditions of intrusion. Palisade fence is constructed using a post, rail and paling system. The security level of the fence can be increased by increasing the height of the fence, adding the pale numbers of each panel or increasing the thickness of the pale. The pales are made from hot formed and cold rolled steel belt,These belt offer both strength and rigidity combined with a long life span.
QYM-Palisade normally produce three types of pales, "W" ,"D" profiles and angle iron .
Width
Thickness
Surface Treatment
Head
Height
68mm
-
70mm
2.0mm
2.5mm
3.0mm
Galvanized and
Electrostatic polyester powder coated or hot dipped galvanized
Single point
Triple point
1200mm
1500mm
1800mm
2000mm
2100mm
2400mm
2700mm
3000mm
Its cost is similar with "D" profile ,and more simple than "D" profile.
Width
Thickness
Surface Treatment
Head
Height
68mm
-
70mm
2.0mm
2.5mm
3.0mm
Galvanized and
Electrostatic polyester powder coated or hot dipped galvanized
Single point
Triple point
1200mm
1500mm
1800mm
2000mm
2100mm
2400mm
2700mm
3000mm
Width
Thickness
Surface Treatment
Head
Height
40x40
2.0mm
-
3.0mm
Galvanized and
Electrostatic polyester powder coated or hot dipped galvanized
Single point
1200mm
1500mm
1800mm
2000mm
2100mm
2400mm
2700mm
3000mm
As a connection pipe for the fence panels ,IPE type is the most using way.
Width
Thickness
Surface Treatment
Head
Height
40x40
2.0mm
-
3.0mm
Galvanized and
Electrostatic polyester powder coated or hot dipped galvanized
Single point
1200mm
1500mm
1800mm
2000mm
2100mm
2400mm
2700mm
3000mm
Variations  for post

In addition to the standard posts many variations are available to accommodate site requirements: • wall fixing plates, cranked posts or base plated • with cranked or straight extensions for barbed or razor wire • cranked panels
For Connection of the pales and IPE post,and make the fence as whole panel.
Size
Thickness
Surface Treatment
Holes
Length
50x50
40x40
5.0mm
6.0mm
Galvanized and
Electrostatic polyester powder coated or hot dipped galvanized
With19 holes drilled on one edge side
2710mm
*Electricity Providers and Regional Networks *Water Industry *Telecoms Industry *Police and Law enforcement *Railway Line/Track Protection *Motorways and Highway Protection *Channel tunnel and European Transport networks *Schools, Colleges & Universities *Research Laboratories
Product Features

1.High security.
2.Most stronge design. 3.10-Year limited warranty 4.Galvanized steel components 5.Suitable to all kinds of surrounding 6.Panels mounted inside post 7.Durable polyester powder coating finish
Hebei Qianye Metal Product Co.,Ltd is a company engaged in production and exportation of defense barrier,metal fence as well as other metal products.Its registered capital is RMB50,100,000(about USD7,400,000),covering a land area of 30,000 square meters. Since its foundation in 2002,this company has been always adhering to the principle of uncompromising integrity and credibility first in doing things.Through years of production experience,we deeply understand that the qualified product is the factory basis for survival and development.In order to ensure consistency of product quality,our company introduced a fully automatic mesh panel welding equipment,automatic electrostatic spraying production line.as well as advanced welding machines,cutting machines,punching machines and bending machines.
HR is the assurance and competitive strength of the company’s long lasting progress and development.In order to create a wolf team,the company attaches great importance to personnel training and appointment of staff,and we provide abroad platform for our staff to display their own capability! We have first-class product design department responsible for product at each production process and first-class one-to-one sales staff to provide you with efficient services. Hope we can have chance to get a be successful future!
Q: What's QYM's after service policy? A: QYM's after service staff will contact you when you received the products, and ask for your comments on the products. Any issues on QYM's products, please send email or call us. QYM will service you timely with whole-heartedness and profession.
Q: What's the MOQ of QYM's product?
A: Different item has different MOQ. Normally 1X20FCL is preferred, LCL could be negotiable. Q: How can we get the quotation from QYM? A: Please send your inquiry to QYM's official email.
Q: How to be QYM's agent, wholeseller or distributor in my country?
 A: Please send your company's basic information and application to my email adress. A feedback will be sent to you within 7 working days.
We making our own Brand QYM and has been exporting the Defence Barrier,Airport Fence,High Security Fence,Palisade Fence and other high grade protective fences to over 100 countries and regions in Europe,America,Africa,Middle East and Australia.From 2015 to 2019, our export of more than one million sets made us an apparent leader in the local barrier industry;and in 2009,we successfully took and completed the orders of concertina razor coils from UN,which perfectly proved our good reputation and our strong production capability.
