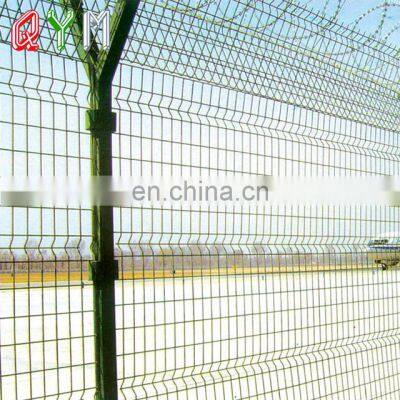

Y Post Welded Mesh Fence Panel Airport Perimeter Fence
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2004
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bto-22 Razor Wire Welded Mesh Airport Safety FenceNegotiableMOQ: 1 -
Welded Airport Mesh Fence Security Airport Perimeter FenceNegotiableMOQ: 1
-
Concertina Razor Airport Fence Prison FenceNegotiableMOQ: 1
-
Barded Wire Welded Wire Mesh Prison Airport FenceNegotiableMOQ: 1
-
Powder Coating Welded Mesh Fence Concertina Razor Airpot FenceNegotiableMOQ: 1

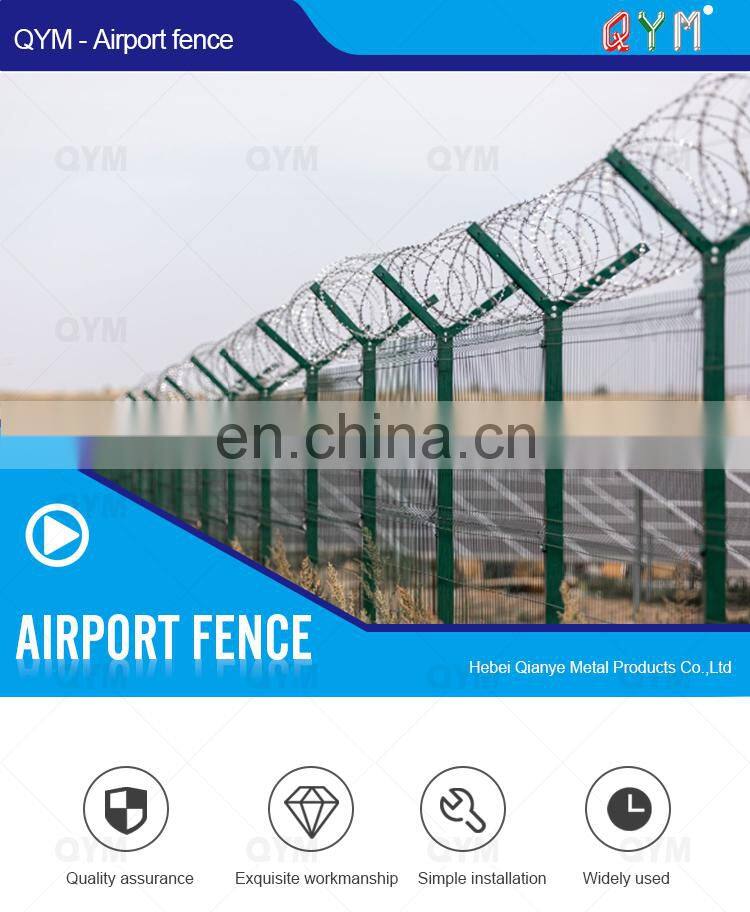

QYM-Airport fence

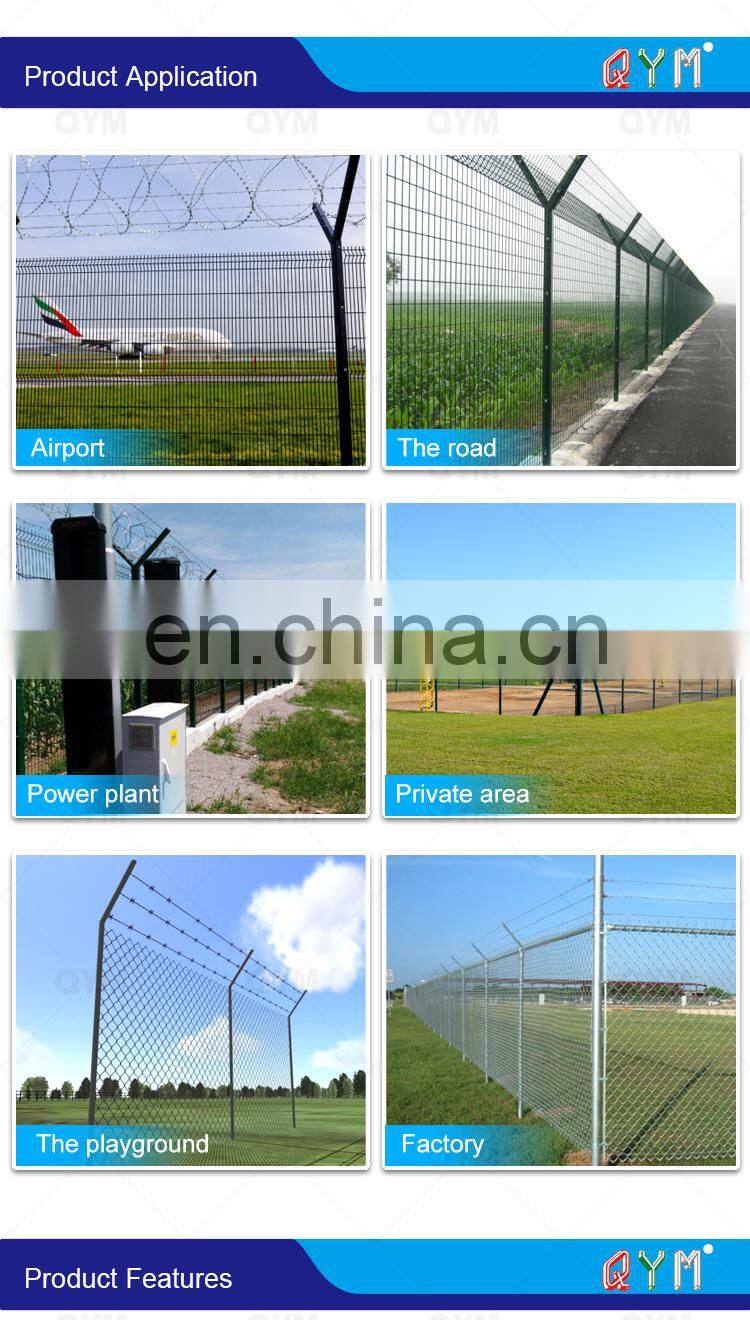

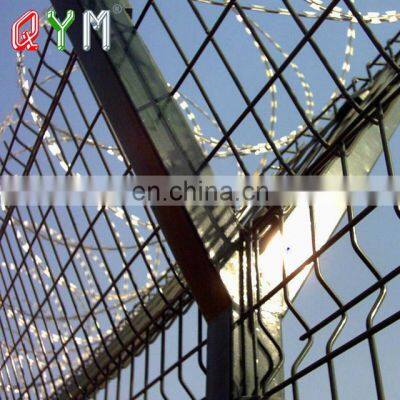

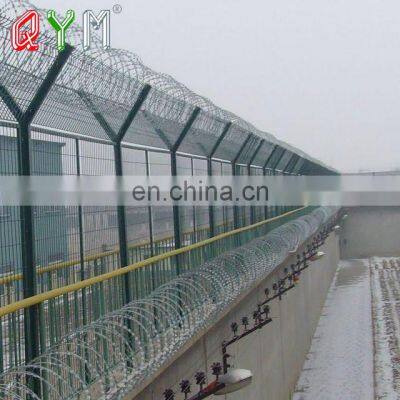

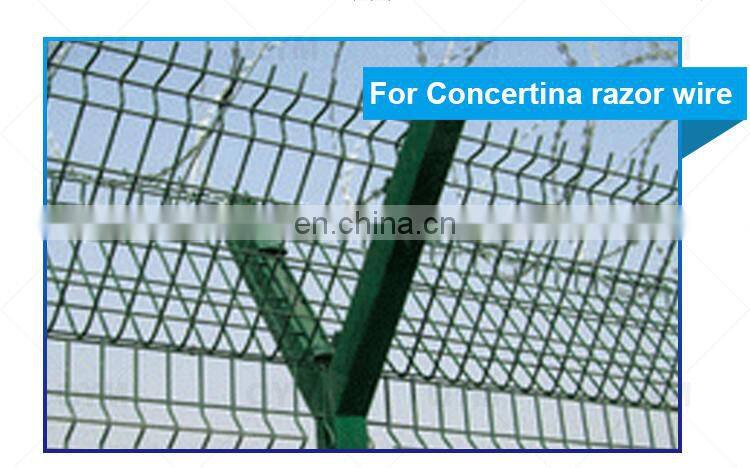

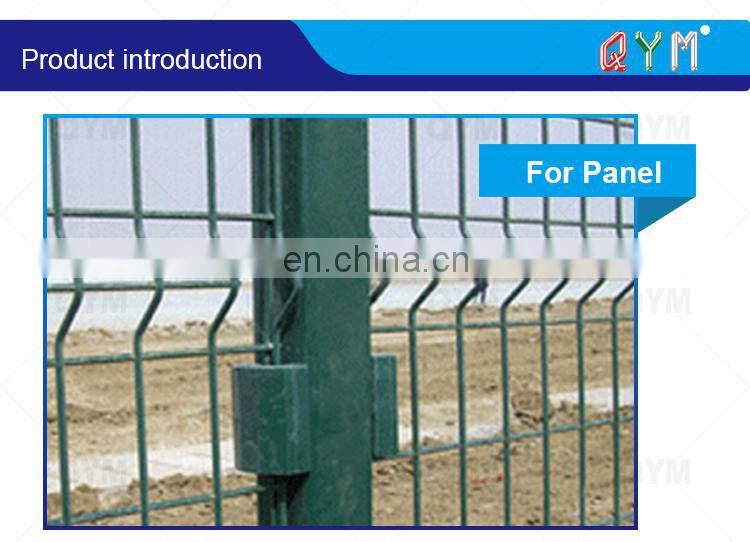

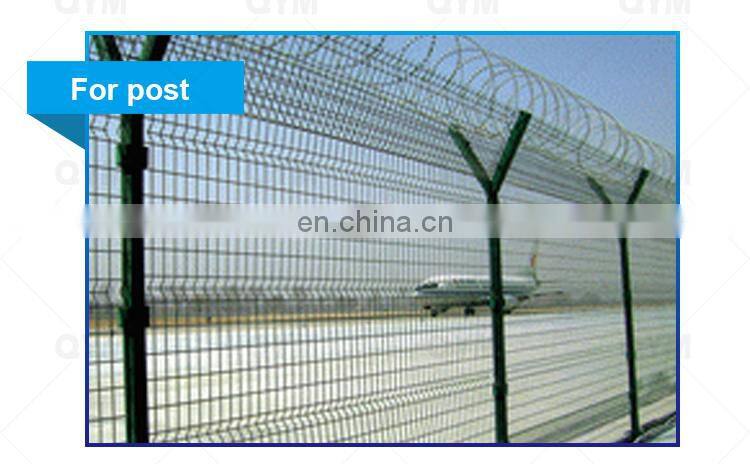

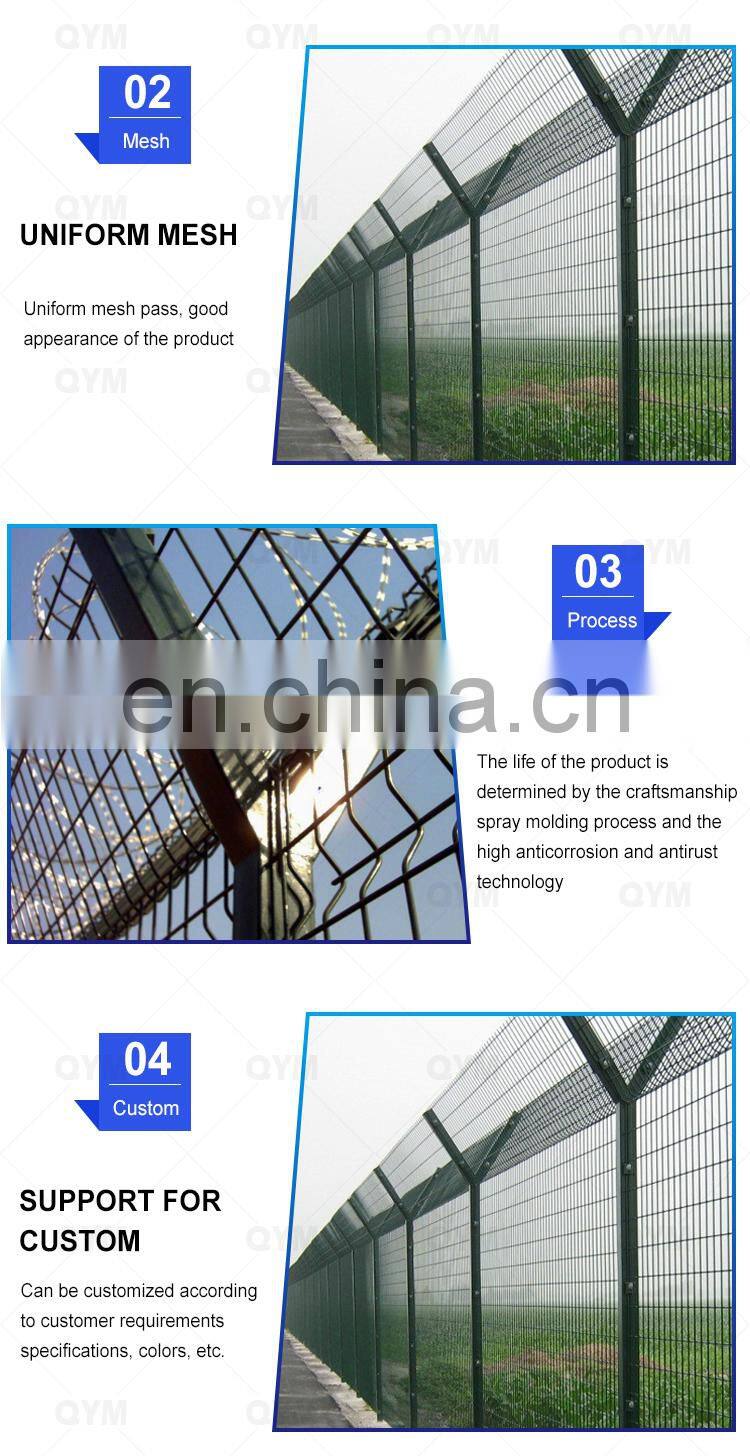

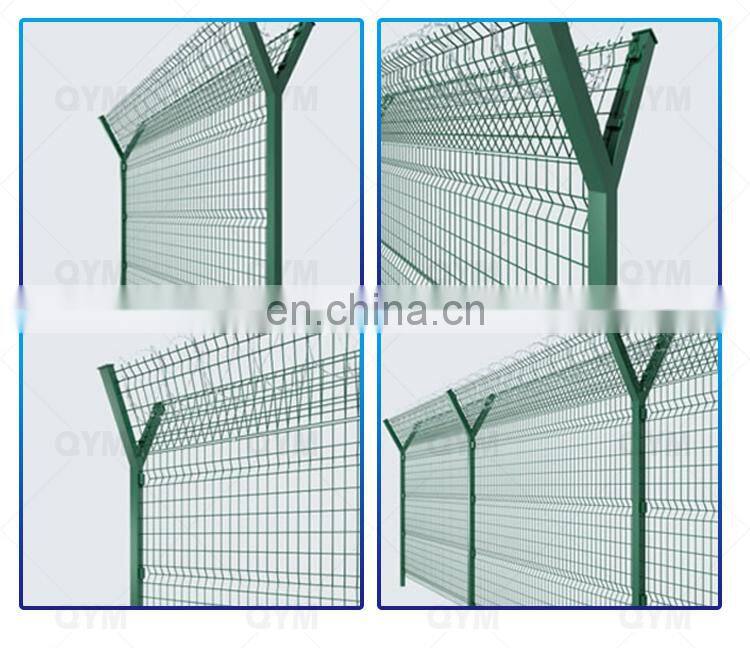

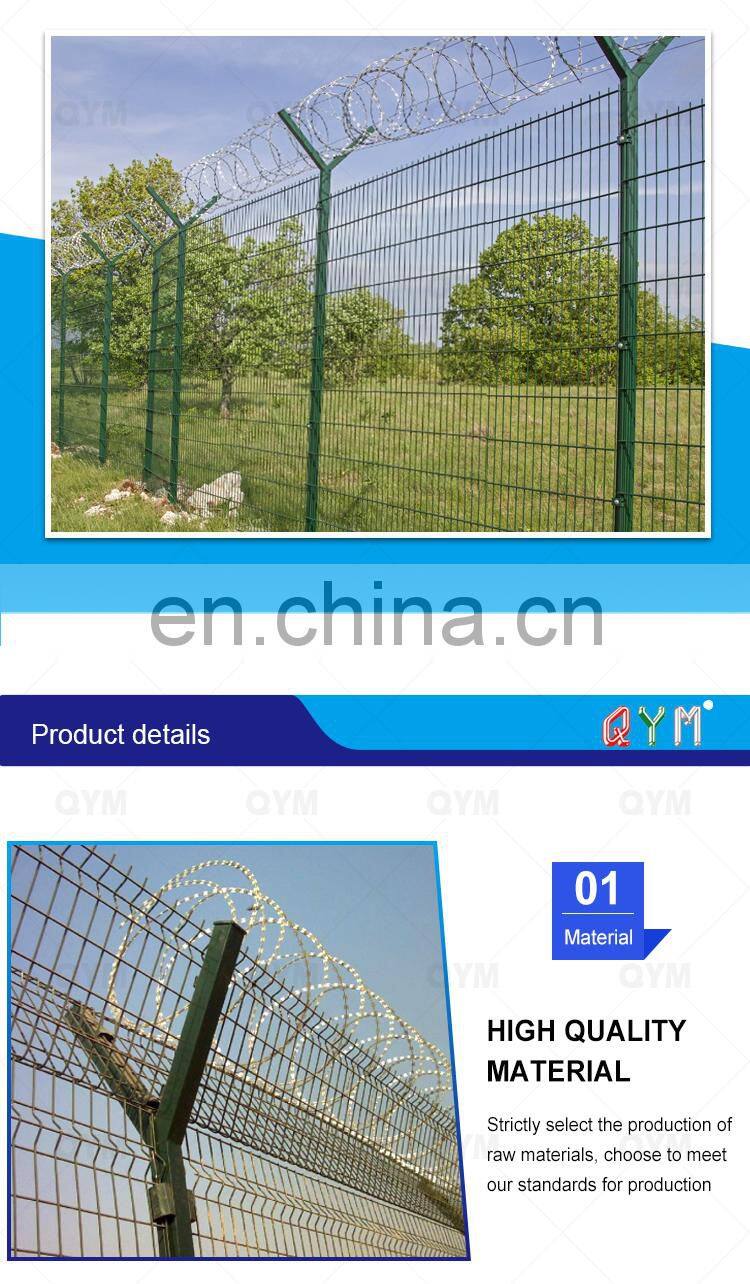

QYM-Airport fence, by definition is mainly used in the airport as a protective fence.The net body is welded with 4.0/5.0 mm low carbon steel wire, the surface will be electrostatic polyester powder coated or PVC coated after electro-galvanized. 60 mm Y shaped square pipe will be put at 2.5m intervals for the connection of the mesh.Concertina wire will be put at the top of the fence to make the fence more securer.
QYM Airport fence,the net body is welded with 4.0/5.0 mm low carbon steel wire , the surface will be electrostatic polyester powder coated or PVC coated after electro-galvanized.

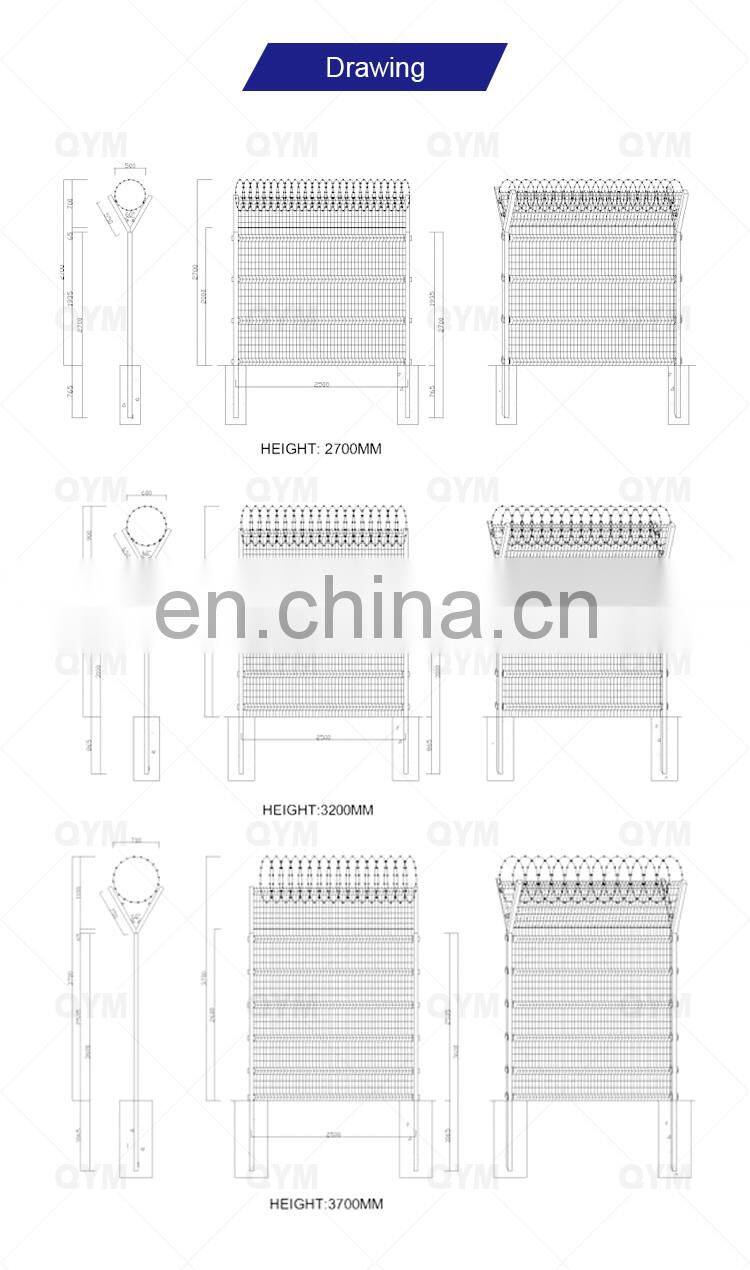

Height |
2.03m, 2.33m, 2.63m. |
||||||
Width |
2.0m, 2.5m. |
||||||
Wire thickness |
4.0mm, 4.5mm, 5.0mm |
||||||
Spacing between horizontal wire |
100mm, 150mm. |
||||||
Spacing between vertical wire |
50mm, 55mm. |
||||||
Reforced folds |
100mm. |
||||||
Finishing |
Glavnized and electrostatic polyester powder coating |
||||||
post |
Square post |
||||||
Size |
60mmx60mm |
||||||
Thickness |
2.0mm, 2.5mm, 3.0mm |
||||||
Height |
3.2m, 3.7, 4.3m |
||||||
Finishing |
Glavnized and electrostatic polyester powder coating |
||||||
Type |
Core wire /Blade thickness |
Surface Treatment |
Length |
Out side diameter |

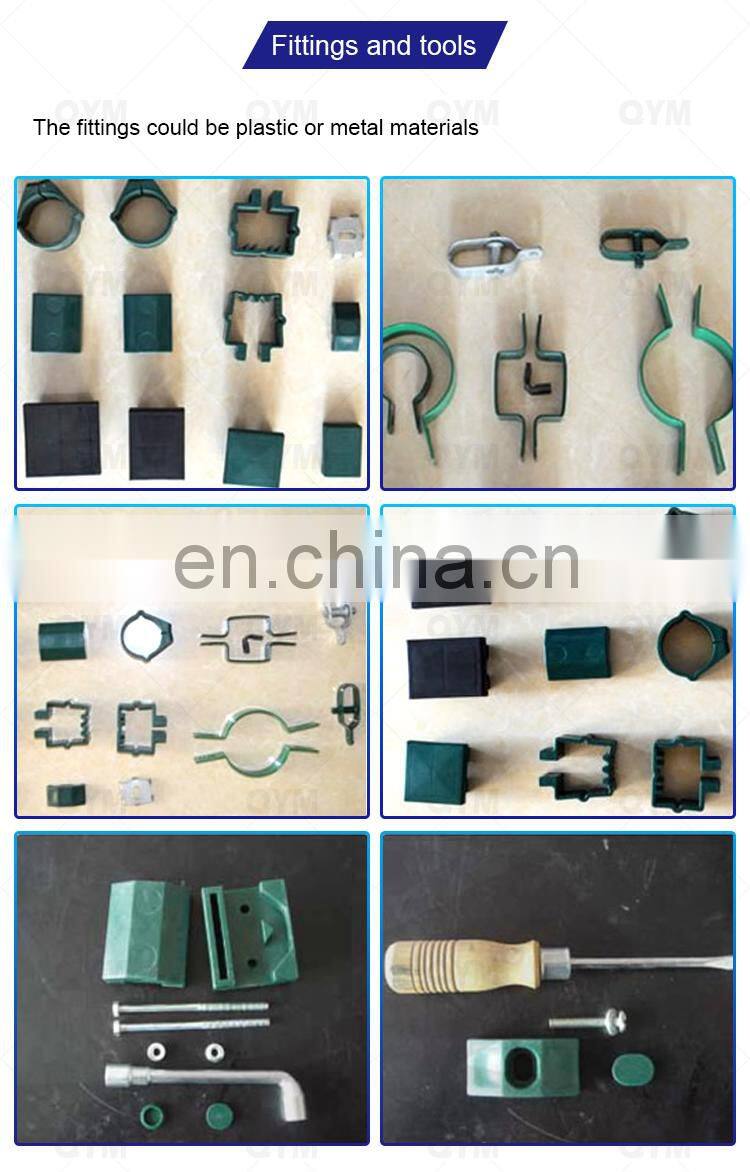

Clips |
BTO-22 |
2.5/0.5mm |
Hot dipped galvanized |
8-10m/roll |
500mm |
3 lines |
600mm |
|||||
700mm |
1.High security.
2.10-Year limited warranty
3.Galvanized steel components
4.Suitable to all kinds of surrounding
5.Panels mounted inside post
6.Durable polyester powder coating finish
Hebei Qianye Metal Product Co.,Ltd is a company engaged in production and exportation of defense barrier,metal fence as well as other metal products.Its registered capital is RMB50,100,000(about USD7,400,000),covering a land area of 30,000 square meters.

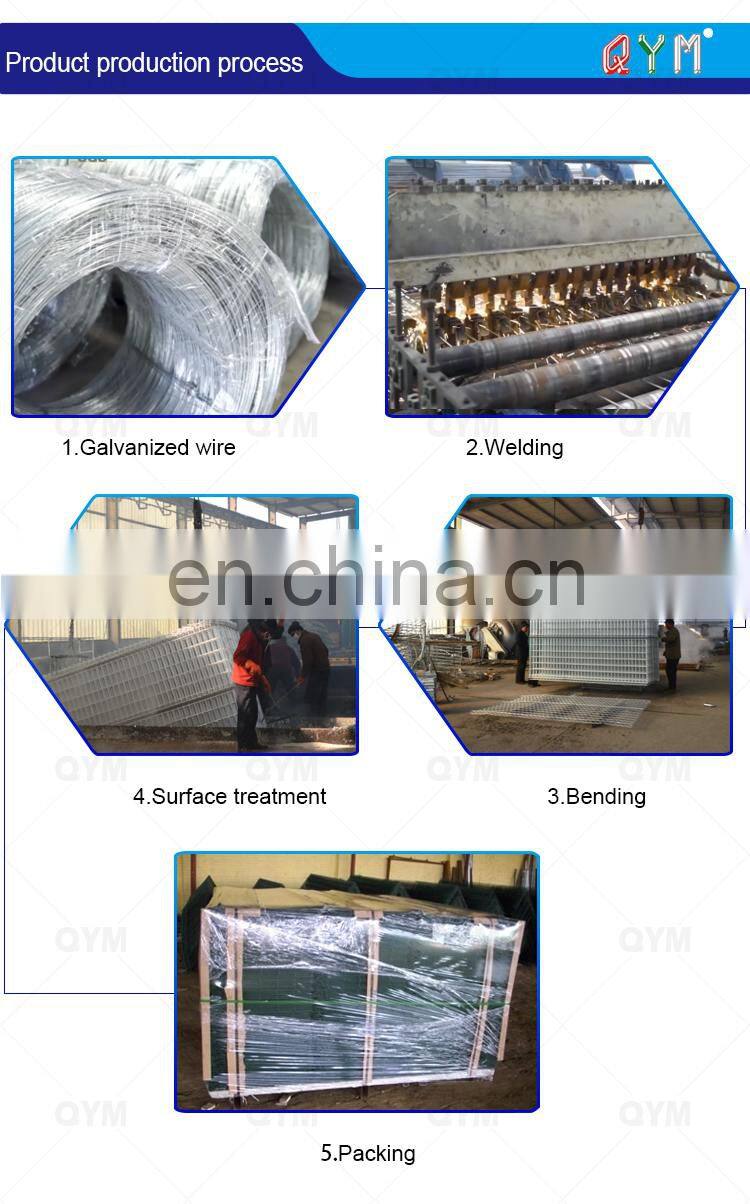

Since its foundation in 2002,this company has been always adhering to the principle of uncompromising integrity and credibility first in doing things.Through years of production experience,we deeply understand that the qualified product is the factory basis for survival and development.In order to ensure consistency of product quality,our company introduced a fully automatic mesh panel welding equipment,automatic electrostatic spraying production line.as well as advanced welding machines,cutting machines,punching machines and bending machines.
HR is the assurance and competitive strength of the company’s long lasting progress and development.In order to create a wolf team,the company attaches great importance to personnel training and appointment of staff,and we provide abroad platform for our staff to display their own capability! We have first-class product design department responsible for product at each production process and first-class one-to-one sales staff to provide you with efficient services.
Hope we can have chance to get a be successful future!
Q: What's QYM's after service policy?
A: QYM's after service staff will contact you when you received the products, and ask for your comments on the products. Any issues on QYM's products, please send email or call us. QYM will service you timely with whole-heartedness and profession.
Q: What's the MOQ of QYM's product?
A: Different item has different MOQ. Normally 1X20FCL is preferred, LCL could be negotiable. Q: How can we get the quotation from QYM? A: Please send your inquiry to QYM's official email.
Q: How to be QYM's agent, wholeseller or distributor in my country?
A: Please send your company's basic information and application to my email adress. A feedback will be sent to you within 7 working days.
Q: What's the MOQ of QYM's product?
A: Different item has different MOQ. Normally 1X20FCL is preferred, LCL could be negotiable. Q: How can we get the quotation from QYM? A: Please send your inquiry to QYM's official email.
Q: How to be QYM's agent, wholeseller or distributor in my country?
A: Please send your company's basic information and application to my email adress. A feedback will be sent to you within 7 working days.
We making our own Brand QYM and has been exporting the Defence Barrier,Airport Fence,High Security Fence,Palisade Fence and other high grade protective fences to over 100 countries and regions in Europe,America,Africa,Middle East and Australia.From 2015 to 2019, our export of more than one million sets made us an apparent leader in the local barrier industry;and in 2009,we successfully took and completed the orders of concertina razor coils from UN,which perfectly proved our good reputation and our strong production capability.
