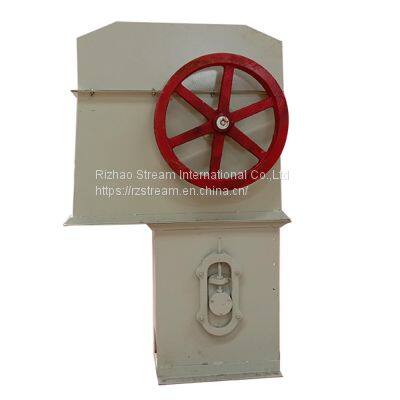

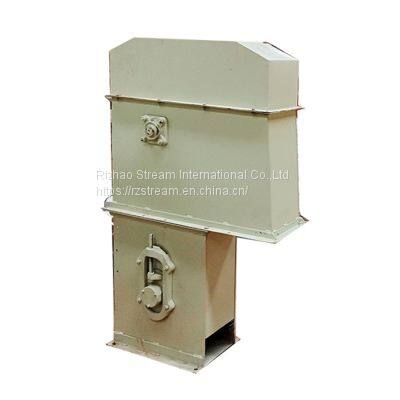

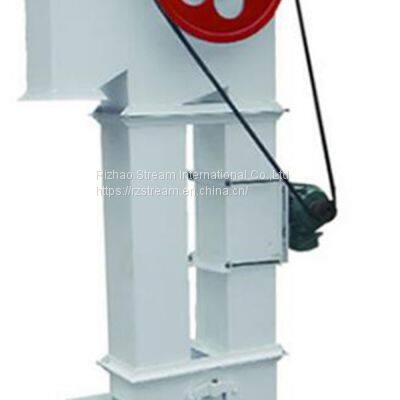

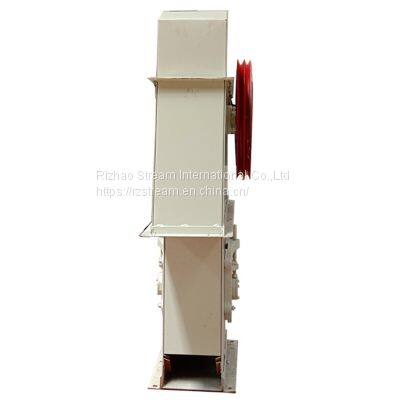

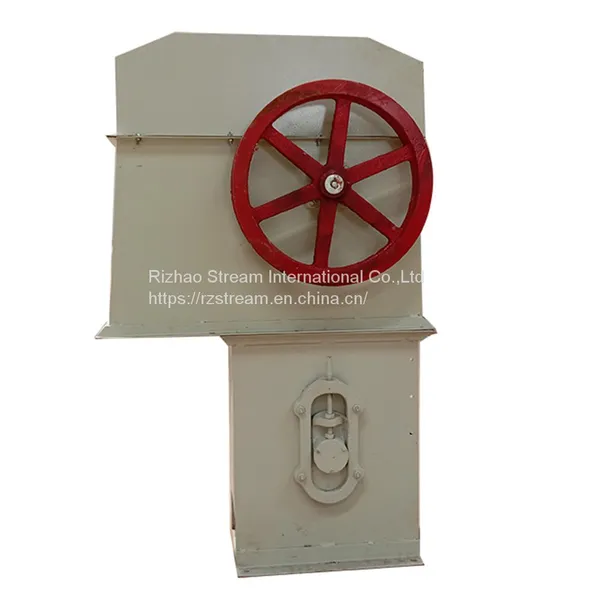

Help CenterDT Series Industrial Continuous Vertical Grain Bucket Elevator Rice Mill Bucket Elevator
Related Products
-
High Performance Easy Install Maize/wheat/corn/rice Grain Steel Storage SiloUS$ 50000 - 100000MOQ: 1 Set -
Small Portable Steel Metal Grain Bin Grain Silo for SaleUS$ 10000 - 30000MOQ: 1 Set
-
Mechanical Rice Paddy Dryer Machine Batch Grain DryerUS$ 30000 - 50000MOQ: 1 Set
-
Rice Paddy Parboiling and Drying Machine Rice Mill PlantUS$ 100000 - 1000000MOQ: 1 Set
-
500~1000 kg Ctnm15 3 in 1 Mini Rice Mill With Distoner All in One Combine MachineUS$ 7000 - 13000MOQ: 1 Set
Product Usage
DT series middle speed bucket elevator is widely used for vertically lifting granular material (density is not more than 2 t/m3) in grain storage, rice mill, flour mill, fodder processing factory. The machine is featured with small volume, high capacity, power saving and stable operation. It's mainly used for paddy lifting in rice mill plant.
Product Features
1.Small installation space,large capacity, high lifting height
2. Total enclosed structure with good sealing,no dust leak out.
3. Materials are fed into the bucket evenly ;
4. The height of elevator is customized according to real condition;
5. The bucket tension can be adjusted easily;
6. Less back-flow.
Main Technical Parameters
Type |
Capacity (t/h) |
Power (Kw) |
Notes |
Weight(kg) |
DT4 |
3.5~4.5 (t/h) |
0.75 |
Plastic Bucket |
230 |
DT6 |
5~6 (t/h) |
1.1 |
Plastic Bucket |
260 |
DT8 |
7~8 (t/h) |
2.2 |
Plastic Bucket |
350 |
DT15 |
12~16 (t/h) |
3 |
Plastic Bucket |
Working principle
The driving device drives the pulley to make the belt with plastic buckets do circular movement from head to tail.There is feeding inlet at tail and discharging outlet at head.Thus materials are fed from the bottom and discharged from the top.
The bucket filled with material goes to the head section, then the material is thrown out from the outlet under the action of centrifugal force.The empty bucket goes back to the tail section and filled with material at the inlet again,then lifted up to head section and do parabolic discharge movement for discharging. The cycle realizes the vertical transportation of materials.
