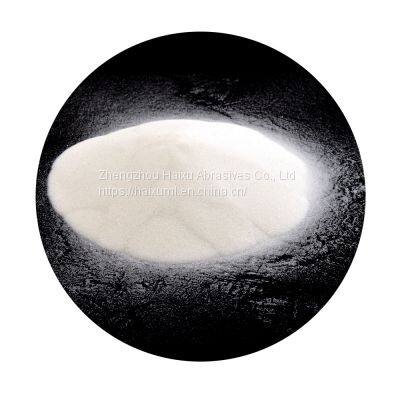

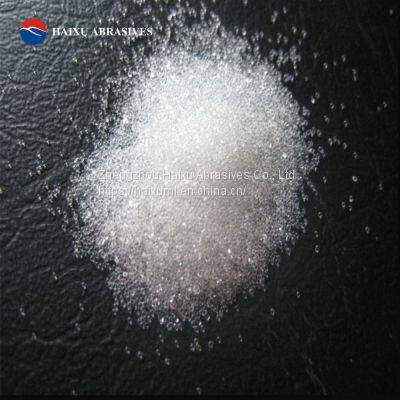

Bead blasting media micro glass beads GB NO.13
Glass beads blasting media from HAIXU Abrasive was made from glass sand crushed by glass blocks and plate glass, fused by high temperature in the electric furnace.
Long bead life Glass beads blasting media HAIXU Abrasive can be safe compared to other blast media. In particular, glass bead blast media can be a good alternative to silica sand depending on your application, which while silica sand is still legal it is becoming more regulated and is recognized as a source of a variety of health problems including silicosis.
Technical datasheet:
| TYPICAL CHEMICAL ANALYSIS | TYPICAL PHYSICAL PROPERTIES | ||
| SiO2 | 71.0% | Hardness: | Mohs:6-7 HRC:46 |
| NaO2 | 14.0% | Specific Gravity: | 2.5 g/cm3 |
| Fe2O3 | 0.1% | Bulk density(LPD): | 1.6 g/cm3 |
| Al2O3 | 2.0% | Refractive Index(RI) | ≥1.5 |
| MgO | 4.0% | Round rate | ≥80.0% |
| CaO | 7.0% | Magnetic content | Black |
| Magnetic content | ≤0.1% | Particle appearance: | colorless ,glass transparent without impurities,Round and smooth |
| Others | 0.016 | ||
Specification for sandblasting:
| GB NO. | Mesh(U.S. standard) | BEAD SIZE RANGE (Dia. um) | BEAD SIZE RANGE (Dia. Inch) |
| GB NO.3 | 20-30 | 850-600 | 0.0331-0.0234 |
| GB NO.4 | 30-40 | 600-425 | 0.0234-0.0165 |
| GB NO.5 | 40-50 | 425-300 | 0.0165-0.0117 |
| GB NO.6 | 50-70 | 300-212 | 0.0177-0.0083 |
| GB NO.7 | 60-80 | 250-180 | 0.0098-0.0070 |
| GB NO.8 | 70-100 | 212-150 | 0.0083-0.0059 |
| GB NO.9 | 80-120 | 180-125 | 0.0070-0.0049 |
| GB NO.10 | 100-170 | 150-90 | 0.0059-0.0035 |
| GB NO.11 | 120-200 | 125-75 | 0.0049-0.0029 |
| GB NO.12 | 140-230 | 106-63 | 0.0041-0.0025 |
| GB NO.13 | 170-325 | 90-45 | 0.0035-0.0017 |
Related application:
Long bead life Glass beads blasting media from HAIXU Abrasive is the common uses for glass bead blasting. Glass bead blasting is well suited for use in sandblasting cabinets where blast media will be recovered. It is effective at cleaning a surface without leaving much of a blast profile. This makes it ideal for cleaning paint or coatings off a part as well as the removal of rust. If a profile is needed though blast media like steel grit or aluminum oxide can be required as glass bead typically doesn’t profile when blasting.
We are a manufacturer, which can control the cost easier than trade company also can give you answer more quickly.
As a manufacturer, we know much in technique and can give you more support in technique problem
Professional and experienced service team, specialized in abrasive production, more than 10 years.
Our products are complete in specifications with various of sizes
We enjoys a good reputation in the customers in domestic and overseas markets.
Large production capacity, short lead time of products.
24*7 online service.
