Help CenterYY PVC Insulated PVC Sheathed Control Cable
Related Products
JENUINcable is a China cable manufacturer with more than 20 years of experience in designing, manufacturing, and selling green environmental–protective wires and cables. Our main products are building wire, electric wire, power cable, control cable, flexible cable, screen cable, armored cable, LSZH cable, ABC cable, Aluminum strand cable, ACSR and fire-resistant cable.

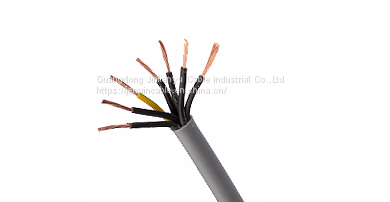

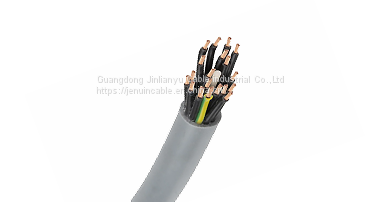

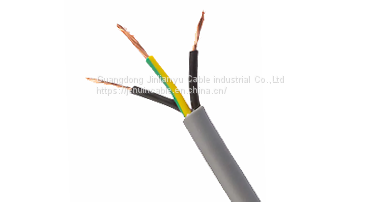

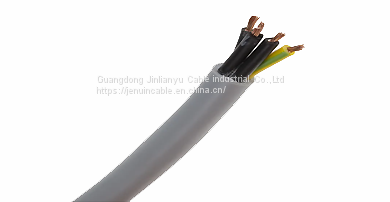

YY PVC insulated and sheathed control cable, known as YY cable or YY control cable, features flexible conductor and non-screen single core or multifull cores cables for power and signal transmission. YY flex control cable is widely used in engineering, plant installations, vehicle manufacturing, bottling plants and many other fields. It is used indoors in dry and moist situations. Provided protected from sunlight or some other mechanical damage, YY control cable could be used outdoor.
YY flexible cable is not suitable to fixed applications where required compliance with other equipment.
5 core yy cable for Sale on . RFQ right now!
YY PVC Insulated PVC Sheathed Control Cable Parameter
Nominal Cross Sectional Area of Conductor (mm²) |
Nominal Stranding of Conductor (mm) |
Nominal Radial Thickness of insulation (mm) |
Nominal Radial Thickness of sheath (mm) |
Approximate Overall Diameter Lower Limit (mm) |
Approximate Overall Diameter Upper Limit (mm) |
Approximate Weight (kg/km) |
2x0.75 |
24/0.2 |
0.5 |
0.6 |
4.8 |
6.8 |
49 |
2x1.0 |
32/0.2 |
0.5 |
0.6 |
5.2 |
7.2 |
58 |
2x1.5 |
30/0.25 |
0.5 |
0.6 |
5.8 |
7.8 |
72 |
2x2.5 |
50/0.25 |
0.5 |
0.6 |
6.6 |
8.6 |
99 |
3x0.5 |
16/0.2 |
0.5 |
0.6 |
4.7 |
6.7 |
48 |
3x0.75 |
24/0.2 |
0.5 |
0.6 |
5.2 |
7.2 |
59 |
3x1.0 |
32/0.2 |
0.5 |
0.6 |
5.6 |
7.6 |
70 |
3x1.5 |
30/0.25 |
0.5 |
0.6 |
6.2 |
8.2 |
89 |
3x2.5 |
50/0.25 |
0.5 |
0.6 |
7.0 |
9.0 |
125 |
3x4.0 |
56/0.3 |
0.5 |
0.6 |
8.3 |
10.3 |
185 |
3x6.0 |
84/0.3 |
0.5 |
0.8 |
10.3 |
12.3 |
256 |
3x10.0 |
80/0.4 |
0.6 |
0.8 |
12.6 |
14.6 |
443 |
4x0.5 |
16/0.2 |
0.5 |
0.6 |
5.2 |
7.2 |
58 |
4x0.75 |
24/0.2 |
0.5 |
0.6 |
5.7 |
7.7 |
74 |
4x1.0 |
32/0.2 |
0.5 |
0.6 |
6.2 |
8.2 |
87 |
4x1.5 |
30/0.25 |
0.5 |
0.6 |
6.8 |
8.8 |
111 |
4x2.5 |
50/0.25 |
0.5 |
0.6 |
7.8 |
9.8 |
157 |
4x4.0 |
56/0.3 |
0.5 |
0.6 |
9.3 |
11.3 |
240 |
4x6.0 |
84/0.3 |
0.5 |
0.8 |
11.4 |
13.4 |
326 |
4x10.0 |
80/0.4 |
0.6 |
0.8 |
14.1 |
16.1 |
532 |
4x16.0 |
126/0.4 |
0.6 |
0.8 |
17.7 |
19.7 |
849 |
4x25.0 |
196/0.4 |
0.7 |
0.8 |
20.6 |
22.6 |
1275 |
5x0.5 |
16/0.2 |
0.5 |
0.6 |
5.8 |
7.8 |
63 |
5x0.75 |
24/0.2 |
0.5 |
0.6 |
6.3 |
8.3 |
80 |
5x1.0 |
32/0.2 |
0.5 |
0.6 |
6.8 |
8.8 |
98 |
5x1.5 |
30/0.25 |
0.5 |
0.6 |
7.6 |
9.6 |
127 |
5x2.5 |
50/0.25 |
0.5 |
0.6 |
8.7 |
10.7 |
181 |
5x4.0 |
56/0.3 |
0.5 |
0.6 |
10.3 |
12.3 |
267 |
5x6.0 |
84/0.3 |
0.5 |
0.8 |
12.6 |
14.6 |
373 |
5x10.0 |
80/0.4 |
0.6 |
0.8 |
15.6 |
17.6 |
675 |
5x16.0 |
126/0.4 |
0.6 |
0.8 |
22.1 |
24.1 |
1067 |
Description of YY PVC Insulated PVC Sheathed Control Cable
Plain Annealed Flexible Copper Conductors / PVC / PVC 300/500V
Rated voltage 300/500V
Standard: BS50525-2-11
Conductor: Stranded Copper class5
Insulation: PVC
Sheathing: PVC
Temperature rating: from 0ºC to +70ºC
Application Of YY PVC Insulated PVC Sheathed Control Cable
YY cable is designed to be used in production lines, conveyors and for computer units for measuring, controlling or regulation in control equipment.
Because YY cable has good flexibility, it is widely used for linking fixed and mobile equipment.
The PVC Insulated and Sheathed Flexible Control Cable are known as YY CABLE which following the standard of BS50525-2-11.
YY can be useful in outdoor projects if it is equiped with some protected installation. However it is recommended to use for indoor projects in dry or moist conditions.
If you want to know yy cable price, please contact us.
What is XLPE Cable?
XLPE cable is the cable with XLPE insulation. XLPE refers to the crosslinked polyethylene which adopts the method of peroxide crosslinking and makes polyethylene molecules change from linear molecular structure to three-dimensional mesh structure, from thermoplastic material to thermosetting material, and the working temperature is increased from 70℃ to 90℃, which significantly improves the current carrying capacity of the cable.
What is the advantage of XLPE CABLE?
What's the difference between XLPE insulation and PVC insulation?
XLPE Insulated Cable Standards And Design Solution
1. The Australian standard for XLPE insulated power cable.
AS/NZS 5000.1 refers to the XLPE insulated PVC sheathed cable in Australia and New Zealand market. The cables structure is similar to IEC standard IEC 60502 and China national standard GB/T 12706. They all have the structure of multi-cores with the same size (such as 4 cores XPLE insulated PVC sheathed cables) and multi-cores + earth (such as 3cores+2 earth XLPE insulated power cable).
2. British Standard for XLPE insulated power cable.
BS7889 refers to the XLPE insulated PVC sheathed cable in British standard. The just only have multi-cores with the same size
3. XLPE insulated wire can be designed for different performance.
It can be mounted with steel wire or steel taped armors to increase the mechanic protection and withstand the tensile force. It also can be designed for fire resistance by wrapping the mica glass tape.
If you want to know xlpe cable cost, such as 16mm xlpe cable price, 25mm xlpe cable price, 35mm xlpe cable price, 70mm xlpe cable price, please contact us.
