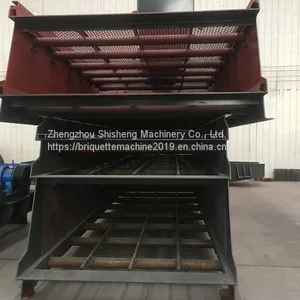

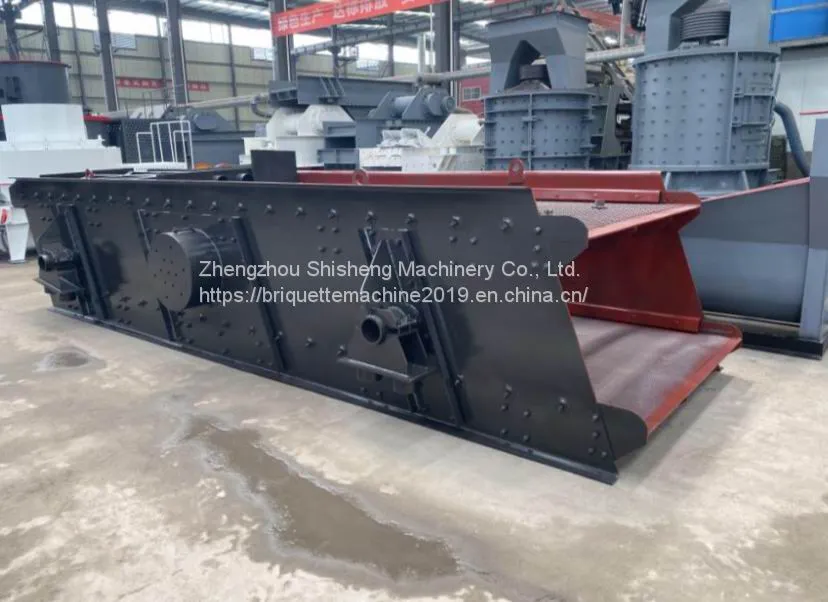

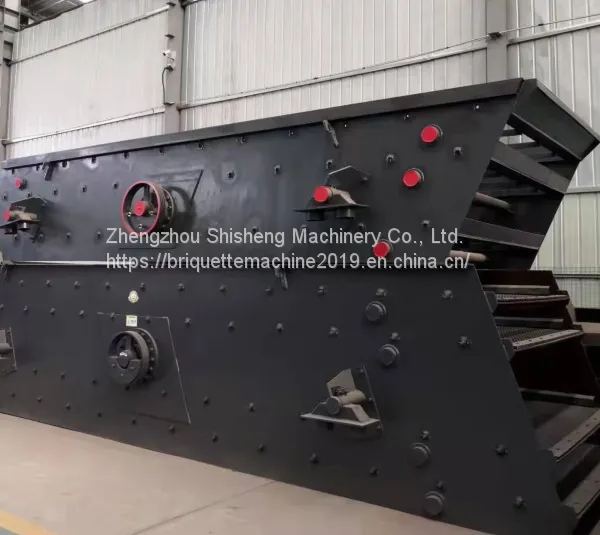

4 Deck Vibrating Screen Cost
4 Deck Vibrating Screen Cost Introduction:
4 Deck Vibrating Screen Cost is a multi-layers circular arc vibrating screening equipment. This machine has long screening area, and can give more different screen size.
The finished size is very clear. In the structure, it gets cylinder vibrator, eccentric shaft and balance weight wheels. It features of reliable structure, strong exciting force, high screening efficiency, low vibrating noise, sturdy and durable, convenient maintenance, safety operation, etc.
So 4 Deck Vibrating Screen Cost is widely used in quarry site for stone screen. In addition, also is in mining, building material, energy, chemical industry material screen. The material range is stone, river pebbles, gold ore, copper ore, granite, basalt, iron ore, limestone, etc.
4 Deck Vibrating Screen Cost Working Principle:
The 4 Deck Vibrating Screen Cost produced mainly consists of a screen box, screen, vibrator, vibration absorber spring device, a chassis and so on.
The vibrator is installed on the side plate of the screen box, and the motor The side plate of the screen machine is made of high quality steel plate, and the side plate is connected with the beam and the base of the exciter With high strength bolts or rivets of ring groove.
The vibrator is mounted on the side plate of the screen box and rotated by the motor through the coupling to produce centrifugal inertia force, forcing the screen to vibrate.
4 Deck Vibrating Screen Cost Structure:
4 Deck Vibrating Screen Cost is composed of basics, front pedestal, platen, sideboard, screen frame, sieve mesh, stand leg, spring, motor and eccentric gear. It has high utilization rate of screen, large unit area, not easy to block, but easy replacement of screen. The high-precision screening reach to 96% or above, is a large processing capacity screen equipment.
Pre-Sales:
Help customers to choose product.
Freely send engineers to the working field to plan the installation site and design the best technical production process.
Design the special product according to the contract.
After-Sales:
Send the engineers to guide the installation.
Install and adjust the equipment for customers.
Train the operator for customers.
We also provide the technical service for our customers after the installation.
Solution for you choose as well as we will give lifetime free technical support and services.
4 Deck Vibrating Screen Cost Technical Parameter:
Model |
Screen Mesh(mm) |
Layers |
Sieve Pore Size(mm) |
Max.Feed Size(mm) |
Capacity |
Power |
Vibrating Frequency |
Double Amplitude(mm) |
(t/h) |
(kw) |
(r/min) |
||||||
2YZS1237 |
1200×3700 |
2 |
4-50 |
200 |
30-100 |
5.5 |
960 |
4-8 |
3YZS1237 |
1200×3700 |
3 |
4-50 |
200 |
30-100 |
7.5 |
960 |
4-8 |
2YZS1548 |
4800×1500 |
2 |
3-100 |
400 |
30-275 |
15 |
870 |
5-9 |
4YZS1860 |
6000*1800 |
4 |
3-80 |
400 |
56-330 |
22 |
970 |
5-9 |
3YZS1548 |
4800×1500 |
3 |
3-100 |
400 |
30-275 |
15 |
870 |
5-9 |
2YZS1848 |
4800×1500 |
2 |
3-100 |
400 |
56-330 |
18.5 |
870 |
5-9 |
3YZS1848 |
4800×1800 |
3 |
3-100 |
400 |
56-330 |
18.5 |
870 |
5-9 |
2YZS1860 |
6000×1800 |
2 |
3-100 |
400 |
65-586 |
22 |
870 |
5-9 |
3YZS1860 |
6000×1800 |
3 |
3-100 |
400 |
65-586 |
22-30 |
870 |
5-9 |
2YZS2160 |
6000×2100 |
2 |
3-100 |
400 |
81-720 |
30 |
730 |
5-9 |
3YZS2160 |
6000×2100 |
3 |
3-100 |
400 |
81-720 |
30-37 |
730 |
5-9 |
2YZS2460 |
6000×2400 |
2 |
3-150 |
400 |
100-810 |
37 |
770 |
5-9 |
4YZS1848 |
4800*1500 |
4 |
3-80 |
400 |
56-330 |
22 |
970 |
5-9 |
