Bottle Breaker

(1) Seaworthy packing as per export container rules, bigger items loose stuff in container and small parts will be tied up in a bundle put into steel boxes or plywood boxes. (2) Delivery will be arranged based on busy or low producing season in our factory, single set machine is normally not more than 40 days, production line is in 2 month. (3) Dispatch experienced engineers to installation & commission, and training;

Bottle Breaker

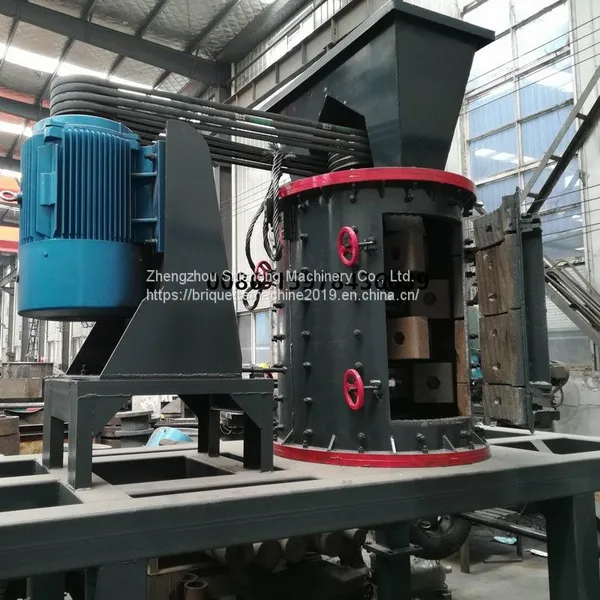

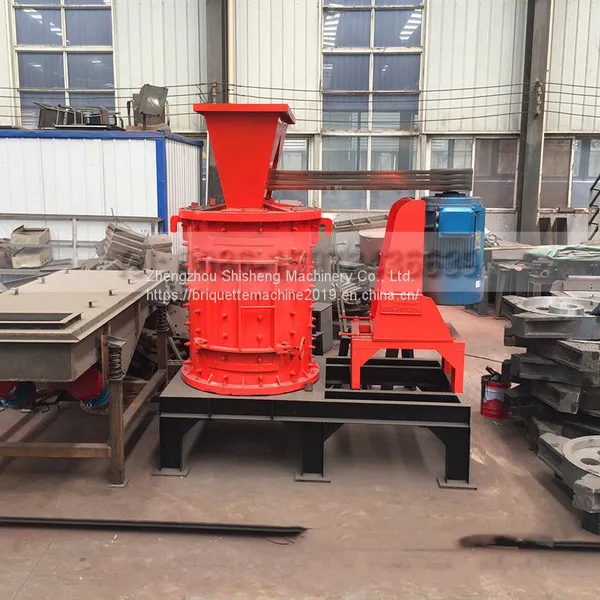

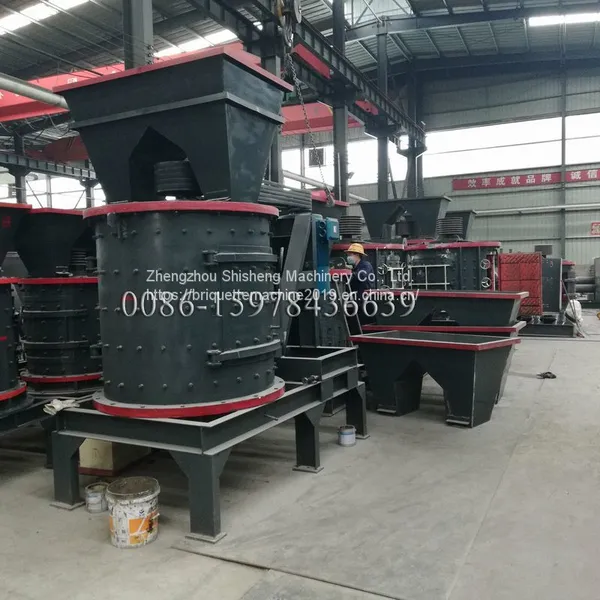

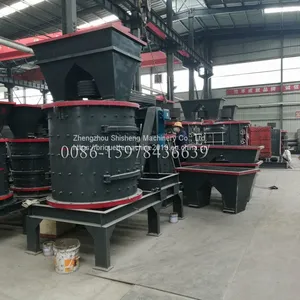

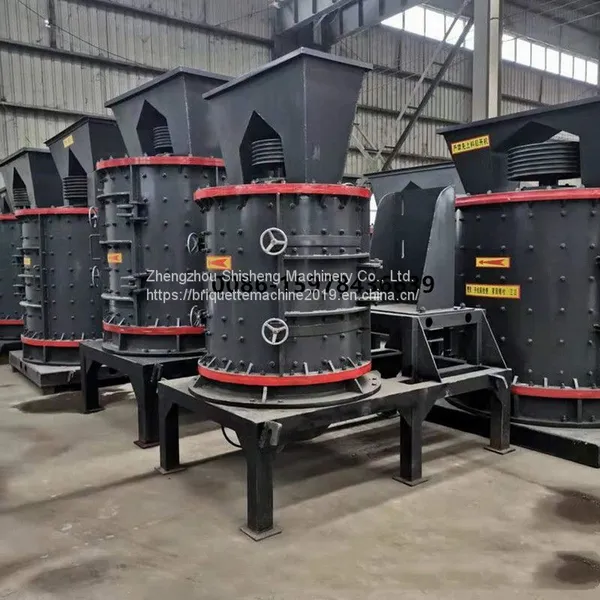

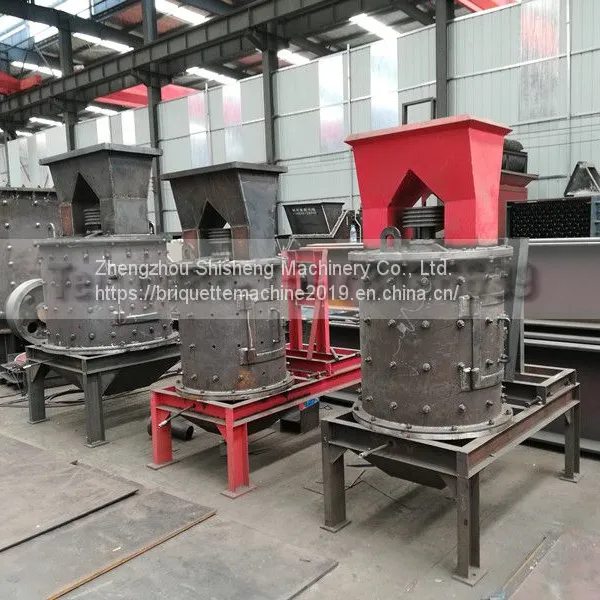

Bottle Breaker Introduction:

(1) PFL Bottle Breaker is a new type of machine based on the PCL vertical compound crusher and gets domestic and overseas fine crushing technology into together.

(2) It owns the advantages of large crushing ratio, 1.4 times higher than other domestic similar machines; high efficiency and energy-saving; the life of the wearing parts increased 2-3 times; adjustable gap between hammer and impact plate, which can satisfy different sizes requirement.

(3) Bottle Breaker is widely used in mining, metallurgy, refractory, cement, coal, glass, ceramics, and electric power industries.

(1) The motor drives the rotor that fixed on the main bearing to run quickly toward certain direction when the machine works. The materials are fallen into the throw-up disc and impacted by the high speed strips of the throw-up disc, and then strikes with the impact board under the effect of Centrifugal Force.

(2) Because the impact board is bevel and the gravitation, the materials are threw to the taper crushing room and impacted by the high-rotating up hammerhead. After gaining sufficient energy, the materials are thrown to the impact board again and action repeats.

(3) The materials strike with each other in the crushing room and then are down to the column-shape rotor room. Then crushed, pressed, and ground and action repeats.

(4) In this way, the materials go through up, middle, and down rotor crushing rooms and crushed, pressed, and ground by the hammers and the impact boards, and finally the materials are gradually crushed into needed sizes and come out.

Bottle Breaker Features:

(1) The machine has special structure in the part of throw-up disc, which can improve the usage of abrasive material and reduce the cost.

(2) The wearing parts are made of anti-abrasion material (metal alloy in high hardness and toughness), so it can endure for long time.

(3) It has the advantage of high crushing ratio, large output, high efficiency, and low consumption.

(4) Bottle Breaker is of easy operation, good performance, low noise, little vibration and good air-proofing, so it is a high efficient and high level fine.

Bottle Breaker Technical Parameter:
