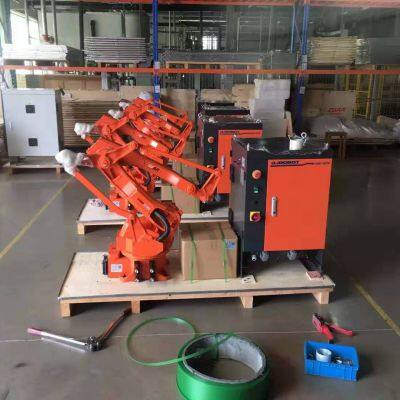

4 Axis Pick and Place Palletizing Robot Arm Automation
We are Suzhou Jinshuorui Intelligent Technology Co., Ltd., an industrial robot supplier in China. We're the exclusive partner for QJAR robot on global market and we're the only team that can sell QJAR robot overseas.
We can supply a wide product range including industrial robots ranging from 3kg to 800kg payload (6-axis robot, 4-axis robot, delta robot, scara robot,explosion-proof robot and other special application robots), welding positioners, robot walking rail, vision system, etc.
Our robots are widely applied in welding, handling, palletizing, polishing, painting, cutting, etc.
The advantages are: super cost-effective, well-knit compact structure, high flexibility, high reliability, high speed, high precision, high expansibility, easy operation, easy maintenance.
high speed robot arm
QJAR Series
EVS Series
Controller Parameters
| Product | Specification |
| Hardware Structure | Intel 4-core |
| System | Real-time Linux operating system |
| Memory | Max to 8G |
| Storage | Support SATA storage |
| Communication Port | USB3.0 (4), 1000M Ethernet(2), EtherCAT(1), DIO(8), HDMI(1), RS232(2) |
| EtherCAT Bus | Communication Cycle 1ms |
| Support max to 32 axes | |
| Support extendable IO | |
| Power Input | DC 12V/3A |
| EMC Class | Industrial level III |
Basic Paremeters of the Electrical Cabinet
| Power Supply | Three-phase 380V±10% |
| Power Capacity | 4.5KW |
| Dimension | 580×600×960mm |
| Temperature | 0~45°C |
| Humidity | 10~90%RH |
| IP Level | IP21 |
| Operating System | QJAR System |
